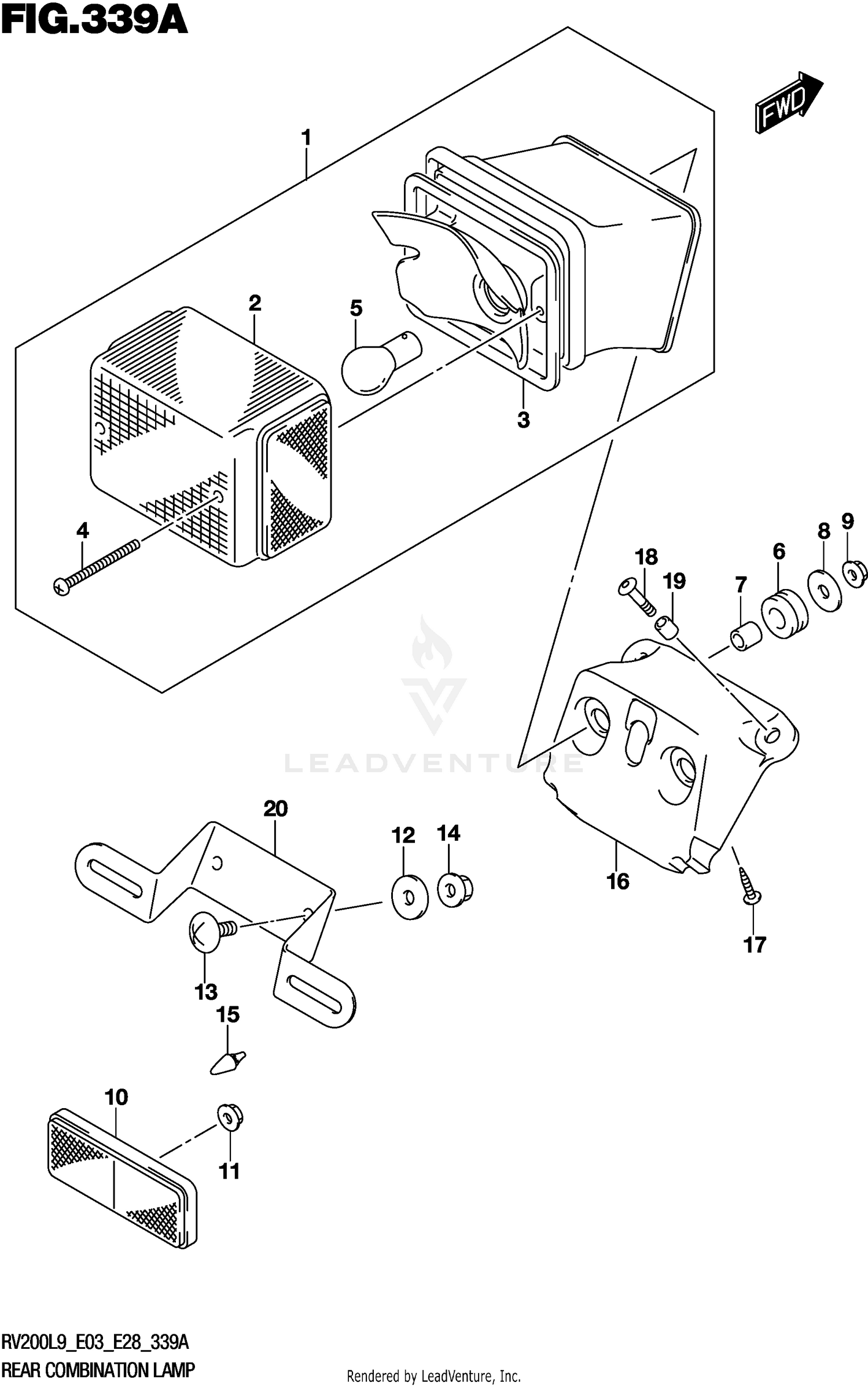

REAR COMBINATION LAMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-29F30 | LAMP ASSY,REAR COMB Price: $143.06 |
| 5 | 09471-12128 | BULB (12V,21/5W) This part replaces 09471-12083. Price: $8.20 |
| 6 | 09320-10501 | CUSHION Price: $6.55 |
| 7 | 09180-06310 | SPACER (6.5X10X10) Price: $2.33 |
| 8 | 09160-06088 | WASHER (6.5X20X1.6) Price: $2.02 |
| 9 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 10 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 11 | 08316-1005B | NUT Price: $3.02 |
| 12 | 09160-06052 | WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079. Price: $1.75 |
| 13 | 02142-0616A | SCREW Price: $1.65 |
| 14 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 15 | 09321-06038 | CUSHION This part replaces 09321-06028. Price: $1.98 |
| 16 | 63251-13G00 | COVER, REAR COMB LAMP Price: $15.32 |
| 17 | 03541-0620B | SCREW Price: Call Us |
| 18 | 09139-06028 | SCREW (6X20) Price: $4.50 |
