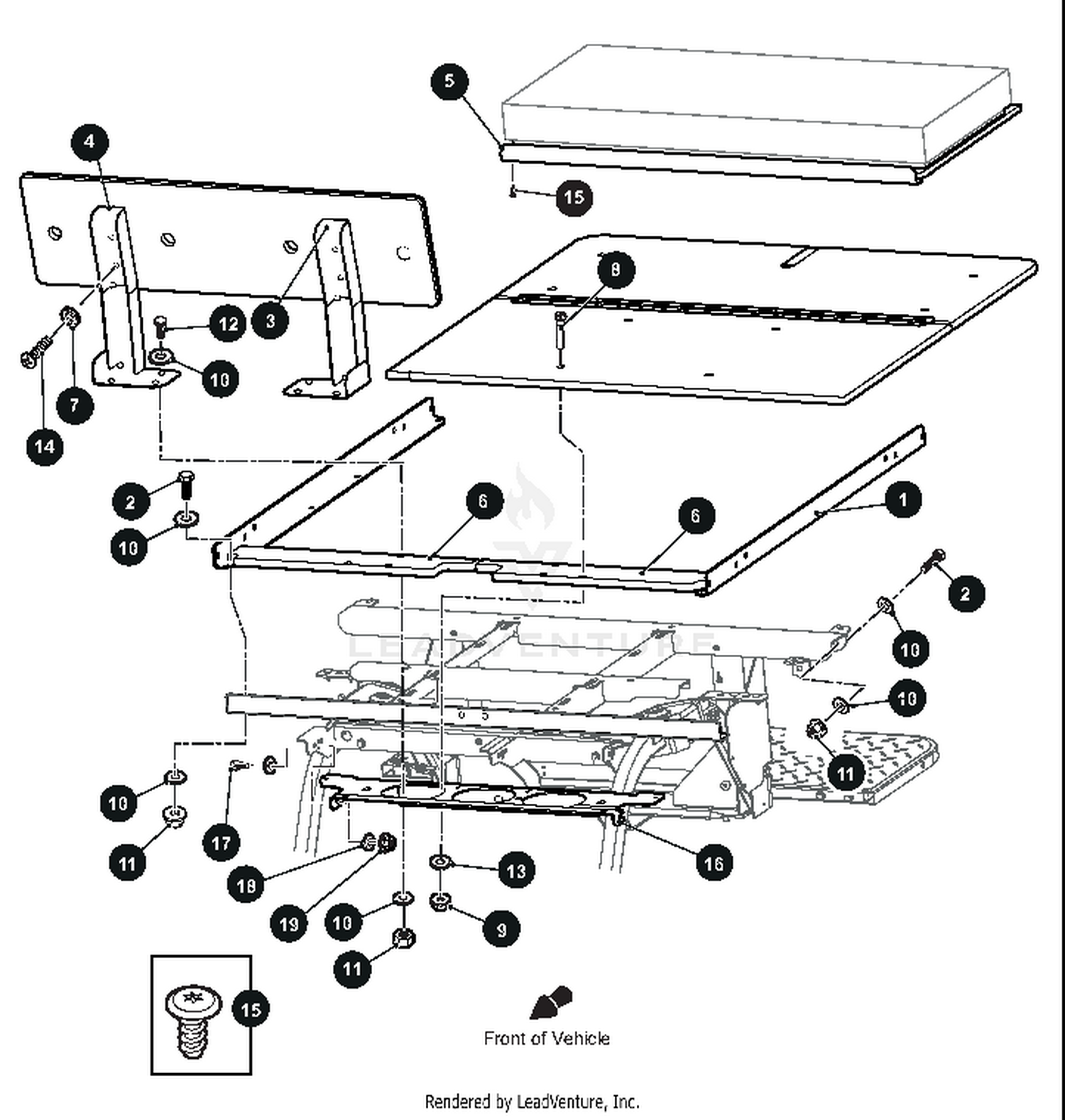

| Ref | Part Number | Description |
|---|
| 1 |
629358 |
WELDMENT,FRAME SEAT Price: $136.99 |
| 2 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 3 |
629050G01 |
BRKT,SEAT BACK,LH Price: $87.29 |
| 4 |
629050G02 |
BRKT,SEAT BACK,RH Price: $99.94 |
| 5 |
629112 |
BRACKET,REINF FLIP SEAT Price: $99.99 |
| 6 |
629275 |
DECKBOARD,FILLER,FLIPSEAT Not Available Price: |
| 7 |
00664G7 |
LOCK WASHER, 0.255" X 0.263" Price: $0.99 |
| 8 |
16705G5 |
SCREW S.S. 1/4-20 X 1 1/2 Price: $5.99 |
| 9 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 10 |
00643G1 |
FLAT WASHER, 3/8 X 1.0 X .063 Price: $0.99 |
| 11 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 12 |
00427G8 |
HEX HEAD BOLT, 3/8"-16 X 2 Price: $5.99 |
| 13 |
01110G01 |
FLAT WASHER, 1/4" Price: $0.99 |
| 14 |
16705G1 |
TRUSS HEAD SCREW, 1/4-20X1 Price: $2.99 |
| 15 |
71425G01 |
TAPPING SCREW, #8-18X 3/4 Price: $2.99 |
| 16 |
71262G04 |
SEAT BACK SUPPORT Price: $109.99 |
| 17 |
00438G8 |
HEX HEAD BOLT, 5/16-18 X 1 Price: $2.99 |
| 18 |
00642G8 |
FLAT WASHER, 5/16" Price: $2.99 |
