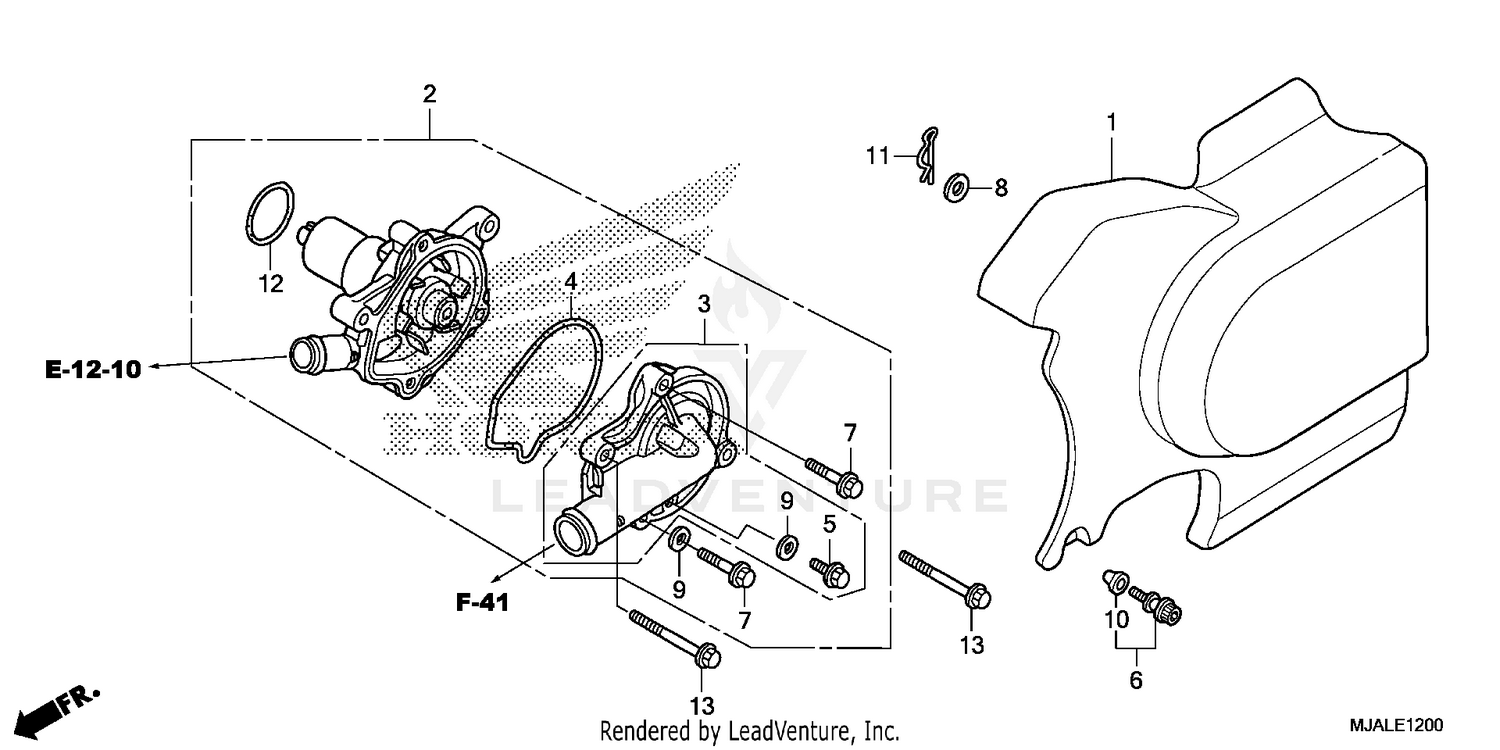

| Ref | Part Number | Description |
|---|
| 1 |
11351-MFE-A40 |
COVER, L. RR. Price: $103.11 |
| 2 |
19200-MFE-A40 |
WATER PUMP ASSY. Price: $272.15 |
| 3 |
19220-MBA-710 |
COVER ASSY., WATER PUMP Price: $99.55 |
| 4 |
19226-MM9-000 |
GASKET, WATER PUMP COVER Price: $5.64 |
| 5 |
90013-883-000 |
BOLT, FLANGE (6X12) (CT200) Price: $1.94 |
| 6 |
90020-MBA-D20 |
BOLT ASSY., SPECIAL (6X22) (FRAME NO.) Price: $5.33 |
| 7 |
90121-MV9-670 |
BOLT, FLANGE (6X25) Price: $3.40 |
| 8 |
90442-283-000 |
WASHER B, SEALING (10MM) Price: $2.87 |
| 9 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 10 |
90543-MBA-000 |
RUBBER, MOUNTING (FRAME NO.) Price: $3.67 |
| 11 |
90604-MEG-000 |
PIN, LOCK (10MM) Price: $1.55 |
| 12 |
91302-MB0-013 |
O-RING (32.95X2.62) (ARAI) Price: $3.35 |
| 13 |
95701-06045-07 |
BOLT, FLANGE (6X45) This part replaces 95701-06045-00. Price: $2.27 |
