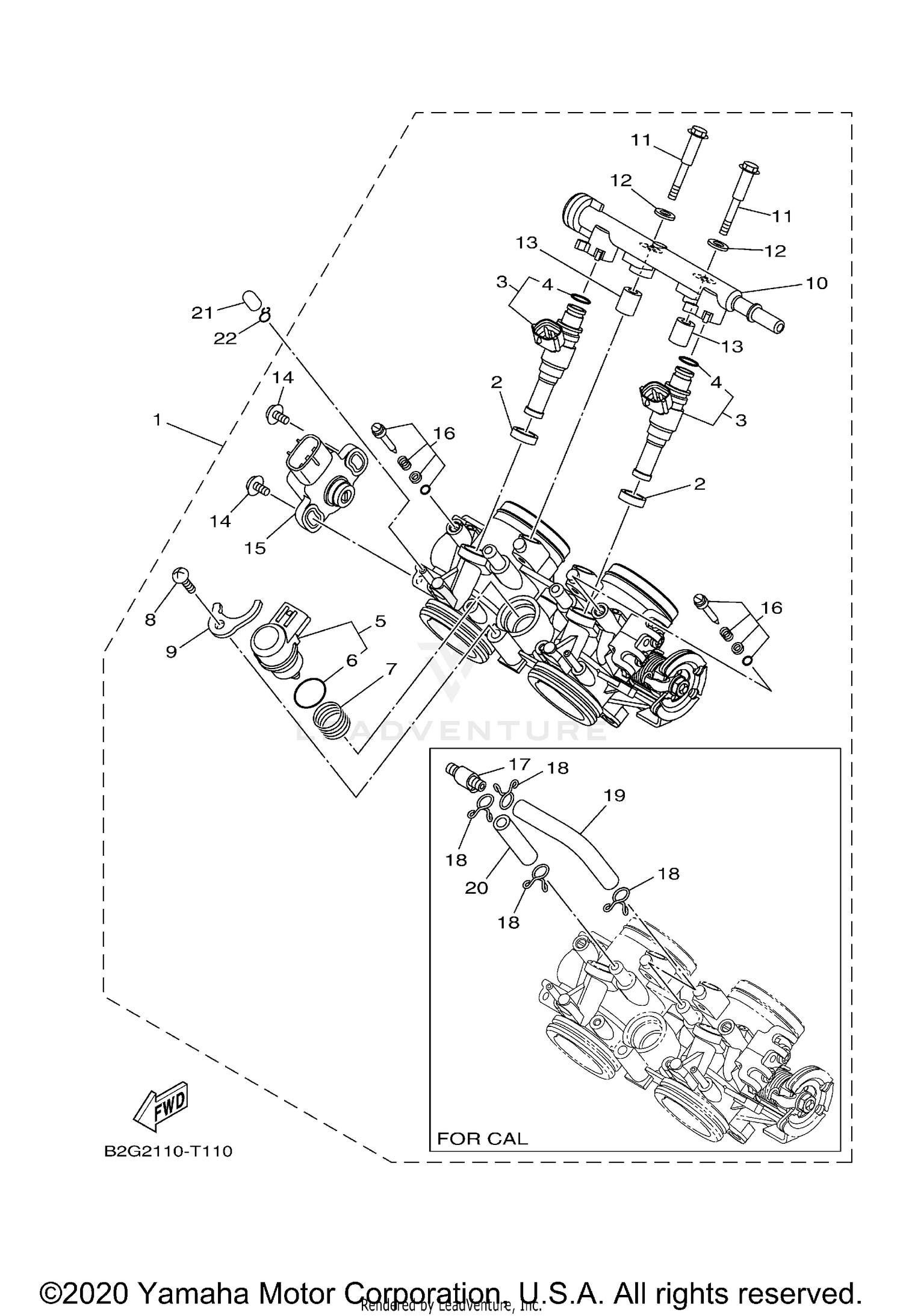

INTAKE 3
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 8FP-13556-00-00 | RUBBER, INJECTOR Price: $15.49 |
| 3 | 1WS-13761-10-00 | INJECTOR Price: $125.99 |
| 4 | 5PS-14147-00-00 | O-RING Price: $14.49 |
| 6 | 54P-E416A-00-00 | O-RING Price: $7.49 |
| 7 | 1WS-14335-00-00 | SPRING, PLUNGER Price: $11.49 |
| 8 | 98517-06012-00 | SCREW,PAN This part replaces 98502-06012-00. Price: $4.10 |
| 9 | 54P-14243-00-00 | PLATE Price: $7.99 |
| 10 | 1WS-13938-00-00 | PIPE Price: $179.99 |
| 11 | 8HG-13573-00-00 | BOLT 1 Price: $11.49 |
| 12 | 8GL-13571-00-00 | WASHER Price: $4.40 |
| 13 | 8HG-14534-00-00 | COLLAR Price: $34.99 |
| 14 | 8CC-14216-10-00 | SCREW Price: $8.99 |
| 15 | 3B4-85885-01-00 | THROTTLE SENSOR AS This part replaces 3B4-85885-00-00. Price: $78.99 |
| 16 | 2C0-14105-00-00 | PILOT SCREW SET Price: $37.99 |
| 21 | 895-14169-00-00 | CAP Price: $5.99 |
