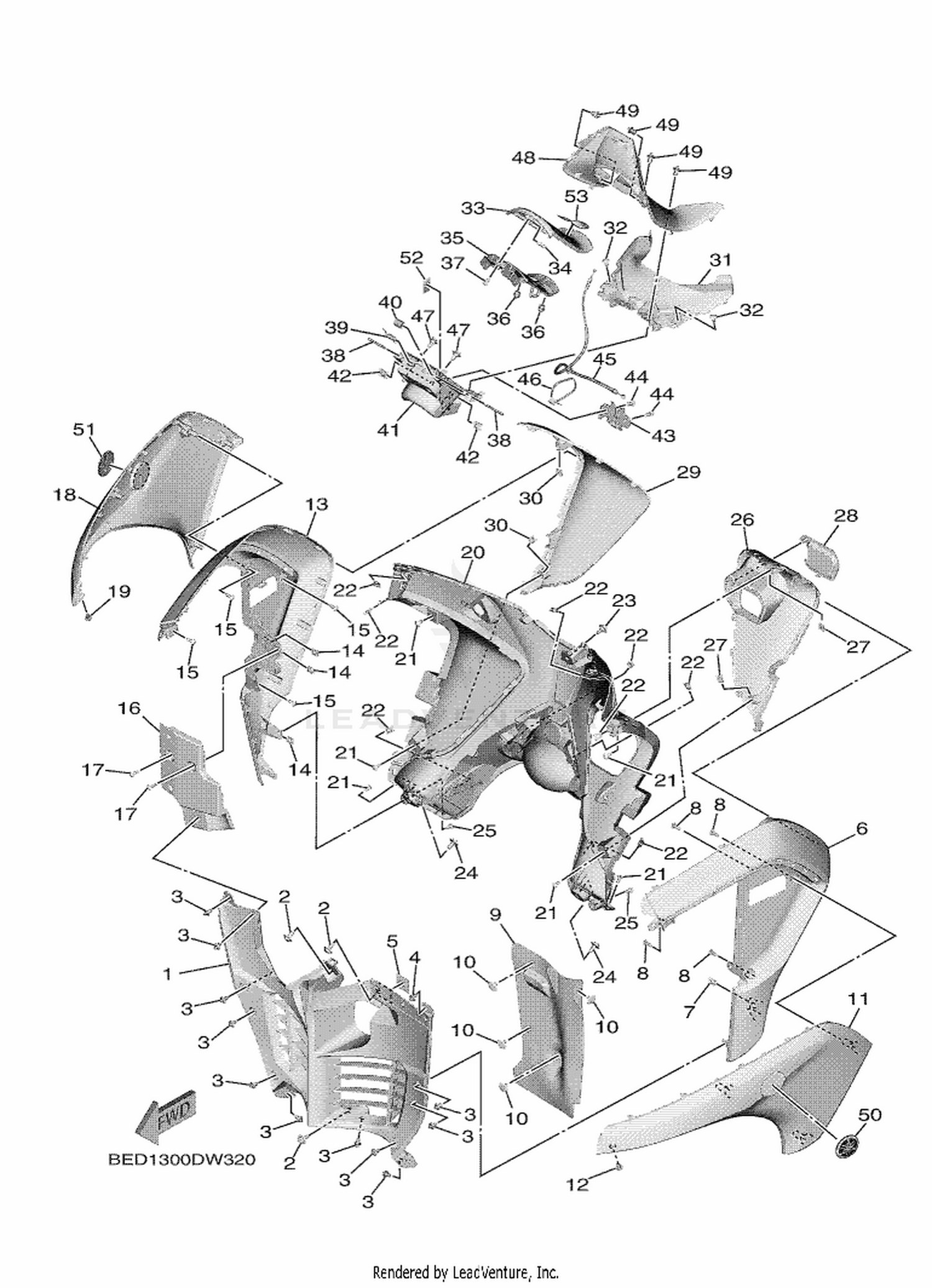

| Ref | Part Number | Description |
|---|
| 1 |
BX9-F837N-01 |
GRILL, AIR INTAKE 1 Price: Call Us |
| 2 |
90119-06051 |
BOLT, WITH WASHER Price: Call Us |
| 3 |
90269-06816 |
RIVET Price: Call Us |
| 4 |
90269-06812 |
RIVET Price: Call Us |
| 5 |
BBR-F414G-10 |
SEAL Price: Call Us |
| 7 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 8 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 9 |
BX9-F836M-00 |
PANEL, INNER 3 Price: Call Us |
| 10 |
90269-06020 |
RIVET Price: Call Us |
| 11 |
BX9-F8345-00 |
MOLE 1 Price: Call Us |
| 12 |
90269-06816 |
RIVET Price: Call Us |
| 14 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 15 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 16 |
BX9-F836N-01 |
PANEL, INNER 4 Price: Call Us |
| 17 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 18 |
BX9-F8346-00 |
MOLE 2 Price: Call Us |
| 19 |
90269-06816 |
RIVET Price: Call Us |
| 20 |
BX9-F8311-00 |
LEG SHIELD 1 Price: Call Us |
| 21 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 22 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 23 |
90109-068B5 |
BOLT Price: Call Us |
| 24 |
90119-06051 |
BOLT, WITH WASHER Price: Call Us |
| 25 |
90160-05808 |
SCREW, ROUND TAPPING Price: Call Us |
| 27 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 28 |
BX9-F843L-00 |
PLATE Price: Call Us |
| 30 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 31 |
BX9-F842N-00 |
COVER 2 Price: Call Us |
| 32 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 34 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 35 |
B74-F839W-01 |
LID 4 Price: Call Us |
| 36 |
90338-07018 |
PLUG Price: Call Us |
| 37 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 38 |
BX9-F818A-00 |
PIN Price: Call Us |
| 39 |
90508-14803 |
SPRING, TORSION Price: Call Us |
| 40 |
B74-F834F-00 |
DAMPER Price: Call Us |
| 41 |
B74-F838W-00 |
BOX 4 Price: Call Us |
| 42 |
90183-06818 |
NUT, SPRING Price: Call Us |
| 43 |
1DY-F4780-00 |
SEAT LOCK ASSY Price: Call Us |
| 44 |
95E32-06012 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 45 |
BX9-F4494-00 |
WIRE, PULL Price: Call Us |
| 46 |
90464-45802 |
CLAMP Price: Call Us |
| 47 |
90109-068B2 |
BOLT Price: Call Us |
| 49 |
90269-06816 |
RIVET Price: Call Us |
| 50 |
B74-F414B-00 |
EMBLEM Price: Call Us |
| 51 |
B74-F414B-00 |
EMBLEM Price: Call Us |
| 52 |
BB8-F817K-40 |
LABEL, FUEL Price: Call Us |
