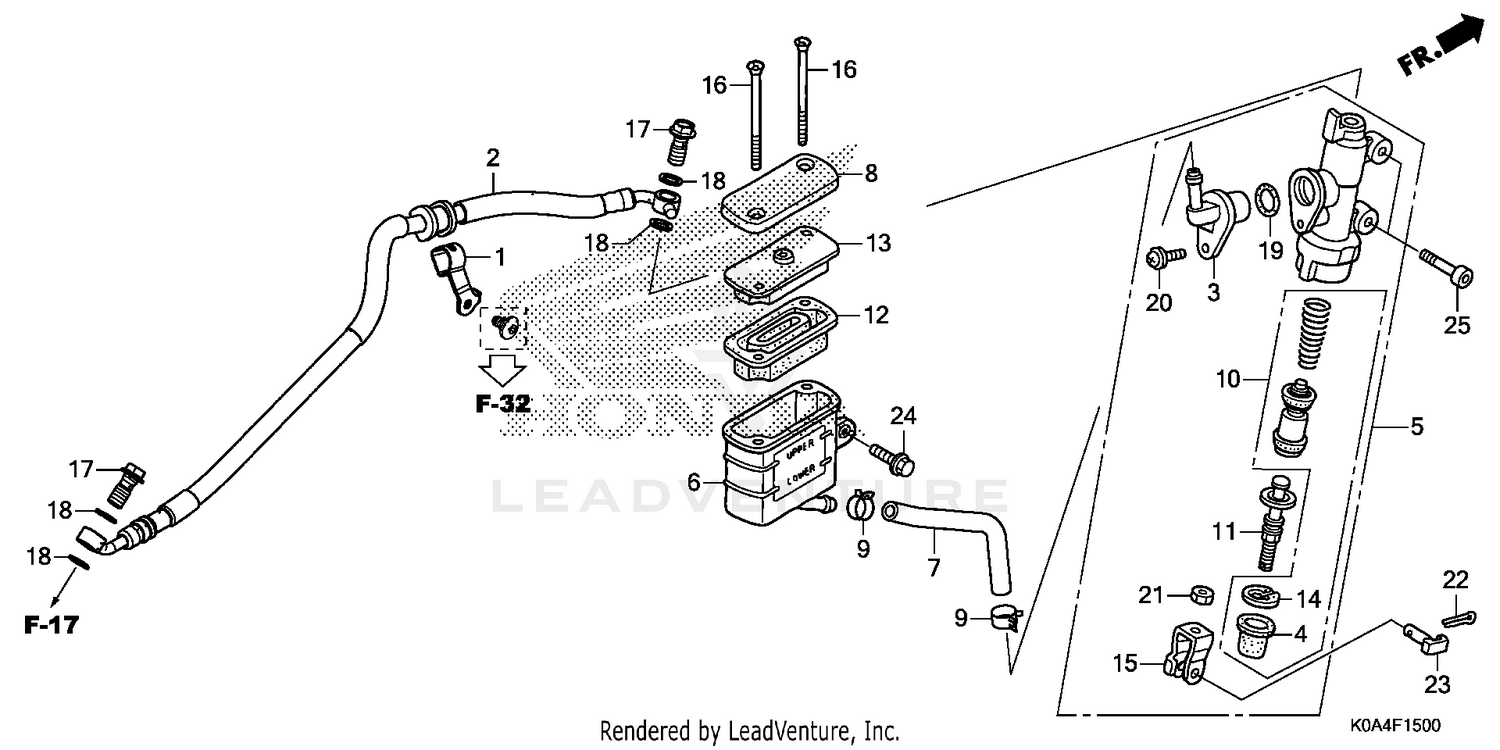

| Ref | Part Number | Description |
|---|
| 1 |
43156-K94-T00 |
CLAMP A, RR. BRAKE HOSE Price: $3.31 |
| 2 |
43310-K0A-A01 |
HOSE, RR. BRAKE Price: $29.44 |
| 3 |
43503-MR7-006 |
CONNECTOR Price: $17.00 |
| 4 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 5 |
43510-K45-N01 |
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) Price: $116.15 |
| 6 |
43511-KVS-F31 |
CUP, OIL Price: $8.33 |
| 7 |
43512-K94-T01 |
HOSE, RR. MASTER CYLINDER Price: $14.35 |
| 8 |
43513-KTY-C01 |
CAP, MASTER CYLINDER Price: $6.85 |
| 9 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 10 |
43520-MJ6-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $54.98 |
| 11 |
43530-KV3-701 |
ROD, PUSH Price: $22.65 |
| 12 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 13 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 14 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 15 |
46504-KV6-702 |
JOINT, BRAKE ROD Price: $9.85 |
| 16 |
90140-KZZ-901 |
SCREW, FLAT (4X45) Price: $7.65 |
| 17 |
90145-KPH-B30 |
BOLT, OIL (10X22) (NISSIN) Price: $2.05 |
| 18 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 19 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 20 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 21 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 22 |
94201-20151 |
PIN, SPLIT (2.0) Price: $0.60 |
| 23 |
95015-54000 |
PIN D, JOINT Price: $5.33 |
| 24 |
96001-06014-00 |
BOLT, FLANGE (6X14) Price: $1.88 |
