Parts Catalog

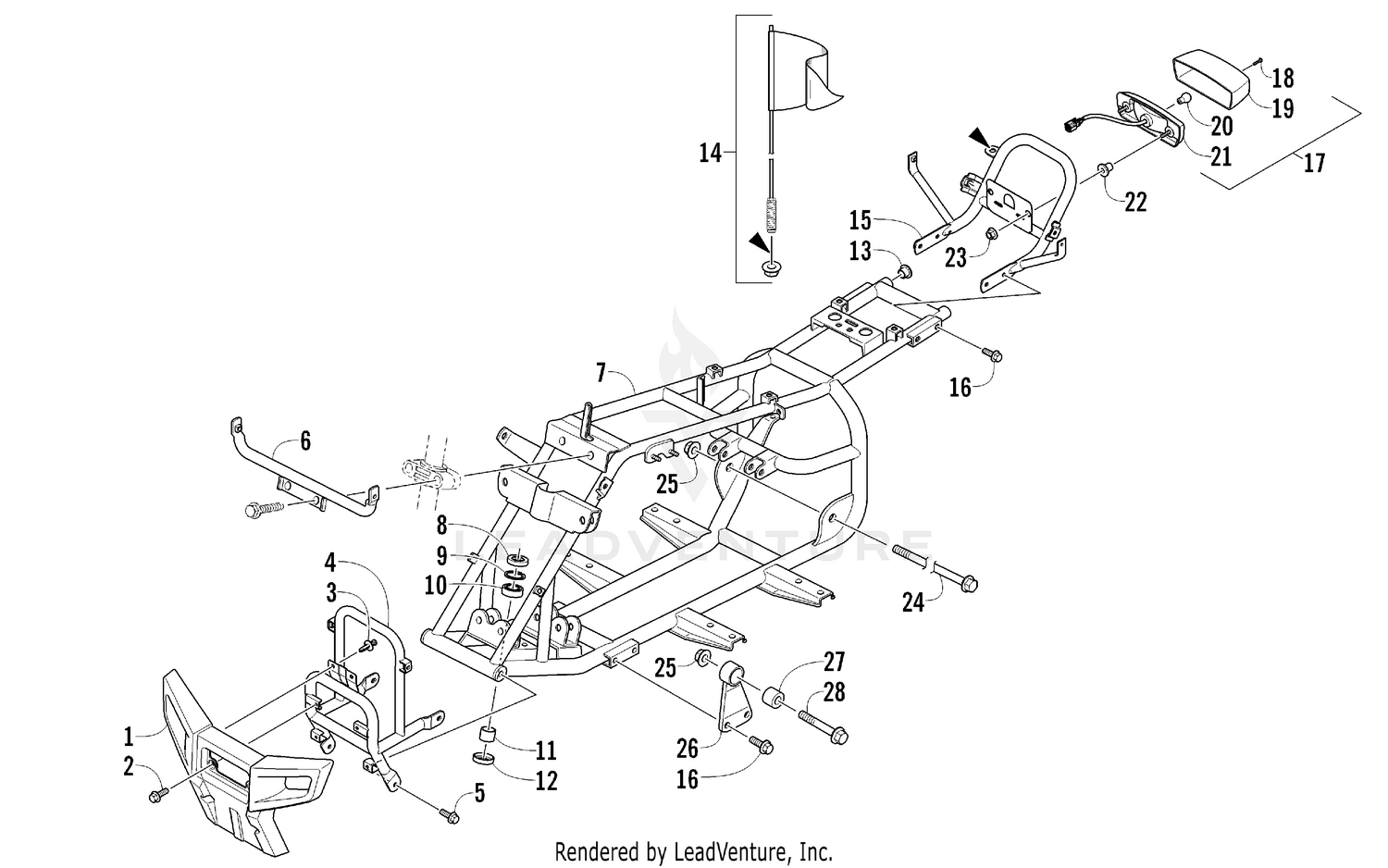

FRAME AND RELATED PARTS ASSEMBLY [92738]

Parts (24)

Ref	Part Number	Description
1	3306-141	BUMPER-FRONT Price: $38.95
2	3304-587	BOLT WASHER 6*16 Price: $1.27
3	3303-592	CLIP MUDGUARD Price: $2.42
4	3304-541	PIPE COMP FRONT BUMPER (RB 3306-741) Price: $73.95
5	3304-544	BOLT FLANGE 8*12 Price: $1.85
6	3304-549	STAY FRONT COVER Price: $23.53
7	3305-862	BODY COMP FRAME Price: $749.05
8	3303-295	OIL SEAL 18*32*7 Price: $2.98
9	3303-347	CIR CLIP IN 32 Price: $2.72
10	3303-392	BEARING BALL RADIAL 6002 Price: $20.38
11	3303-445	COLLAR FR DIST Price: $7.23
12	3303-298	OIL SEAL 22*35*7 Price: $3.46
14	3305-308	FLAG ASSY Price: $57.95
15	3305-403	GRIP ASSY REAR Price: $113.25
16	3304-543	BOLT FLANGE 8*16 Price: $1.56
18	3304-537	TAPPING SCREW M4X35L Price: $2.65
19	3304-283	Lens, Taillight Price: $54.95
20	3303-849	BULB TAIL & STOP 12V21W/5W Price: $12.81
21	3303-422	Housing, Taillight Price: $54.95
22	3303-226	COLLAR FR FENDER Price: $1.87
23	3303-331	NUT FLANGE 6MM Price: $0.39
24	3323-188	SCREW,CAP HFH M10X1.25X95 Price: $3.76
25	3304-031	NUT U 10MM Price: $2.72
27	3304-542	RUBBER BUSHING ENGINE HANGER Price: $7.85
