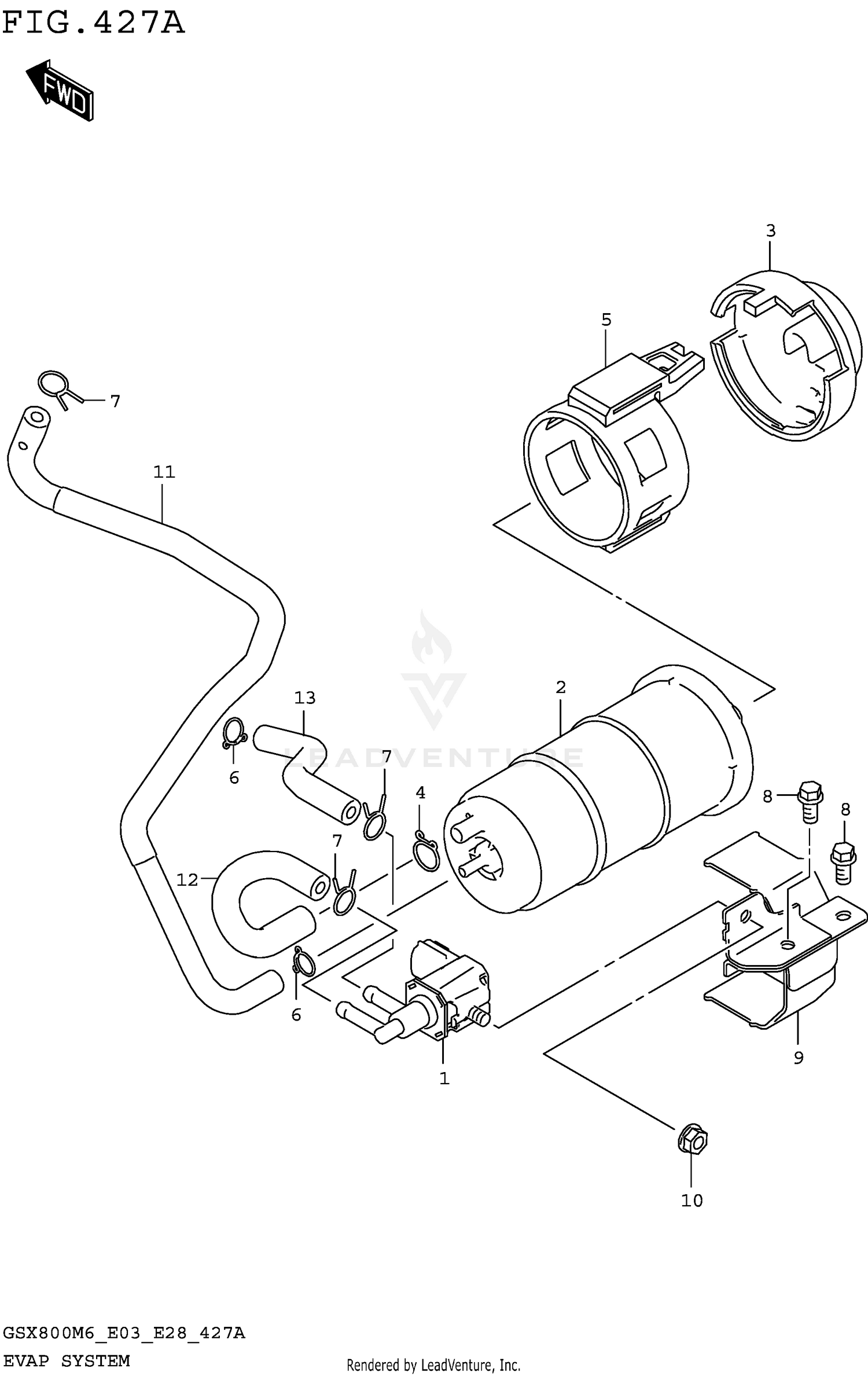

EVAP SYSTEM
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 18114-74P00 | VALVE,CANISTER PURGE Price: $120.01 |
| 2 | 18560-25L00 | CANISTER ASSY,EVAP Price: $46.67 |
| 3 | 18565-25L00 | COVER,CANISTER Price: $32.84 |
| 4 | 18568-25L00 | CLIP,EVAP HOSE NO.1 Price: $1.17 |
| 5 | 18572-25L00 | CUSHION,CANISTER Price: $32.84 |
| 6 | 09401-10401 | CLIP Price: $1.75 |
| 7 | 09401-11403 | CLIP (ID:11) This part replaces 09401-11301. Price: $3.20 |
| 8 | 01547-0612A | BOLT Price: $2.45 |
| 9 | 18570-25L00 | BRACKET,CANISTER Price: $19.12 |
| 10 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 11 | 18561-25L10 | HOSE,SURGE (FKM) Price: $29.46 |
| 12 | 18562-25L10 | HOSE,PURGE NO.1 (FKM) Price: $15.23 |
