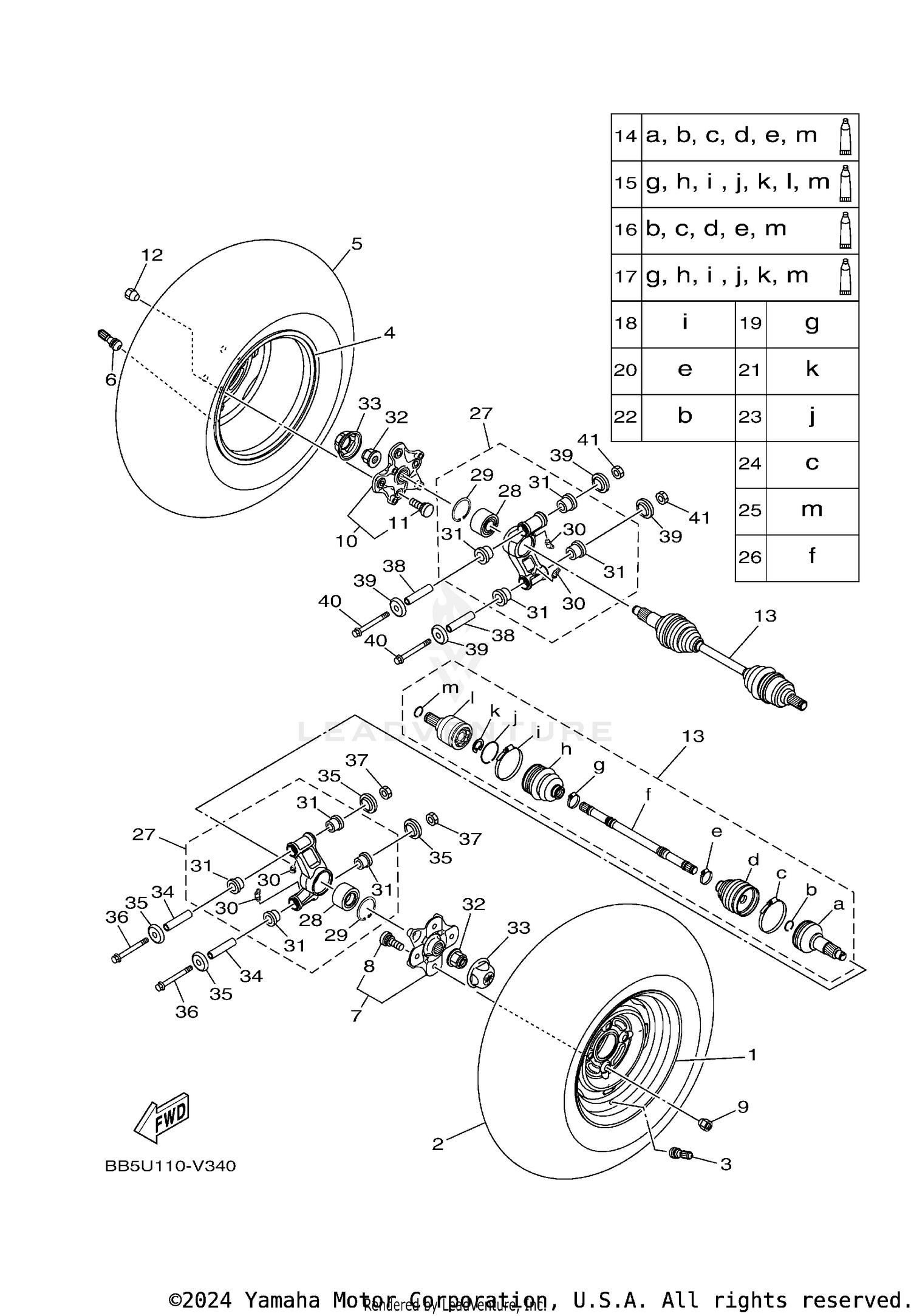

| Ref | Part Number | Description |
|---|
| 1 |
B16-F5390-00-00 |
REAR WHEEL COMP. Price: $214.99 |
| 4 |
B16-F5390-00-00 |
REAR WHEEL COMP. Price: $214.99 |
| 7 |
B16-F510D-03-00 |
HUB ASSY 2 This part replaces B16-F510D-02-00. Price: $59.99 |
| 8 |
90114-10014-00 |
BOLT, SERRATION Price: $3.55 |
| 9 |
90179-10022-00 |
NUT Price: $4.10 |
| 10 |
B16-F510D-03-00 |
HUB ASSY 2 This part replaces B16-F510D-02-00. Price: $59.99 |
| 11 |
90114-10014-00 |
BOLT, SERRATION Price: $3.55 |
| 12 |
90179-10022-00 |
NUT Price: $4.10 |
| 13 |
BB5-2531H-01-00 |
REAR DRIVE SHAFT ASSY Price: $264.99 |
| 18 |
3B4-2511H-00-00 |
BOOT BAND(DOUBLE OFFSET JOINT) Price: $14.49 |
| 19 |
3B4-2512G-00-00 |
BOOT BAND (SMALL) Price: $14.49 |
| 20 |
28P-2512G-00-00 |
BOOT BAND (SMALL) Price: $17.99 |
| 21 |
3B4-2512J-00-00 |
SNAP RING Price: $9.49 |
| 22 |
3B4-2512H-00-00 |
CIRCLIP Price: $7.49 |
| 23 |
3B4-25182-00-00 |
CIRCLIP Price: $7.49 |
| 24 |
28P-2511H-00-00 |
BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 25 |
3B4-2536E-00-00 |
CLIP, SPRING Price: $8.49 |
| 26 |
BB5-2518E-10-00 |
SHAFT Price: $114.99 |
| 27 |
BB5-F532F-00-00 |
REAR KNUCKLE ASSY.,2 Price: $206.99 |
| 28 |
93305-00602-00 |
BEARING Price: $110.99 |
| 29 |
99009-55500-00 |
CIRCLIP Price: $10.49 |
| 30 |
93700-06009-00 |
NIPPLE, GREASE Price: $12.49 |
| 31 |
90381-17067-00 |
BUSH, SOLID Price: $12.49 |
| 32 |
90179-20016-00 |
NUT Price: $12.99 |
| 33 |
1HP-F512A-00-00 |
CAP, WHEEL Price: $2.30 |
| 34 |
5KM-23448-00-00 |
SPACER Price: $18.99 |
| 35 |
3JN-23517-00-00 |
COVER, THRUST 1 This part replaces 2NL-23517-00-00. Price: $17.99 |
| 36 |
90105-10212-00 |
BOLT, FLANGE Price: $8.49 |
| 37 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 38 |
5KM-23448-00-00 |
SPACER Price: $18.99 |
| 39 |
3JN-23517-00-00 |
COVER, THRUST 1 This part replaces 2NL-23517-00-00. Price: $17.99 |
| 40 |
90105-10212-00 |
BOLT, FLANGE Price: $8.49 |
