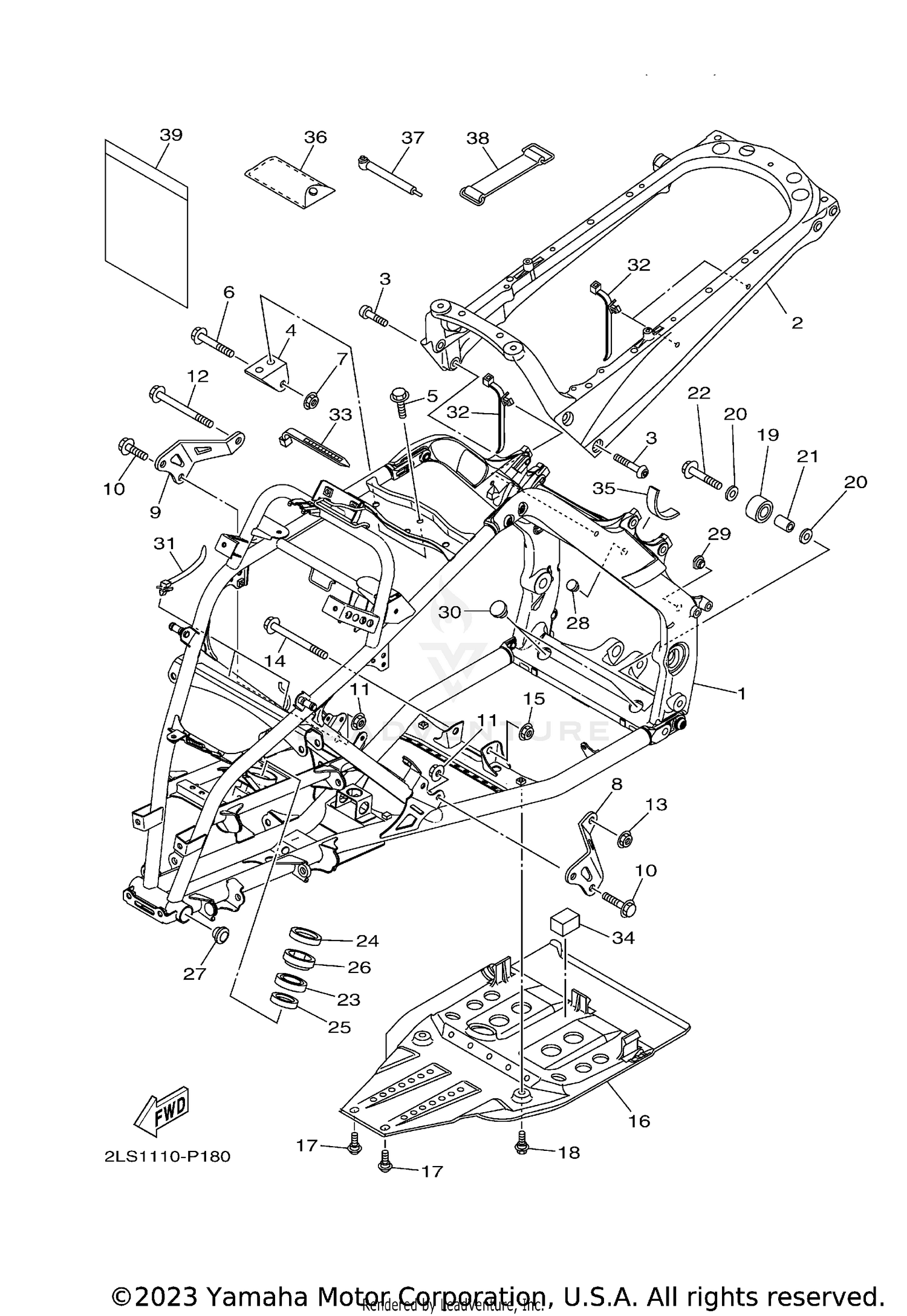

| Ref | Part Number | Description |
|---|
| 3 |
90149-10034-00 |
SCREW Price: $9.49 |
| 4 |
1S3-21315-10-00 |
STAY, ENGINE 2 Price: $14.49 |
| 5 |
90105-08142-00 |
BOLT, FLANGE Price: $6.49 |
| 6 |
95817-10055-00 |
BOLT, FLANGE This part replaces 95812-10055-00. Price: $6.49 |
| 7 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 8 |
1S3-21316-10-00 |
STAY, ENGINE 3 Price: $17.99 |
| 9 |
1S3-21317-10-00 |
STAY, ENGINE 3 Price: $19.99 |
| 10 |
90105-08142-00 |
BOLT, FLANGE Price: $6.49 |
| 11 |
90179-08674-00 |
NUT Price: $8.49 |
| 12 |
95812-10110-00 |
BOLT, FLANGE Price: $8.49 |
| 13 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 14 |
95817-10090-00 |
BOLT, FLANGE This part replaces 95812-10090-00. Price: $10.49 |
| 15 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 16 |
1PE-F1471-00-00 |
PROTECTOR, ENGINE Price: $50.99 |
| 17 |
90109-06201-00 |
BOLT Price: $6.49 |
| 18 |
90109-06172-00 |
BOLT Price: $3.50 |
| 19 |
4D3-22178-00-00 |
TENSIONER Price: $12.99 |
| 20 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 21 |
90380-08136-00 |
BUSH, SOLID 46Y Price: $16.49 |
| 22 |
95814-08045-00 |
BOLT, FLANGE This part replaces 95812-08045-00. Price: $4.75 |
| 23 |
93306-20352-00 |
BEARING Price: $36.99 |
| 24 |
93102-25081-00 |
OIL SEAL Price: $6.49 |
| 25 |
93102-25099-00 |
OIL SEAL Price: $14.49 |
| 26 |
2GU-23872-00-00 |
HOLDER, BEARING This part replaces 5GT-23872-00-00. Price: $28.99 |
| 27 |
90338-26004-00 |
PLUG Price: $8.49 |
| 28 |
90338-24260-00 |
PLUG Price: $6.49 |
| 29 |
90338-20183-00 |
PLUG Price: $12.49 |
| 30 |
90338-23004-00 |
PLUG Price: $6.49 |
| 31 |
5B4-F1338-00-00 |
CLAMP Price: $3.60 |
| 32 |
90464-20213-00 |
CLAMP Price: $5.49 |
| 33 |
25G-83936-01-00 |
BAND, SWITCH CORD This part replaces 90464-12045-00. Price: $5.49 |
| 34 |
1S3-2140A-00-00 |
DAMPER, STOPPER Price: $8.49 |
| 35 |
4X4-24181-00-00 |
DAMPER, LOCATING 1 This part replaces 1JK-21639-00-00. Price: $5.99 |
| 36 |
1PE-F8100-01-00 |
TOOL KIT Price: $17.99 |
| 37 |
1NV-2811A-01-00 |
GAUGE, AIR Price: $62.99 |
| 38 |
116-82131-00-00 |
BAND, BATTERY Price: $34.99 |
