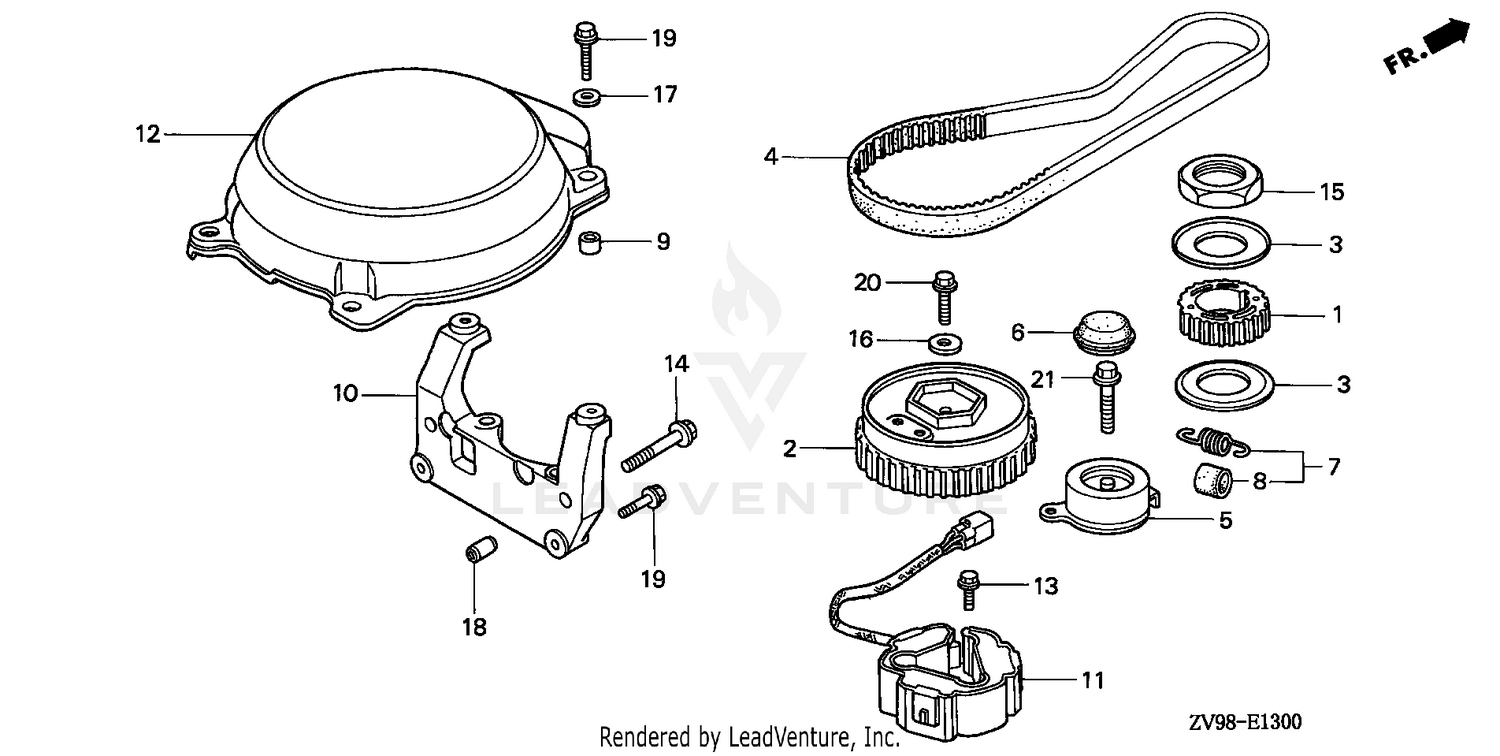

| Ref | Part Number | Description |
|---|
| 1 |
14315-ZV7-000 |
PULLEY, TIMING Price: $115.14 |
| 2 |
14320-ZV7-000 |
PULLEY, CAMSHAFT Price: $195.68 |
| 3 |
14323-ZV7-000 |
PLATE, TIMING BELT GUIDE Price: $17.72 |
| 4 |
14400-ZV7-014 |
SEE PART DETAILS - PRI; BELT, TIMING Price: $89.00 |
| 5 |
14510-ZV5-013 |
TENSIONER COMP, T/B This part replaces 14510-ZV5-003. Price: $98.88 |
| 6 |
14515-ZV5-000 |
CAP, TIMING BELT TENSIONER Price: $8.06 |
| 7 |
14520-ZV7-010 |
SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTING Price: $6.08 |
| 8 |
14522-ZV5-000 |
BOOT, SPRING Price: $3.10 |
| 10 |
28491-ZV7-000 |
BRACKET, RECOIL Price: $105.58 |
| 11 |
30310-ZV7-003 |
COIL ASSY., PULSER Price: $122.96 |
| 15 |
90202-ZV7-000 |
NUT, LOCK (34MM) Price: $24.98 |
| 16 |
90405-ZZ5-M01 |
WASHER, PLAIN (8MM) This part replaces 90405-ZV5-010. Price: $2.68 |
| 18 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
