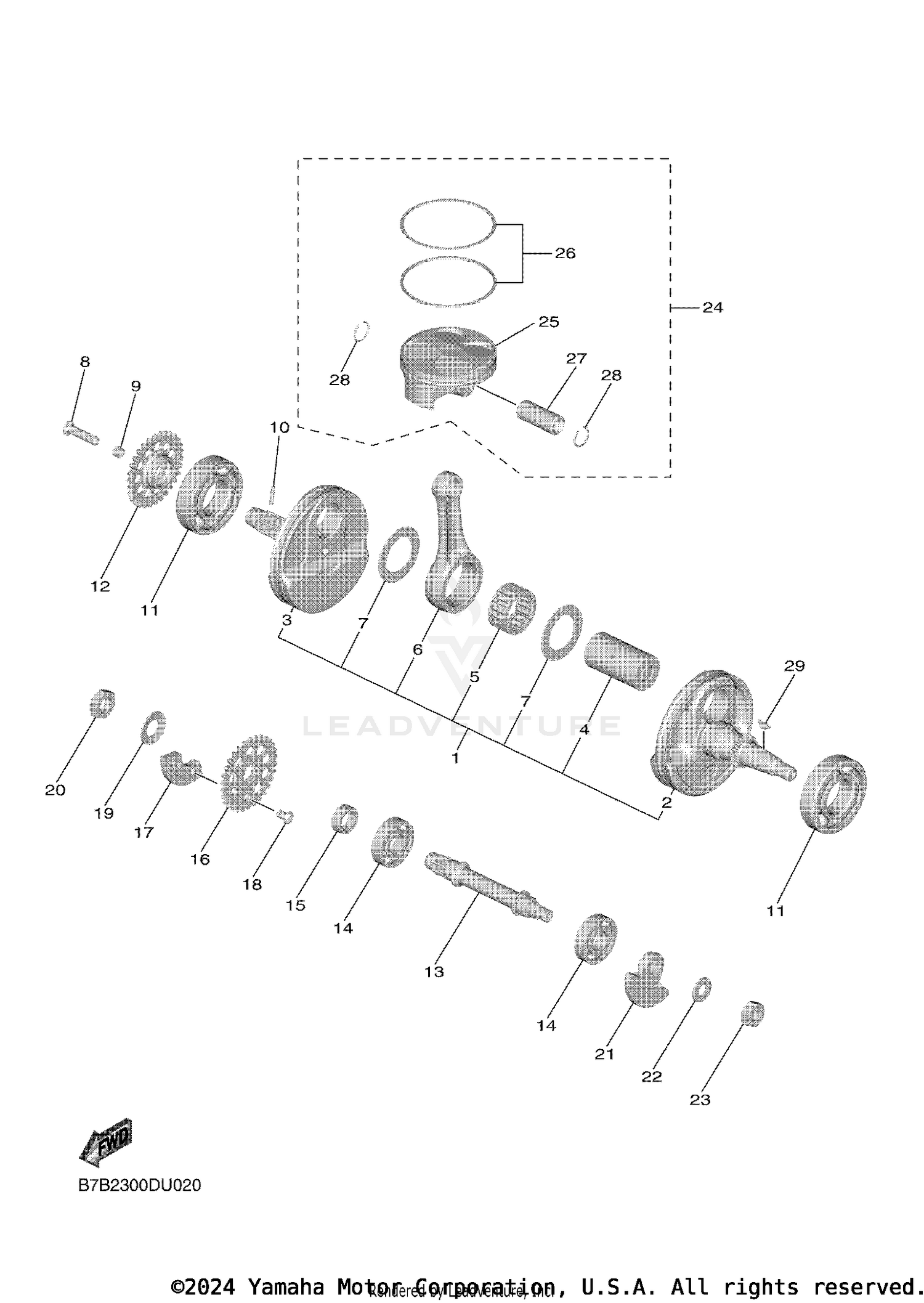

| Ref | Part Number | Description |
|---|
| 1 |
B7B-11400-02-00 |
CRANKSHAFT ASSY This part replaces B7B-11400-00-00. Price: $640.99 |
| 2 |
B7B-11412-01-00 |
CRANK 1 This part replaces B7B-11412-00-00. Price: $239.99 |
| 3 |
B7B-11422-01-00 |
CRANK 2 This part replaces B7B-11422-00-00. Price: $259.99 |
| 4 |
1SM-11681-00-00 |
PIN, CRANK 1 Price: $72.99 |
| 5 |
93310-63097-00 |
BEARING Price: $112.99 |
| 6 |
1SM-11651-20-00 |
ROD, CONNECTING Price: $156.99 |
| 7 |
90209-30011-00 |
WASHER Price: $39.99 |
| 8 |
90240-07105-00 |
PIN, CLEVIS Price: $18.49 |
| 9 |
90501-070A2-00 |
SPRING, COMPRESSION Price: $2.75 |
| 10 |
93602-13177-00 |
PIN, DOWEL Price: $4.05 |
| 11 |
93306-20648-00 |
BEARING Price: $99.99 |
| 12 |
1SM-11536-10-00 |
GEAR, DRIVE Price: $111.99 |
| 13 |
1SM-11455-10-00 |
SHAFT 1 Price: $183.99 |
| 14 |
93306-20351-00 |
BEARING Price: $42.99 |
| 15 |
90387-175R2-00 |
COLLAR Price: $13.99 |
| 16 |
1SM-11531-00-00 |
GEAR, BALANCE WEIGHT Price: $124.99 |
| 17 |
1SM-11454-00-00 |
WEIGHT 1 Price: $76.99 |
| 18 |
90149-06084-00 |
SCREW This part replaces 90149-06083-00. Price: $9.49 |
| 19 |
90208-14033-00 |
WASHER, CONICAL SPRING Price: $3.85 |
| 20 |
90170-14171-00 |
NUT Price: $10.49 |
| 21 |
1SM-11464-00-00 |
WEIGHT 2 Price: $77.99 |
| 22 |
90208-10001-00 |
WASHER, CONICAL SPRING Price: $2.35 |
| 23 |
90170-10012-00 |
NUT Price: $5.49 |
| 24 |
B7B-116A0-00-00 |
PISTON ASSY Price: $143.99 |
| 25 |
B7B-11631-00-00 |
PISTON (STD) Price: $102.99 |
| 26 |
1SM-11603-00-00 |
PISTON RING SET (STD) Price: $34.99 |
| 27 |
1SM-11633-30-00 |
PIN, PISTON This part replaces 1SM-11633-20-00. Price: $46.99 |
| 28 |
93450-17129-00 |
CIRCLIP Price: $4.45 |
