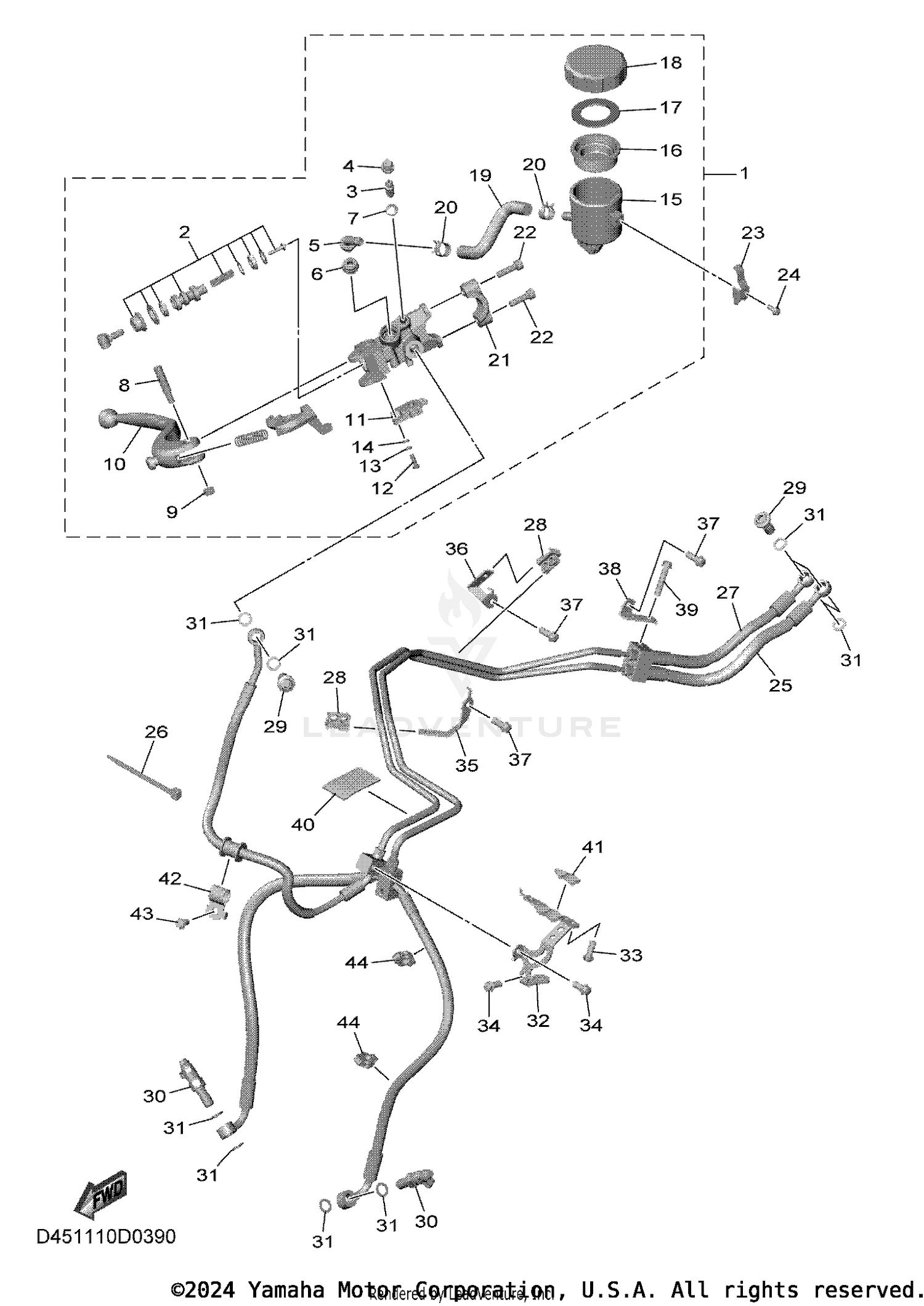

| Ref | Part Number | Description |
|---|
| 1 |
D45-2583T-00-00 |
MASTER CYLINDER ASSY Price: $314.99 |
| 3 |
3YK-25824-00-00 |
SCREW, BLEED Price: $9.49 |
| 4 |
3YK-25825-00-00 |
CAP Price: $12.99 |
| 6 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 7 |
5VY-25975-00-00 |
SEAL 1 Price: $2.50 |
| 9 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 10 |
BEB-W2616-00-00 |
LEVER SET Price: $60.99 |
| 11 |
1HP-83980-03-00 |
FRONT STOP SWITCH AS Price: $34.99 |
| 12 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 13 |
92990-04100-00 |
WASHER, SPRING This part replaces 92902-04100-00. Price: $0.95 |
| 14 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 15 |
5SL-25894-20-00 |
TANK, RESERVOIR Price: $42.99 |
| 16 |
5VY-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $35.99 |
| 17 |
5VY-25855-00-00 |
BUSH, DIAPHRAGM Price: $5.99 |
| 18 |
5VY-25852-00-00 |
CAP, RESERVOIR Price: $19.99 |
| 20 |
90467-120A3-00 |
CLIP Price: $8.49 |
| 21 |
5VS-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $39.99 |
| 22 |
5VS-26332-00-00 |
BOLT Price: $4.95 |
| 23 |
5VY-2589G-00-00 |
HOLDER Price: $9.49 |
| 24 |
5VY-2589H-00-00 |
SCREW Price: $8.49 |
| 25 |
D45-2584A-00-00 |
BRAKE HOSE ASSY Price: $253.99 |
| 26 |
3MA-82591-00-00 |
CLAMP Price: $10.99 |
| 27 |
D45-2584B-00-00 |
HOSE, BRAKE Price: $341.99 |
| 28 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 29 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 30 |
D45-25877-00-00 |
BOLT, OIL 1 Price: $32.99 |
| 31 |
90430-10005-00 |
GASKET Price: $9.49 |
| 32 |
2CR-2612E-00-00 |
BRACKET Price: $18.99 |
| 33 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 34 |
95027-06014-00 |
BOLT, FLANGE Price: $0.95 |
| 35 |
2CR-2612K-00-00 |
BRACKET 2 Price: $8.49 |
| 36 |
2CR-2612L-00-00 |
BRACKET 3 Price: $5.99 |
| 37 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 38 |
2CR-2612M-00-00 |
BRACKET 4 Price: $5.49 |
| 39 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 40 |
5H0-8235Y-M0-00 |
DAMPER This part replaces 3YL-12232-00-00. Price: $7.49 |
| 41 |
2CR-2622F-00-00 |
DAMPER, LOCATING 1 Price: $1.60 |
| 42 |
90461-08031-00 |
CLAMP This part replaces 90461-10132-00. Price: $9.49 |
| 43 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
