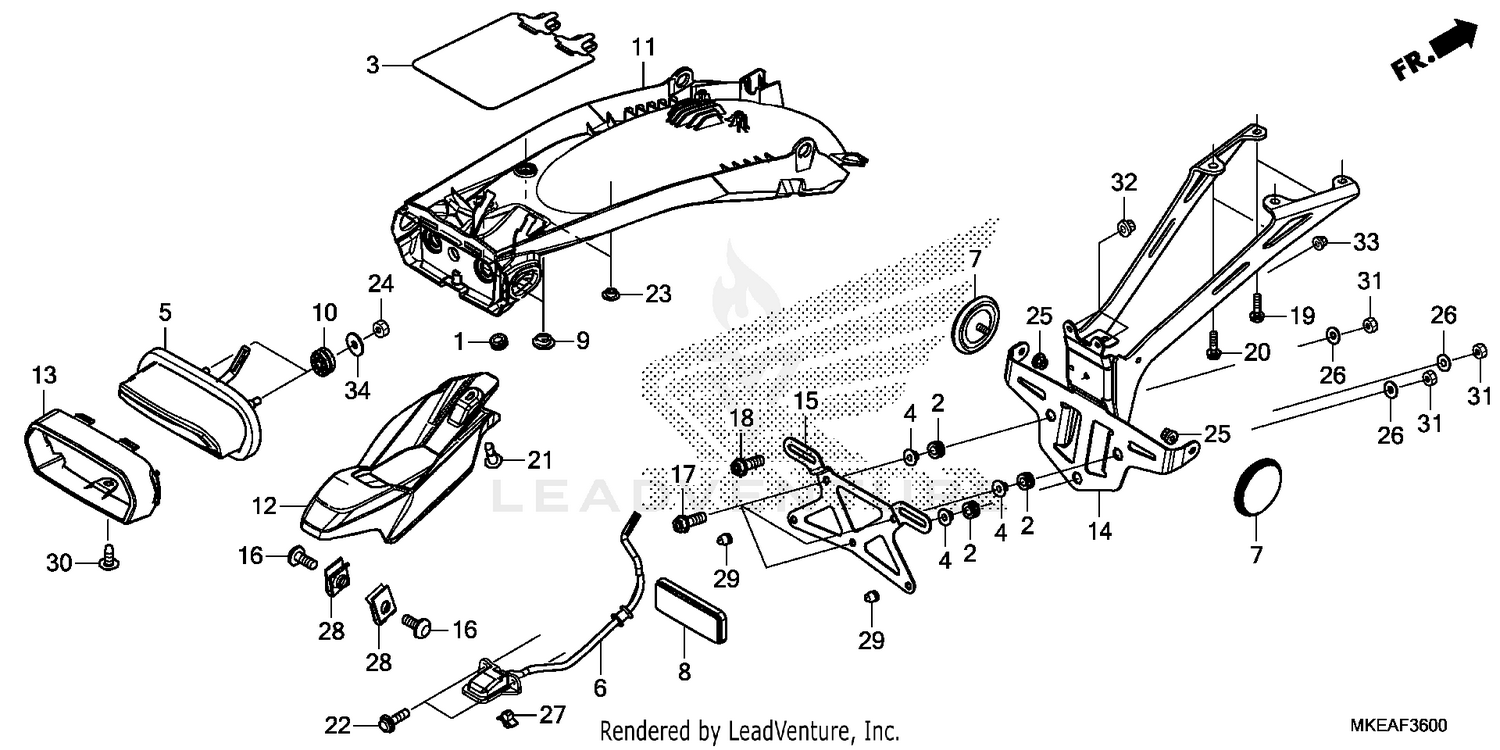

| Ref | Part Number | Description |
|---|
| 1 |
11344-MB0-000 |
GROMMET A, RR. COVER (8X16X6.6) (FR.) Price: $3.29 |
| 2 |
19639-GBC-000 |
RUBBER, MOUNTING Price: $1.60 |
| 3 |
32118-MKE-A50 |
RUBBER, WATER GUARD Price: $6.89 |
| 4 |
33614-MEC-650 |
COLLAR C, RR. TURN SIGNAL Price: $2.93 |
| 5 |
33701-MKE-A51 |
TAILLIGHT UNIT Price: $74.35 |
| 6 |
33720-MKE-A51 |
LIGHT ASSY., LICENSE Price: $73.15 |
| 7 |
33741-HB9-641 |
REFLECTOR, RR. REFLEX (RED) Price: $16.07 |
| 8 |
33741-MS6-921 |
REFLECTOR, REFLEX (STANLEY) Price: $18.36 |
| 9 |
50513-KZV-J00 |
COLLAR, MAIN STAND SHAFT Price: $4.18 |
| 10 |
77208-MKE-A50 |
RUBBER, TAILLIGHT Price: $5.35 |
| 11 |
80106-MKE-A50 |
FENDER B, RR. Price: $68.84 |
| 12 |
80107-MKE-A50 |
COVER, LICENSE LIGHT Price: $23.60 |
| 13 |
80108-MKE-A50 |
COVER, TAILLIGHT Price: $12.75 |
| 14 |
80115-MKE-A50 |
BRACKET, NUMBER PLATE Price: $221.89 |
| 15 |
80116-MKE-A50 |
BRACKET, LICENSE PLATE Price: $31.75 |
| 16 |
90001-KPF-910 |
BOLT, SPECIAL (5X12) Price: $1.64 |
| 17 |
90020-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.65 |
| 18 |
90030-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.42 |
| 19 |
90030-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 20 |
90109-MEN-A30 |
BOLT (8X20) Price: $3.47 |
| 21 |
90116-K2P-V61 |
CLIP, BUMPER SEAL Price: $1.84 |
| 22 |
90125-MKE-A50 |
SCREW-WASHER, SPECIAL (4X14) Price: $2.20 |
| 23 |
90127-KF0-770 |
COLLAR (6X4) Price: $4.29 |
| 24 |
90201-415-000 |
NUT, CAP (6MM) Price: $2.45 |
| 25 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 26 |
90485-VM0-000 |
WASHER (6MM) Price: $3.53 |
| 27 |
90654-SA4-003 |
CLIP, WIRE HARNESS (6MM) (WHITE) Price: $0.23 |
| 28 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
| 29 |
90899-422-610 |
PLUG, CONE TYPE Price: $2.27 |
| 30 |
93903-25280 |
SCREW, TAPPING (5X12) Price: $1.42 |
| 31 |
94001-06080-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 32 |
94050-04080 |
NUT, FLANGE (4MM) Price: $1.30 |
| 33 |
90301-MG8-000 |
NUT, FLANGE (5MM) (FUSE RASHI) Price: $5.33 |
