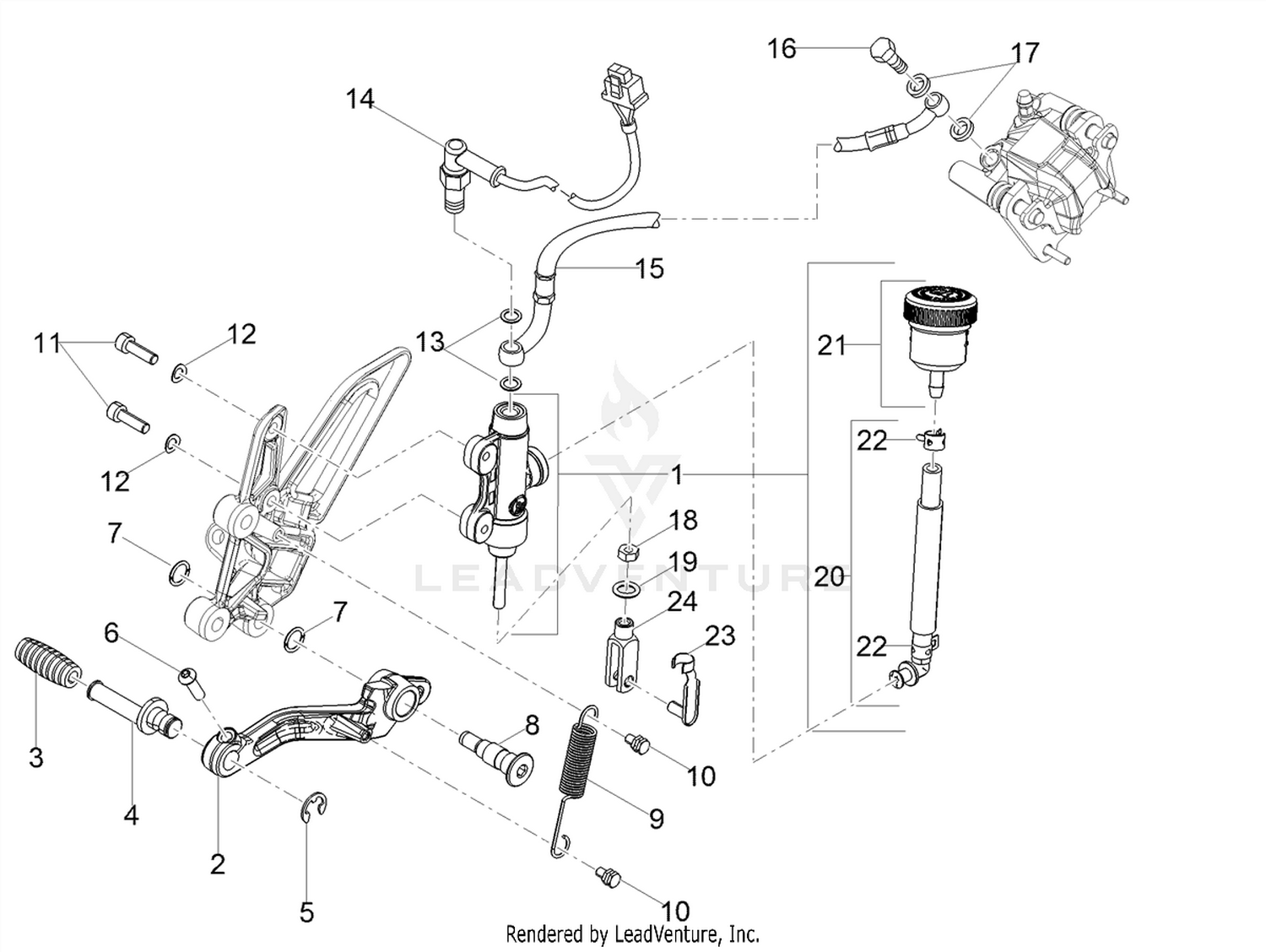

Rear master cylinder
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2B003611 | Brake pump, assy Price: $117.44 |
| 2 | 858785 | Rear brake lever Price: $39.45 |
| 3 | AP8120912 | Lever rubber Price: $1.04 |
| 4 | AP8121221 | Brake lever pin Price: $12.52 |
| 5 | AP8150462 | Circlip Price: $0.49 |
| 6 | AP8224470 | Hex socket screw Price: $0.25 |
| 7 | AP8144007 | O-ring Price: $0.59 |
| 8 | 884033 | Lever pin Price: $9.15 |
| 9 | 296282 | Spring Price: $3.98 |
| 10 | 859946 | Fixing pin Price: $3.57 |
| 11 | AP8150044 | Hex socket screw Price: $2.70 |
| 12 | AP8150182 | Curved spring washer Price: $0.06 |
| 13 | AP8113004 | Washer Price: $0.25 |
| 14 | 865493 | Stop switch Price: Call Us |
| 15 | 2B003616 | Rear brake tube Price: $298.19 |
| 16 | 867237 | Oil hose union Price: Call Us |
| 17 | 867238 | Washer Price: $2.70 |
| 18 | AP8150026 | Nut Price: $0.12 |
| 19 | AP8120178 | O-ring Price: $0.06 |
| 20 | 2B004355 | Rear brake hose Price: $11.32 |
| 21 | 00D01100201 | Oil tank Price: $63.19 |
| 22 | 2R000320 | Hose clamp Price: $11.21 |
| 23 | AP8113082 | Gear selector fork clips Price: $2.70 |
