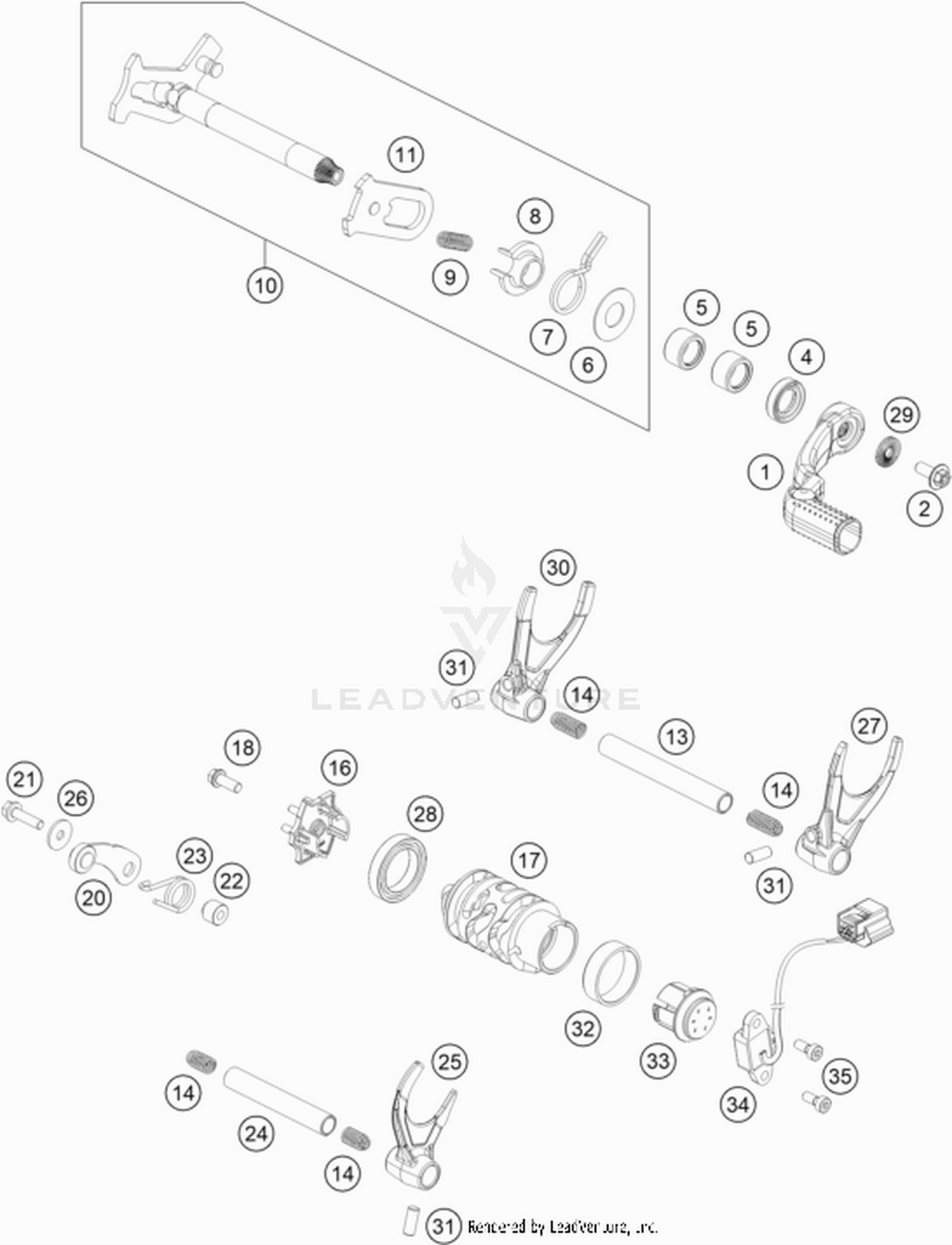

34 SHIFTING MECHANISM
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 79434031100 | SHIFT LEVER CPL. Price: Call Us |
| 2 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 6 | 90134050000 | STOP DISK 14X30X1,5 Price: Call Us |
| 7 | 54634014100 | RETURN SPRING 2,2MM '95 Price: Call Us |
| 8 | 54634020000 | SPRING GUIDE Price: Call Us |
| 9 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 10 | 79434005033M02 | Shift Shaft cpl. Price: Call Us |
| 11 | 61234008044 | SLIDING PLATE Price: Call Us |
| 13 | 79434020000 | GEAR SHIFT RAIL 11,8X91,1MM Price: Call Us |
| 14 | 58038023200 | PRESSURE SPRING 0,9MM Price: Call Us |
| 16 | 79434015100 | Detent cmpl. This part replaces 79434115000. Price: Call Us |
| 17 | 79434512000 | Shift roller 6 gear Price: Call Us |
| 18 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
| 20 | 78134024044 | LOCKING LEVER CPL. Price: Call Us |
| 21 | 0025050206 | HH collar screw M5x20 TX30 Price: Call Us |
| 22 | 54634052300 | SLEEVE FOR LOCKING LEVER Price: Call Us |
| 23 | 60034023000 | ARRESTING LEVER SPRING 03 Price: Call Us |
| 24 | 79434019000 | GEAR SHIFT RAIL 11,8X74,5MM Price: Call Us |
| 25 | 79434001100 | SHIFTING FORK 5TH-6TH GEAR Price: Call Us |
| 27 | 79434002100 | SHIFTING FORK 2ND-4TH GEAR Price: Call Us |
| 28 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 29 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 30 | 79434003100 | SHIFTING FORK 1ST-3RD GEAR Price: Call Us |
| 31 | 0402061480 | NEEDLE ROLLER DIN5402 6X14,8 Price: Call Us |
| 32 | 79234012010M01 | Slide Bearing Price: Call Us |
| 33 | 79234012020 | Magnet bracket cmpl. Price: Call Us |
