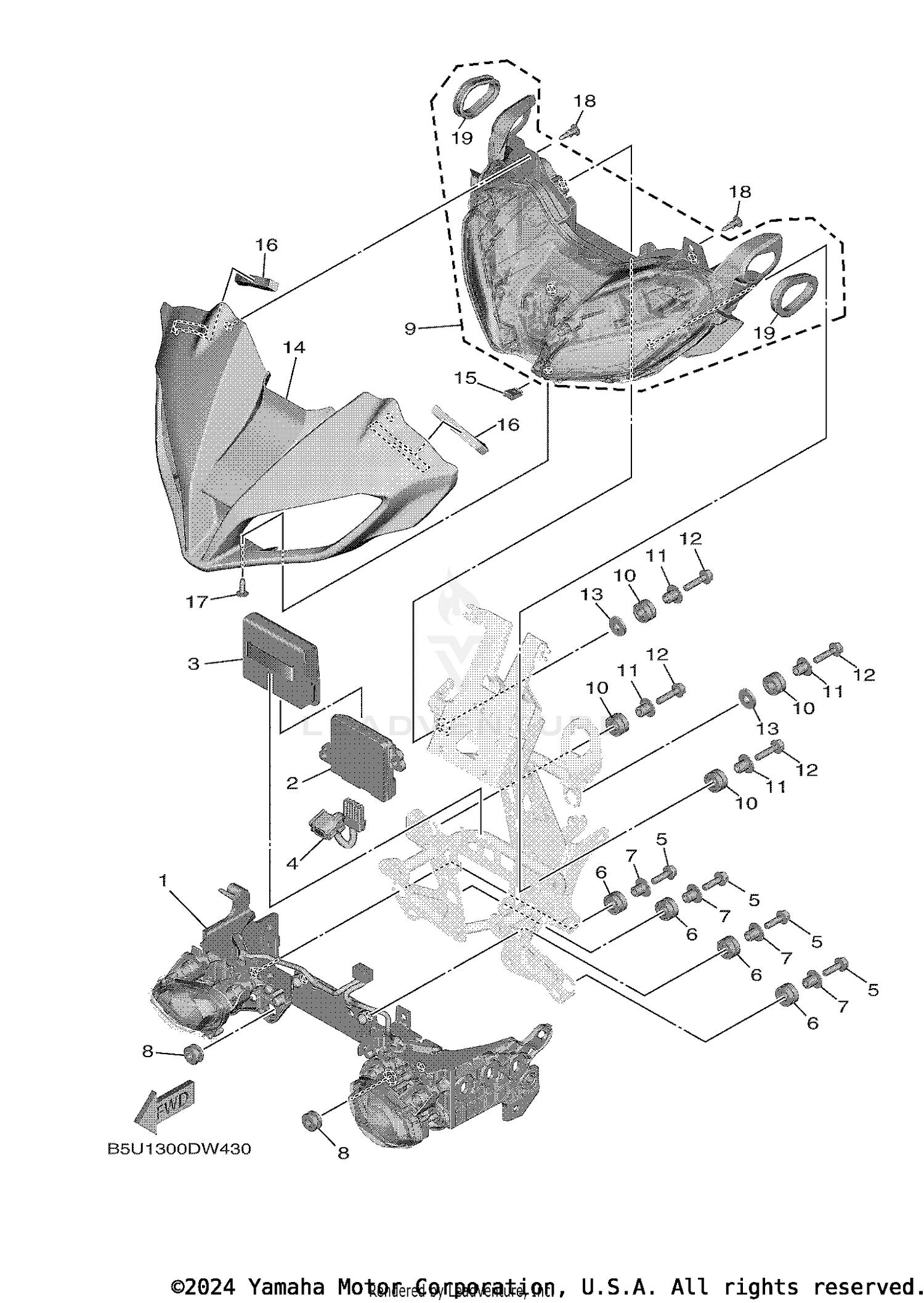

HEADLIGHT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5U-84300-00-00 | HEADLIGHT ASSY Price: $723.99 |
| 2 | 2PP-85490-00-00 | LIGHT CONTROL UNIT Price: $279.99 |
| 3 | B5U-83836-00-00 | BAND Price: $17.49 |
| 4 | B5U-82509-10-00 | WIRE, SUB LEAD Price: $47.99 |
| 5 | 95817-06020-00 | BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 6 | 3C3-83513-00-00 | DAMPER Price: $8.49 |
| 7 | 90387-07391-00 | COLLAR This part replaces 90387-065G0-00. Price: $10.49 |
| 8 | 90480-12596-00 | GROMMET Price: $11.49 |
| 9 | BAP-84301-02-00 | PILOT LIGHT ASSY 1 This part replaces BAP-84301-00-00. Price: $960.99 |
| 10 | 3C3-83513-00-00 | DAMPER Price: $8.49 |
| 11 | 90387-07391-00 | COLLAR This part replaces 90387-065G0-00. Price: $10.49 |
| 12 | 95817-06025-00 | BOLT, FLANGE This part replaces 95827-06025-00. Price: $1.75 |
| 13 | 90201-06103-00 | WASHER, PLATE Price: $1.40 |
| 14 | B5U-84369-01-00 | COVER 1 This part replaces B5U-84369-00-00. Price: $25.99 |
| 15 | 90183-05042-00 | NUT, SPRING Price: $1.00 |
| 16 | 90520-10038-00 | DAMPER, PLATE Price: $1.55 |
| 17 | 97702-50016-00 | SCREW, TAPPING Price: $2.60 |
