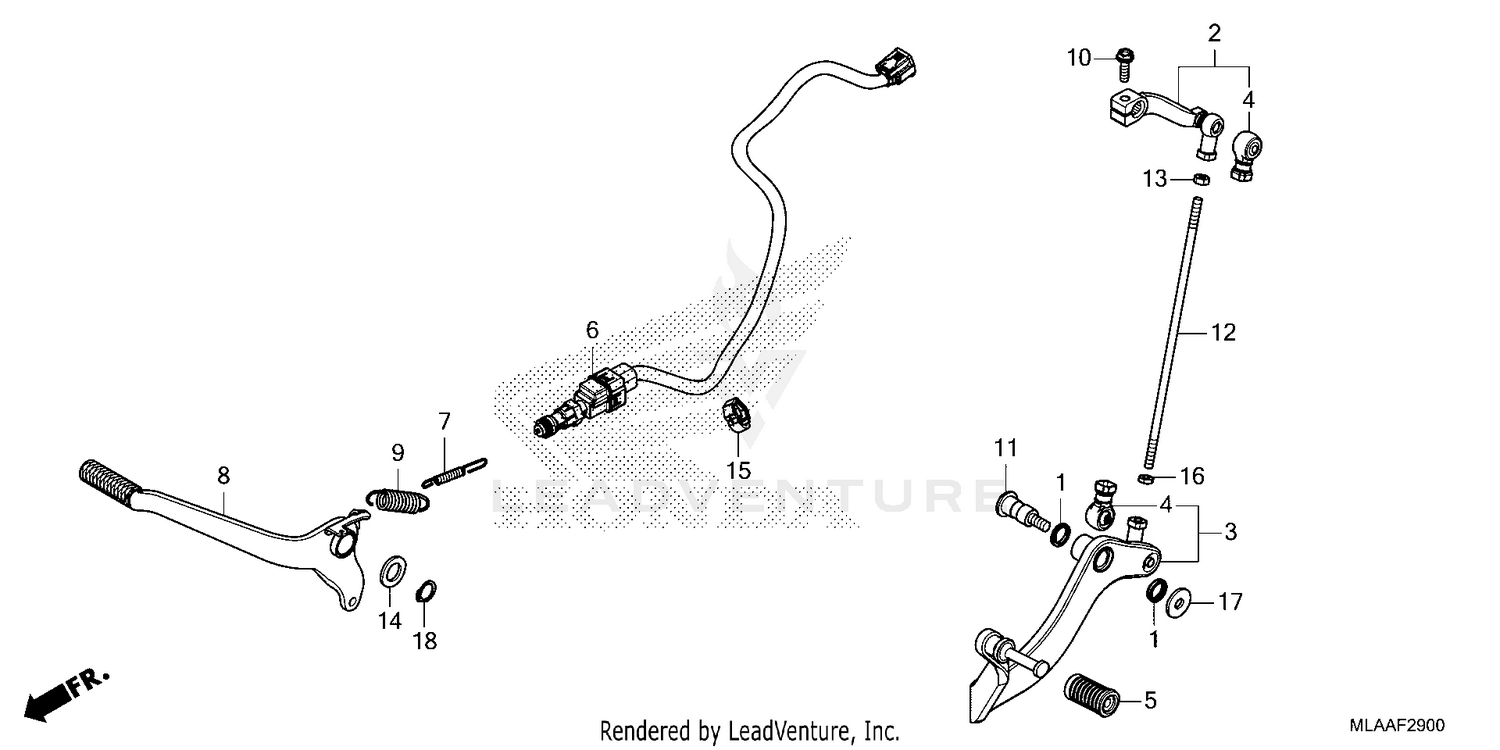

| Ref | Part Number | Description |
|---|
| 1 |
24706-MK3-770 |
RUBBER, DUST SEAL Price: $5.62 |
| 2 |
24710-MLA-A00 |
ARM, GEARSHIFT Price: $81.51 |
| 3 |
24720-MLA-A00 |
PEDAL, GEARSHIFT Price: $151.45 |
| 4 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 5 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 6 |
35350-MLA-A01 |
SWITCH ASSY., RR. STOP & CRUISE Price: $60.73 |
| 7 |
35357-MLA-A00 |
SPRING, STOP SWITCH Price: $4.84 |
| 8 |
46501-MLA-A00 |
PEDAL, RR. BRAKE Price: $51.96 |
| 9 |
46514-MLA-A00 |
SPRING, BRAKE PEDAL Price: $6.13 |
| 10 |
90031-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.49 |
| 11 |
90115-KAF-000 |
BOLT, CHANGE PIVOT Price: $23.93 |
| 12 |
90165-MLA-A00 |
BOLT, TIE ROD Price: $10.44 |
| 13 |
90301-MGZ-J00 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 14 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 15 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 16 |
94001-06070-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 17 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
