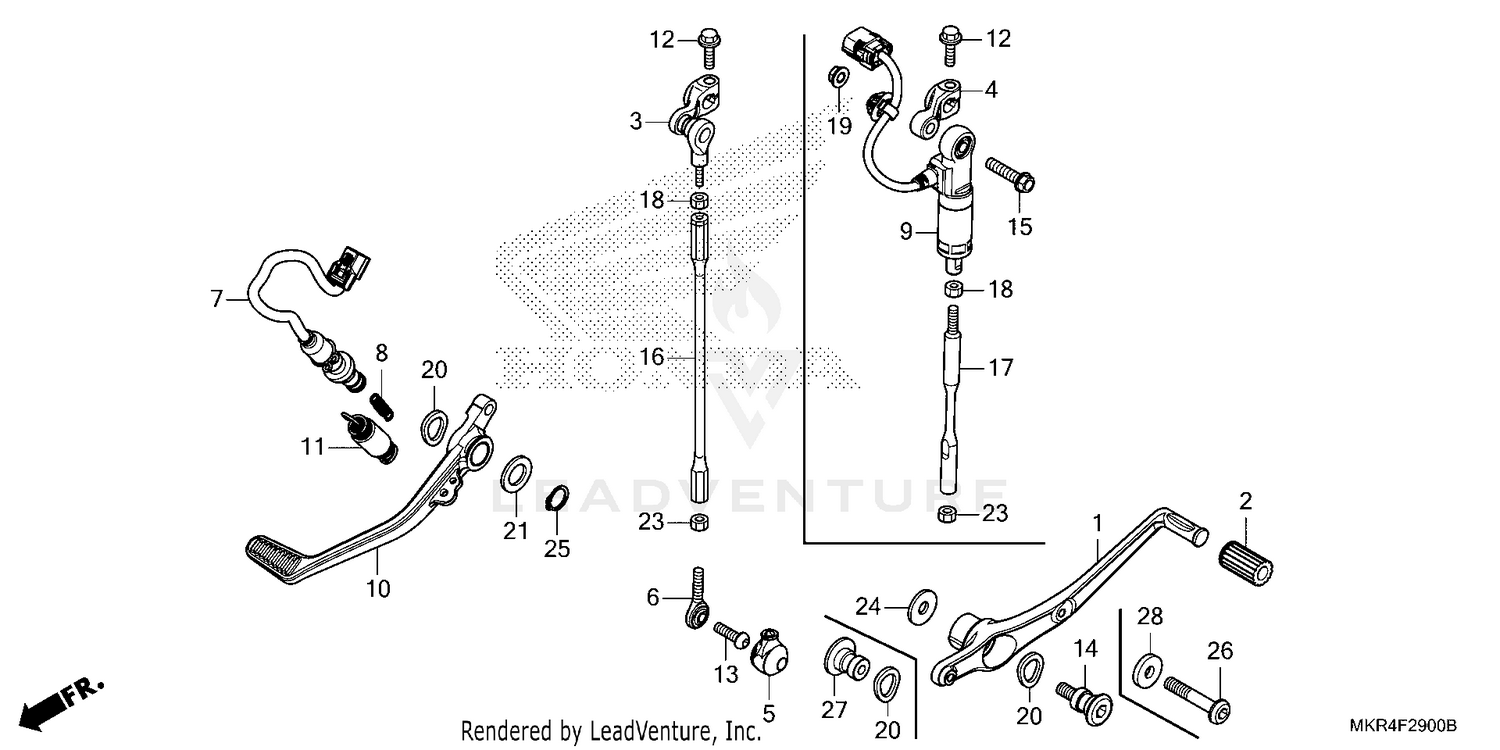

| Ref | Part Number | Description |
|---|
| 1 |
24701-MKR-D10 |
PEDAL, GEARSHIFT Price: $118.80 |
| 2 |
24705-MKR-D10 |
RUBBER, GEARSHIFT PEDAL Price: $3.82 |
| 4 |
24711-MKR-D30 |
ARM, GEARSHIFT Price: $38.75 |
| 5 |
24722-MKR-D10 |
COVER, DUST Price: $8.58 |
| 6 |
24723-MKR-D10 |
TIE ROD (A) Price: $60.02 |
| 7 |
35350-MKR-D11 |
SWITCH ASSY., RR. STOP Price: $37.36 |
| 8 |
35357-MBR-000 |
SPRING, STOP SWITCH Price: $2.73 |
| 9 |
36390-MKR-D31 |
SENSOR ASSY., STROKE Price: $1,428.29 |
| 10 |
46500-MKR-D10 |
PEDAL, RR. BRAKE Price: $150.40 |
| 11 |
46515-MKR-D10 |
SPRING ASSY., BRAKE PEDAL Price: $6.78 |
| 12 |
90021-MKF-D40 |
BOLT, FLANGE (6X20) Price: $2.49 |
| 13 |
90104-MGH-640 |
BOLT, SOCKET (6X22) Price: $3.40 |
| 15 |
90115-MKF-D60 |
BOLT, FLANGE (7X30) Price: $3.58 |
| 17 |
90165-MKR-D30 |
BAR, CHANGE Price: $27.95 |
| 18 |
90201-700-000 |
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) Price: $0.87 |
| 19 |
90202-KV3-000 |
NUT, FLANGE (7MM) Price: $2.42 |
| 20 |
90505-MBW-000 |
WASHER, CHANGE PEDAL WAVE Price: $5.05 |
| 21 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 23 |
94001-06080-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 25 |
94511-15000 |
CIRCLIP (OUTER) (15MM) Price: $0.78 |
