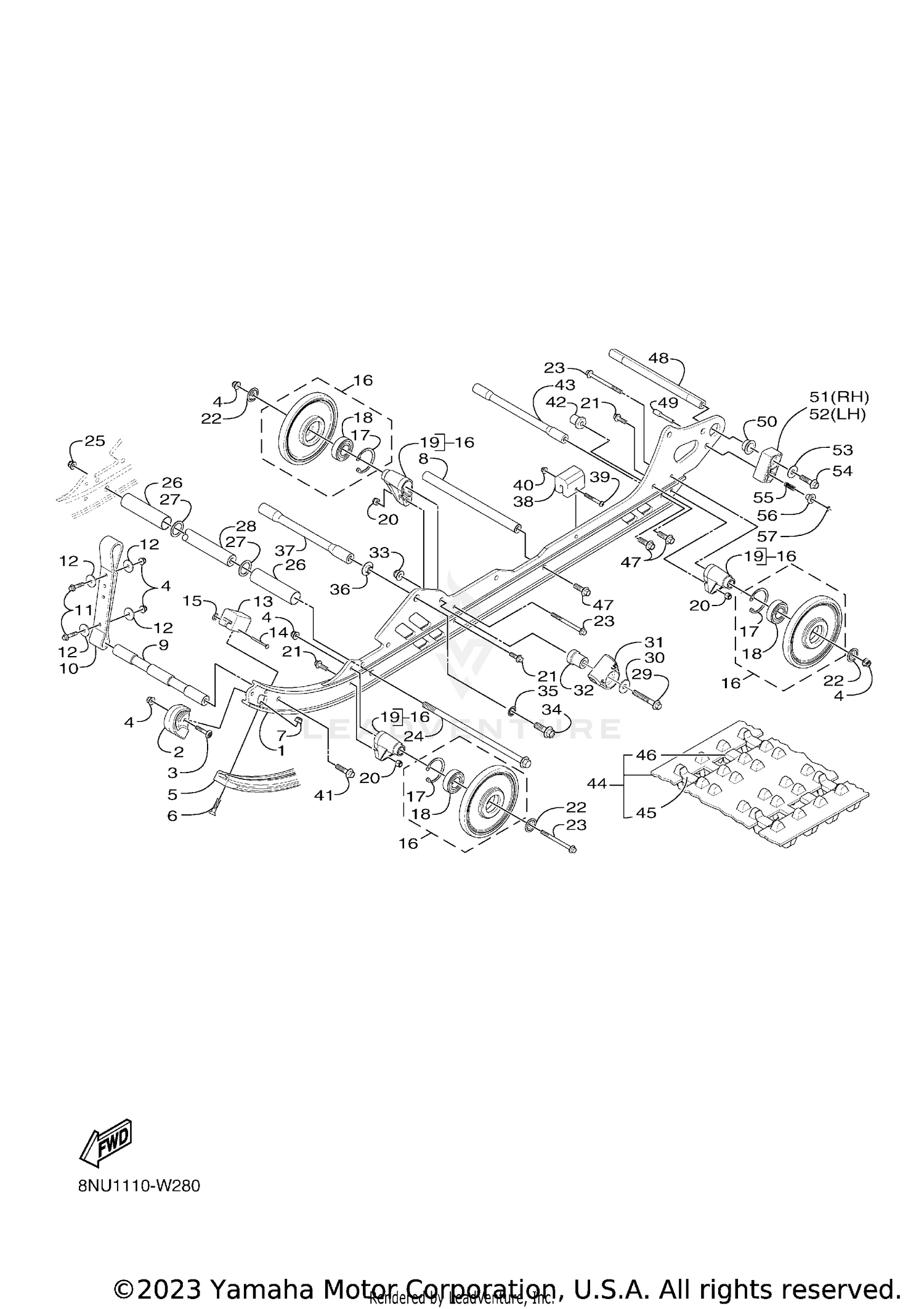

| Ref | Part Number | Description |
|---|
| 1 |
8NU-G741A-10-00 |
FRAME, SLIDING Price: $176.99 |
| 2 |
8JP-G7422-10-00 |
RUNNER, SLIDING 2 Price: $7.99 |
| 3 |
8JP-RA266-00-00 |
SCREW, M6X1.0X30 Price: $1.70 |
| 5 |
8NU-G7421-00-00 |
RUNNER, SLIDING 1 Price: $36.99 |
| 6 |
8JM-RA206-00-00 |
SCREW, 1/4-20X1.125 Price: $1.70 |
| 7 |
8JP-RA357-00-00 |
NUT, FLANGE LOCKING 1/4-20 Price: $0.65 |
| 8 |
8JR-G7337-10-00 |
SHAFT, PIVOT Price: $26.99 |
| 9 |
8JR-G7485-00-00 |
SHAFT 3 Price: $69.99 |
| 10 |
8KG-G7495-10-00 |
STOPPER 1 Price: $18.49 |
| 11 |
8JP-RA183-00-00 |
BOLT, FLANGE M6X1.0X30 Price: $1.50 |
| 12 |
8JP-RA450-00-00 |
WASHER, 6.87X25.4X2.32 Price: $0.95 |
| 13 |
8JM-G7456-00-00 |
DAMPER 1 Price: $9.49 |
| 14 |
8JM-RAY02-00-00 |
PIN, 2 Price: $1.35 |
| 15 |
8JP-RA346-00-00 |
NUT, 0.125 Price: $1.90 |
| 16 |
8JR-G7310-20-00 |
SUSPENSION WHEEL A Price: $51.99 |
| 17 |
8JM-RAH01-00-00 |
CIRCLIP, 2 Price: $9.49 |
| 18 |
8JM-RAY03-00-00 |
BEARING, 2 Price: $28.99 |
| 19 |
8JP-G7419-10-00 |
BRACKET 7 Price: $10.49 |
| 20 |
8JP-RA379-00-00 |
NUT, LOCK 1 Price: $0.65 |
| 21 |
8JP-RA1B6-00-00 |
BOLT, FLANGE 2 Price: $1.40 |
| 22 |
8JP-RA466-00-00 |
WASHER, 9 Price: $2.00 |
| 23 |
8JP-RA1B5-00-00 |
BOLT, FLANGE 1 Price: $4.30 |
| 24 |
8JP-RA194-10-00 |
BOLT, FLANGE M10-1.25X250 Price: $10.49 |
| 25 |
8JP-RA360-00-00 |
NUT, FLANGE LOCKING Price: $1.40 |
| 26 |
8JP-RA723-00-00 |
COLLAR, 11 Price: $18.49 |
| 27 |
8JP-RA437-00-00 |
WASHER, 0.890X1.19X0.060 Price: $1.35 |
| 28 |
8JP-RA729-00-00 |
COLLAR, 22.2 Price: $79.99 |
| 29 |
8JP-RA1B7-00-00 |
BOLT, HEXAGON Price: $1.70 |
| 30 |
8JP-RA452-00-00 |
WASHER, 9.12X25.40X2.30 Price: $0.60 |
| 31 |
8JP-G7446-00-00 |
HOOK 1 Price: $10.99 |
| 32 |
8JP-G7319-00-00 |
COLLAR Price: $15.99 |
| 33 |
8JM-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.15 |
| 34 |
8JP-RA199-00-00 |
BOLT, FLANGE M10X1.25X30 Price: $3.85 |
| 35 |
8JP-RA457-00-00 |
WASHER, TOOTH M10 Price: $0.65 |
| 36 |
8JP-RA725-00-00 |
COLLAR, 13 Price: $4.50 |
| 37 |
8JP-G7486-10-00 |
SHAFT 4 Price: $39.99 |
| 38 |
8JP-G7457-00-00 |
DAMPER 2 Price: $10.49 |
| 39 |
8JP-RA249-00-00 |
SCREW, M5X0.8X40 Price: $2.00 |
| 40 |
8JP-RA363-00-00 |
NUT, FLANGE LOCKING M5X0.8 Price: $1.35 |
| 41 |
8JP-RA189-00-00 |
BOLT, FLANGE M8X1.25X30 Price: $1.40 |
| 42 |
8JR-G7368-00-00 |
NUT Price: $7.49 |
| 43 |
8JR-G7488-00-00 |
SHAFT 6 Price: $70.99 |
| 44 |
8NN-G7110-00-00 |
TRACK ASSY Price: $1,047.99 |
| 45 |
8JP-G7113-00-00 |
PLATE, REINFORCEMENT Price: $5.49 |
| 46 |
8JP-G7115-00-00 |
METAL, SLIDE Price: $4.75 |
| 47 |
8JP-RA186-00-00 |
BOLT, FLANGE M8X1.25X25 Price: $0.65 |
| 48 |
8ND-G7337-00-00 |
SHAFT, PIVOT Price: $71.99 |
| 49 |
8ND-G5524-00-00 |
PIN Price: $52.99 |
| 50 |
8ND-G7538-00-00 |
BUSH Price: $25.99 |
| 51 |
8ND-G7496-00-00 |
STOPPER 2 Price: $19.99 |
| 52 |
8ND-G7495-00-00 |
STOPPER 1 Price: $19.99 |
| 53 |
8JP-RA462-00-00 |
WASHER, PLAIN Price: $1.15 |
| 54 |
8JP-RA198-00-00 |
BOLT, FLANGE M10X1.25X30 Price: $3.85 |
| 55 |
8ND-RAD02-00-00 |
SPRING, COMPRESSIO Price: $6.49 |
| 56 |
8ND-G7449-00-00 |
PIN 1 Price: $19.99 |
