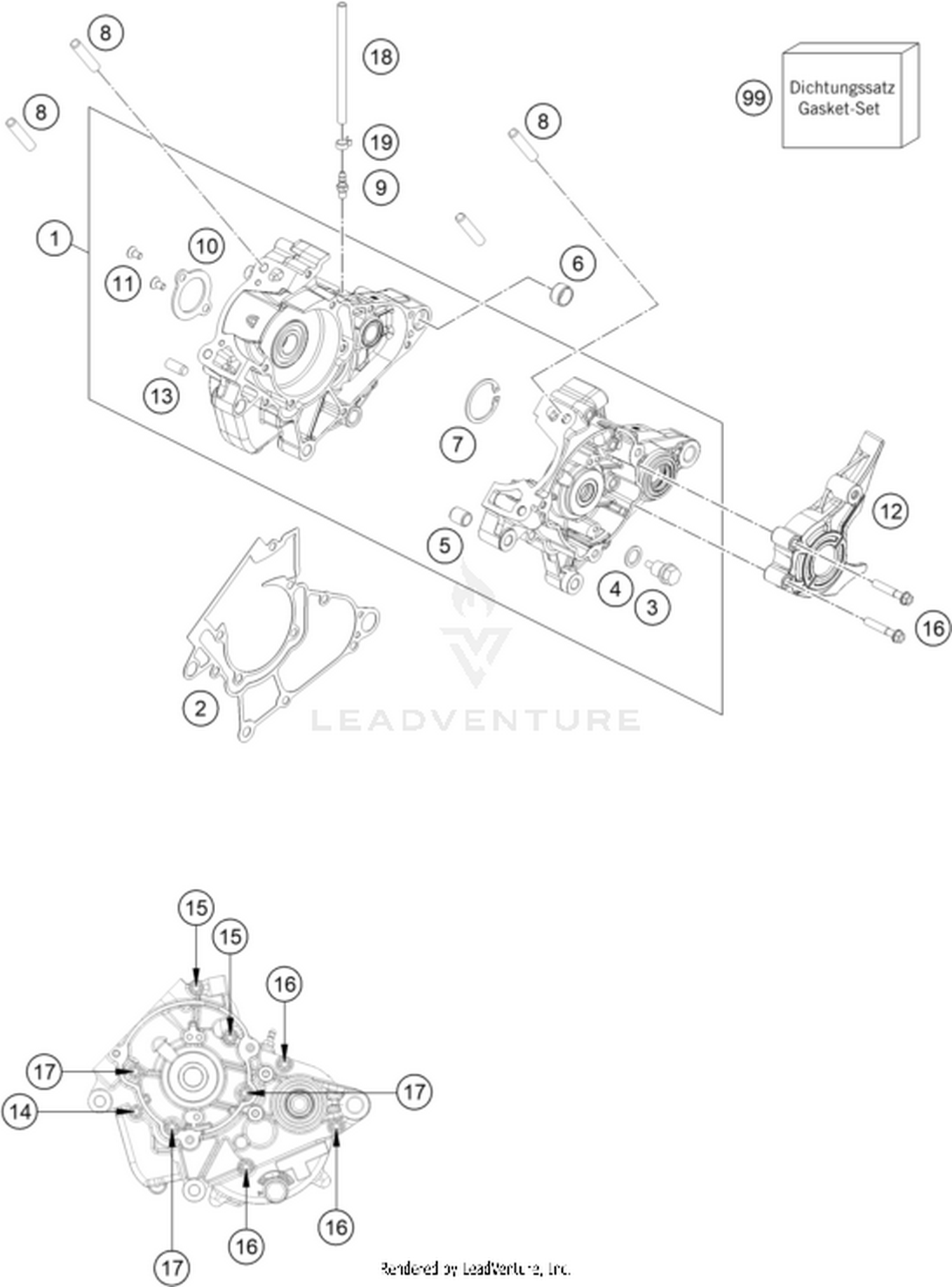

30 ENGINE CASE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A40030000044 | Motorhousing cpl. Price: Call Us |
| 2 | 45230039000 | ENGINE CASE GASKET Price: Call Us |
| 4 | 58038022000 | CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 5 | 46230024000 | DOWEL 12X9X14,5 Price: Call Us |
| 6 | 58330023000 | DOWEL 17 X 14 X 9,5 Price: Call Us |
| 7 | 0472035150 | CIRCLIP DIN0472-35X1,5 Price: Call Us |
| 8 | 46030043000 | STUD M8X41 Price: Call Us |
| 9 | 58336020190 | VACUUM CONECTION M6/3MM '97 Price: Call Us |
| 10 | 45230017000 | BEARING BRACKET Price: Call Us |
| 12 | A40003096000 | Front sprocket cover Price: Call Us |
| 13 | 0325080200 | CYLINDER STUD DIN6325 8X20 M6 Price: Call Us |
| 14 | 0025060356 | HH collar screw M6x35 TX30 Price: Call Us |
| 15 | 0025060556 | HH collar screw M6x55 TX30 Price: Call Us |
| 16 | 0025060306 | HH collar screw M6x30 TX30 Price: Call Us |
| 17 | 0025060406 | HH collar screw M6x40 TX30 Price: Call Us |
| 18 | 31007007101 | PVC-HOSE 4X6MM Price: Call Us |
| 19 | 45230089000 | YDNAC-CLAMP 10068 (6,8MM) Price: Call Us |
