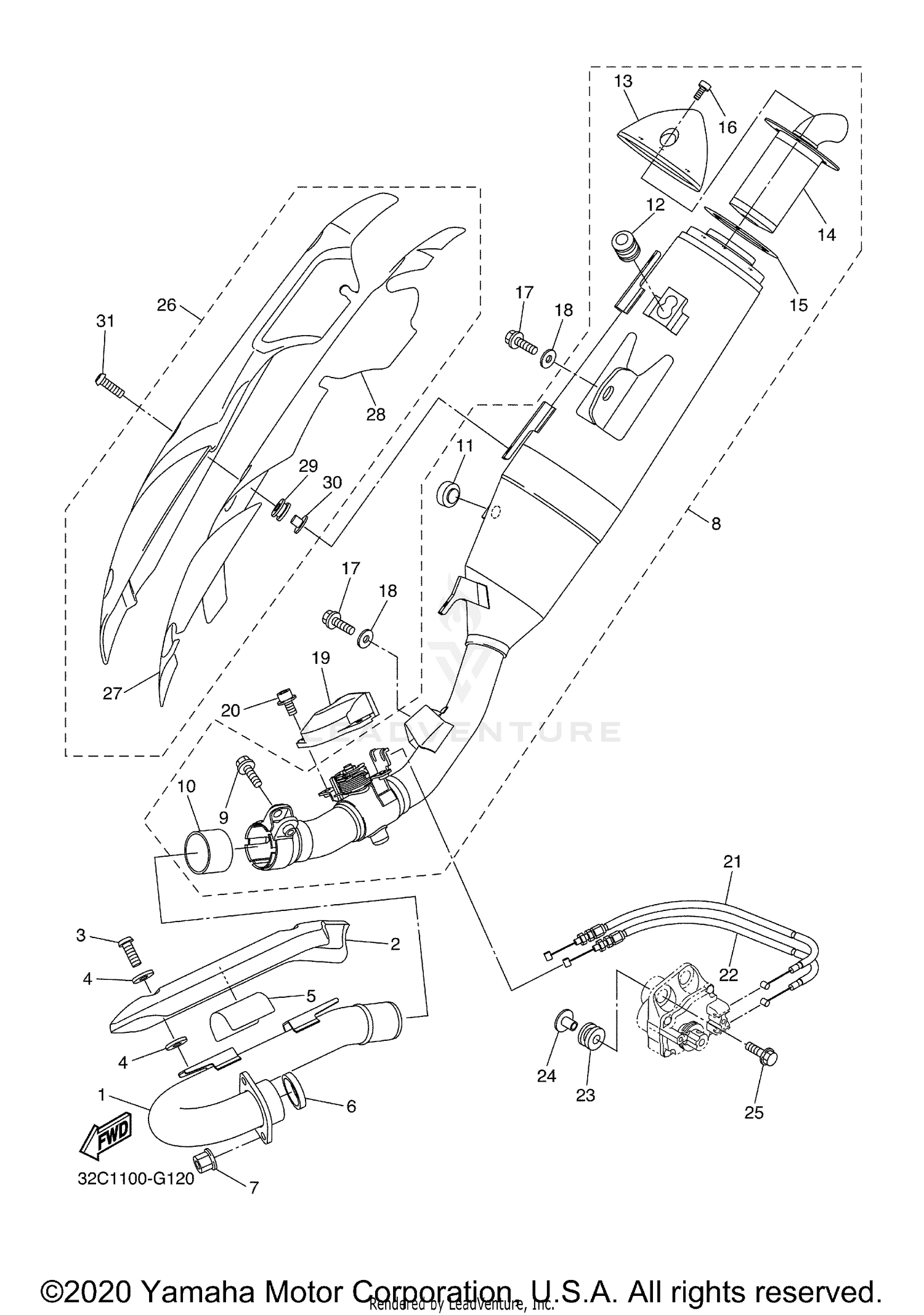

| Ref | Part Number | Description |
|---|
| 1 |
3D7-14611-00-00 |
PIPE, EXHAUST 1 Price: $200.99 |
| 2 |
3D7-14628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $124.99 |
| 3 |
98980-06012-00 |
SCREW, BIND Price: $9.49 |
| 4 |
90201-05015-00 |
WASHER, PLATE Price: $9.49 |
| 5 |
3D7-1465R-00-00 |
PLATE, PROTECTOR 1 Price: $4.75 |
| 6 |
4FM-14613-00-00 |
GASKET, EXHAUST PIPE Price: $13.49 |
| 7 |
90179-08410-00 |
NUT Price: $6.49 |
| 8 |
32C-14710-01-00 |
MUFFLER ASSY 1 Price: $1,053.99 |
| 9 |
95814-08035-00 |
BOLT, FLANGE This part replaces 95824-08035-00. Price: $9.49 |
| 10 |
5PX-14755-00-00 |
GASKET, SILENCER Price: $32.99 |
| 11 |
22W-24181-00-00 |
DAMPER, LOCATING 1 Price: $7.49 |
| 12 |
3D7-14737-00-00 |
DAMPER, MUFFLER Price: $11.99 |
| 13 |
32C-14799-00-00 |
CAP Price: $136.99 |
| 14 |
32C-14780-00-00 |
SPARK ARRESTER ASSY Price: $284.99 |
| 15 |
32C-14623-00-00 |
GASKET, EXHAUST PIPE Price: $36.99 |
| 16 |
91380-06012-00 |
BOLT Price: $1.99 |
| 17 |
95024-10016-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.00 |
| 18 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 19 |
3D7-14826-00-00 |
PROTECTOR, EXHAUST Price: $50.99 |
| 20 |
90119-06115-00 |
BOLT, WITH WASHER Price: $4.50 |
| 21 |
3D7-1133E-01-00 |
CABLE, PULLEY 1 Price: $56.99 |
| 22 |
3D7-1133F-01-00 |
CABLE, PULLEY 2 Price: $68.99 |
| 23 |
90480-14604-00 |
GROMMET Price: $9.49 |
| 24 |
90387-06158-00 |
COLLAR This part replaces 90387-063E6-00. Price: $9.49 |
| 25 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 27 |
3D7-14728-00-00 |
PROTECTOR, MUFFLER 2 Price: $11.99 |
| 28 |
3D7-14738-00-00 |
PROTECTOR, MUFFLER 3 Price: $36.99 |
| 29 |
90480-12581-00 |
GROMMET Price: $8.49 |
| 30 |
90387-087L0-00 |
COLLAR Price: $9.49 |
