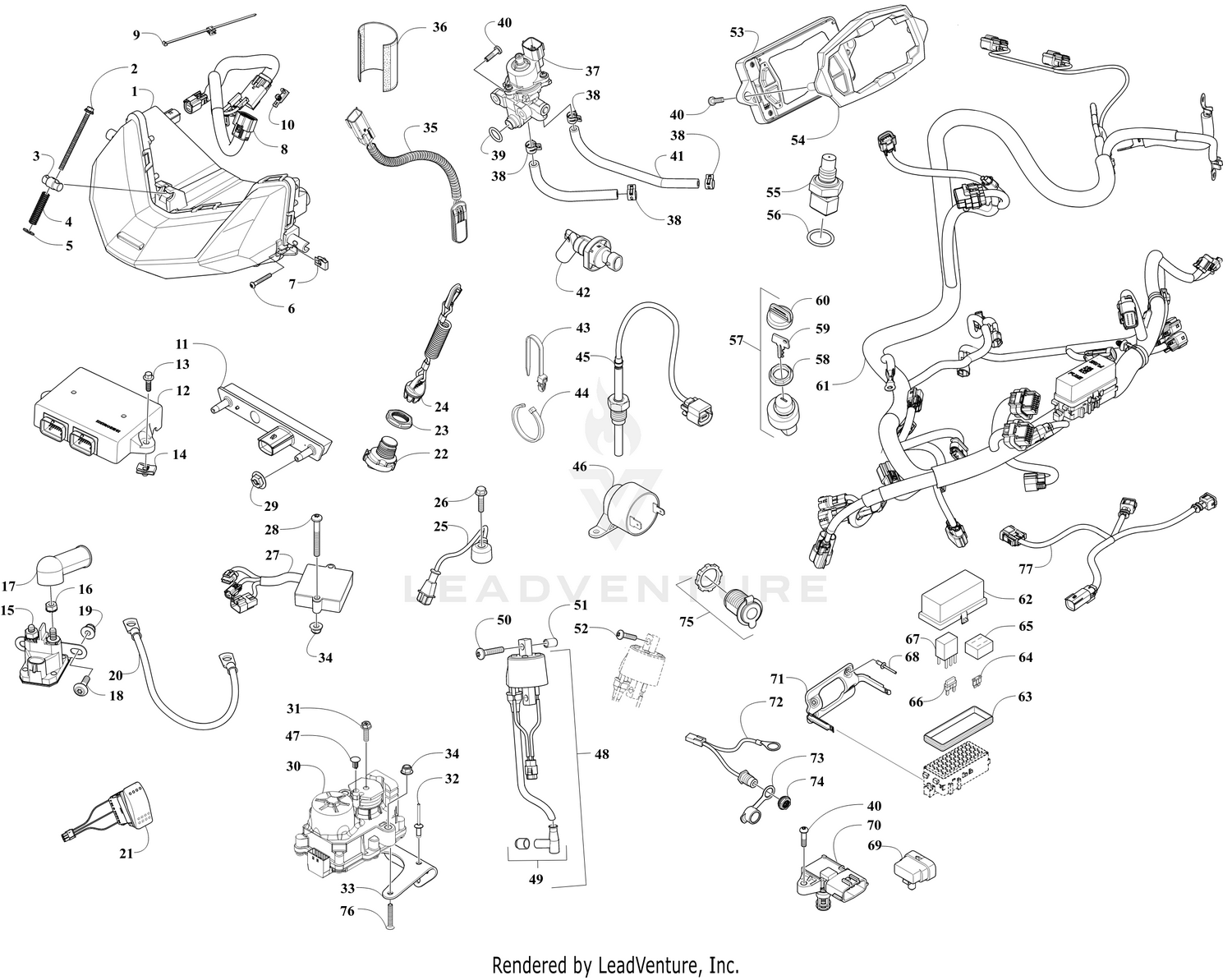

ELECTRICAL COMPONENTS [110931]

Parts (74)

Ref	Part Number	Description
1	1609-012	Headlight Assembly Price: $319.95
2	2623-256	Screw Price: $4.63
3	1616-318	Nut, Barrel - Headlight Adjustment Price: $3.49
4	0623-466	Spring, Adjuster Price: $7.08
5	8050-223	Washer Price: $0.35
6	8468-535	Screw, Machine Price: $1.07
7	1623-637	Clip, U-Nut Price: $2.61
9	2623-273	Clip, Edge - Cable Tie Price: $2.43
10	1623-715	Clip, Anti-Rotational Price: $3.26
11	1609-016	Taillight Assembly Price: $27.95
12	0730-437	ECM (VIN IS REQUIRED FOR ORDERING A REPLACEMENT) Price: $896.95
13	8408-625	Screw, Cap Price: $0.59
14	0423-577	Clip, U-Nut Price: $0.46
15	0645-835	Solenoid, Starter Relay Price: $37.95
16	0623-038	Nut Price: $0.35
17	0645-327	Boot, Terminal Price: $1.92
18	8408-616	Screw, Cap Price: $0.59
19	8427-602	Nut, Hex Price: $0.23
20	0645-881	Cable, Solenoid/Starter Price: $47.95
22	0630-355	Switch, Tether Price: $69.95
23	0630-354	Nut, Retaining Price: $1.70
24	0630-356	Tether Cord Price: $40.95
25	0902-024	Sensor, Knock Price: $72.95
26	0923-049	Screw, Cap Price: $2.39
27	0630-401	Regulator/Rectifier Price: $169.95
28	8470-540	Screw, Machine Price: $1.45
29	0423-357	NUT, STAMPED-1/4" (SD 25001 SOH) Price: $1.08
30	0902-056	Servomotor Price: $428.95
31	8408-516	Screw, Cap Price: $1.92
32	1623-241	Rivet Price: $2.05
33	0608-857	Bracket, Servomotor Price: $14.55
34	8427-502	Nut, Lock Price: $1.07
35	0730-172	Kit, Speedometer Sensor Price: $85.95
36	5706-138	Wrap, Harness Price: $22.99
37	0910-004	Controller, Idle Speed Price: $342.95
38	1623-278	Clamp, Hose Price: $1.19
39	2623-090	O-Ring Price: $7.23
40	1623-933	Screw, Self-Tapping Price: $0.35
41	2670-687	Hose, ISC Price: $9.79
41	2670-688	Hose, ISC Price: $10.95
42	0609-915	Switch, Level - Oil Price: $53.95
43	0623-677	Tie, Cable - Push Mount Price: $1.18
44	0123-788	Tie, Cable - 8 in Price: $0.23
44	0123-903	Tie, Cable Price: $0.59
45	0630-330	Sensor, Exhaust Temperature Price: $226.95
46	0630-372	Alarm, Reverse Price: $79.95
47	2623-347	Clip Price: $0.65
49	3006-367	Cap, Spark Plug Price: $29.95
51	2623-343	Spacer, Coil Price: $2.29
53	0720-073	Gauge LCD Price: $299.95
54	1616-266	Bezel, Gauge Price: $8.70
55	0824-051	Sensor, Coolant Temp Price: $20.56
56	0930-068	O-Ring Price: $0.59
57	0609-721	Switch, Ignition Price: $28.95
58	0430-050	Nut, Retaining Price: $2.05
59	0430-042	Key, Ignition- Y series- Left side cut Price: $7.23
59	0430-043	Key, Ignition- Z series- Right side cut Price: $7.23
60	0430-054	Cover, Key Price: $16.92
62	0430-085	Cover, Fuse Block Price: $7.23
63	0430-086	Seal Price: $3.02
64	0430-030	Fuse - 30 Amp Price: $6.95
64	0430-098	FUSE,MINI-20A Price: $3.14
65	0430-037	Holder, Fuse Price: $3.26
66	0430-034	Diode Price: $18.13
67	0630-390	Relay (5-Pin) - 30 Amp Price: $36.95
68	8060-686	Rivet - Zinc Price: $0.46
69	0430-103	Cover, Diagnostics Connector Price: $16.92
70	0824-052	Sensor, T-MAP Price: $237.95
71	0645-653	Bracket, Mounting - Fuse Block Price: $22.99
72	0609-940	Outlet, Heated Shield Price: $38.95
73	0609-944	Nut, Retaining Price: $3.38
74	0609-945	Cover, Outlet - Shield Price: $2.66
75	0445-157	Outlet, Accessory - 12V Price: $31.95
76	1423-540	SCREW,MACH-TORX M5X0.8X30 Price: $0.96
