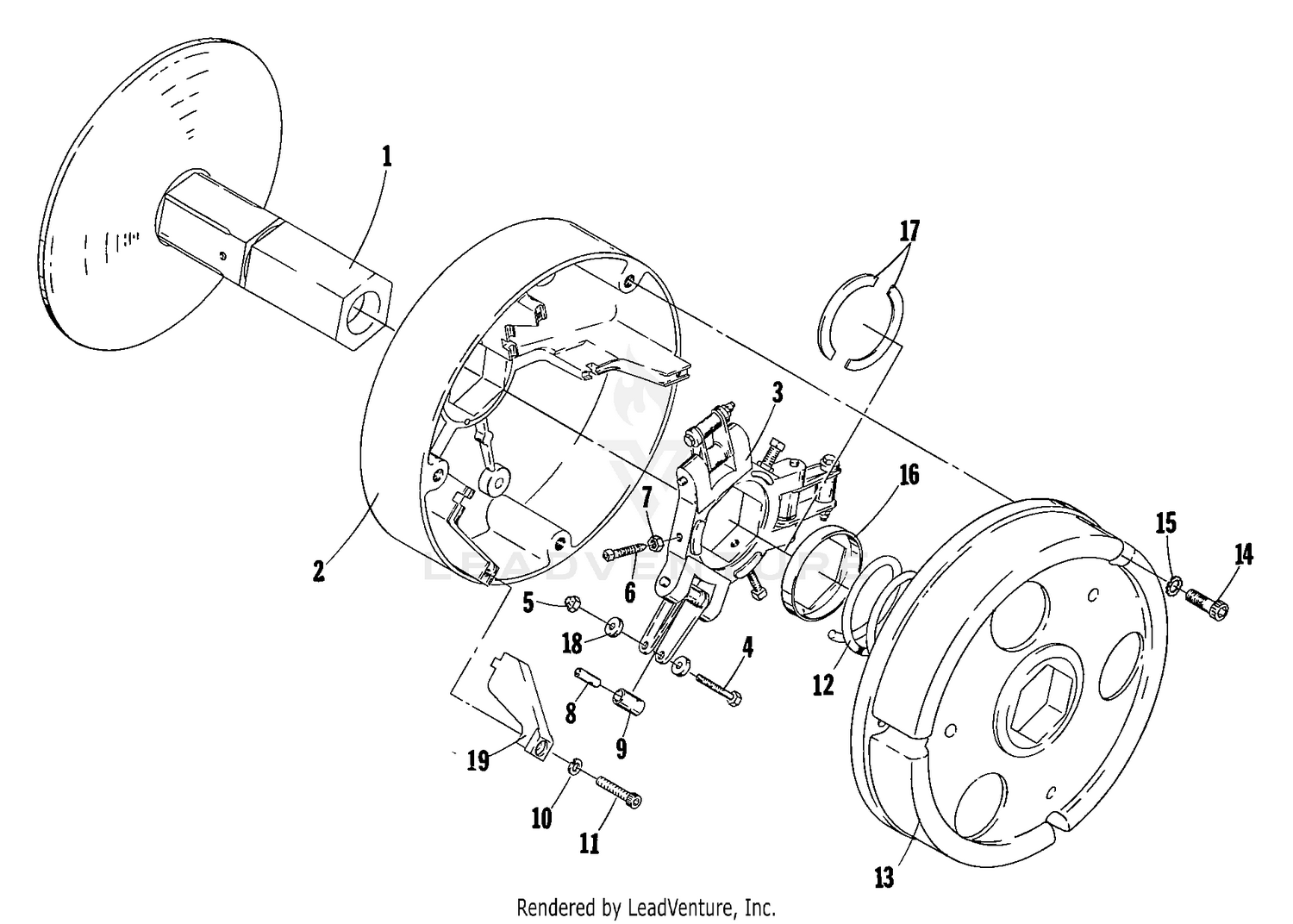

DRIVE CLUTCH [54876] — Parts Catalog

Ref	Part Number	Description
1	0146-499	Sheave, Stationary Price: $63.95
2	0746-013	Sheave, Movable Price: $282.95
4	0146-146	Pin Price: $8.21
5	0123-430	Nut, Lock Price: $2.91
6	0123-622	Set Screw Price: $2.24
7	8042-246	NUT,10-24 HEX-REG-GR5 Z&Y Price: $0.09
8	0146-703	BUSHING,UPPER-CLUTCH Price: $12.93
9	0146-421	ROLLER ASS'Y Price: $35.95
10	8051-123	WASHER,SPR LOCK-#8 .167X.293X.040 BLK Price: $0.09
11	8005-341	SCREW, CAP-HSH 8-32X.875 Z&B Price: $1.80
12	0146-068	Spring Price: $32.95
13	0146-392	HOUSING & BEARING Price: $177.95
14	8005-611	SCREW, CAP-HSH 5/16-18X.875 Z&B Price: $0.29
15	8053-242	Washer, External Tooth Lock Price: $1.53
16	0146-267	Washer, Cup Price: $3.59
17	0146-212	Ring, Split Price: $10.58
18	0146-123	WEIGHT, CLUTCH (4,000-8,000 FT ALT.) Price: $4.35
