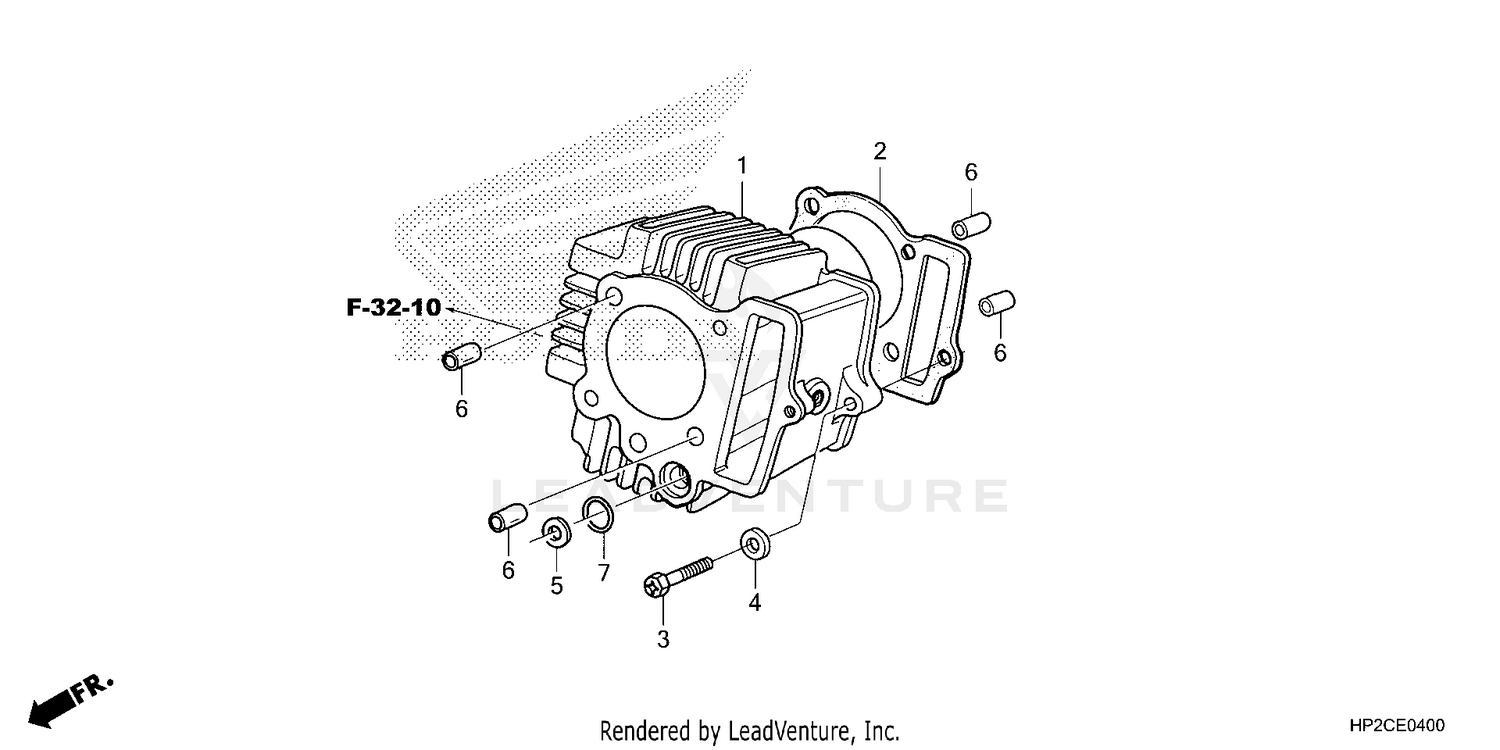

CYLINDER
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12101-HP2-770 | CYLINDER Price: $178.98 |
| 2 | 12191-HP2-670 | GASKET, CYLINDER Price: $9.36 |
| 3 | 90082-459-305 | BOLT, SEALING (6MM) Price: $2.67 |
| 4 | 90463-ML7-000 | WASHER, SEALING (6.5MM) Price: $3.53 |
| 5 | 90603-GB0-911 | COLLAR (14.8MM) Price: $3.89 |
| 6 | 90701-GF6-000 | PIN, DOWEL (8X14) Price: $5.24 |
| 7 | 91301-GF6-003 | O-RING (14.5MM) This part replaces 91301-GB0-911. Price: $8.40 |
