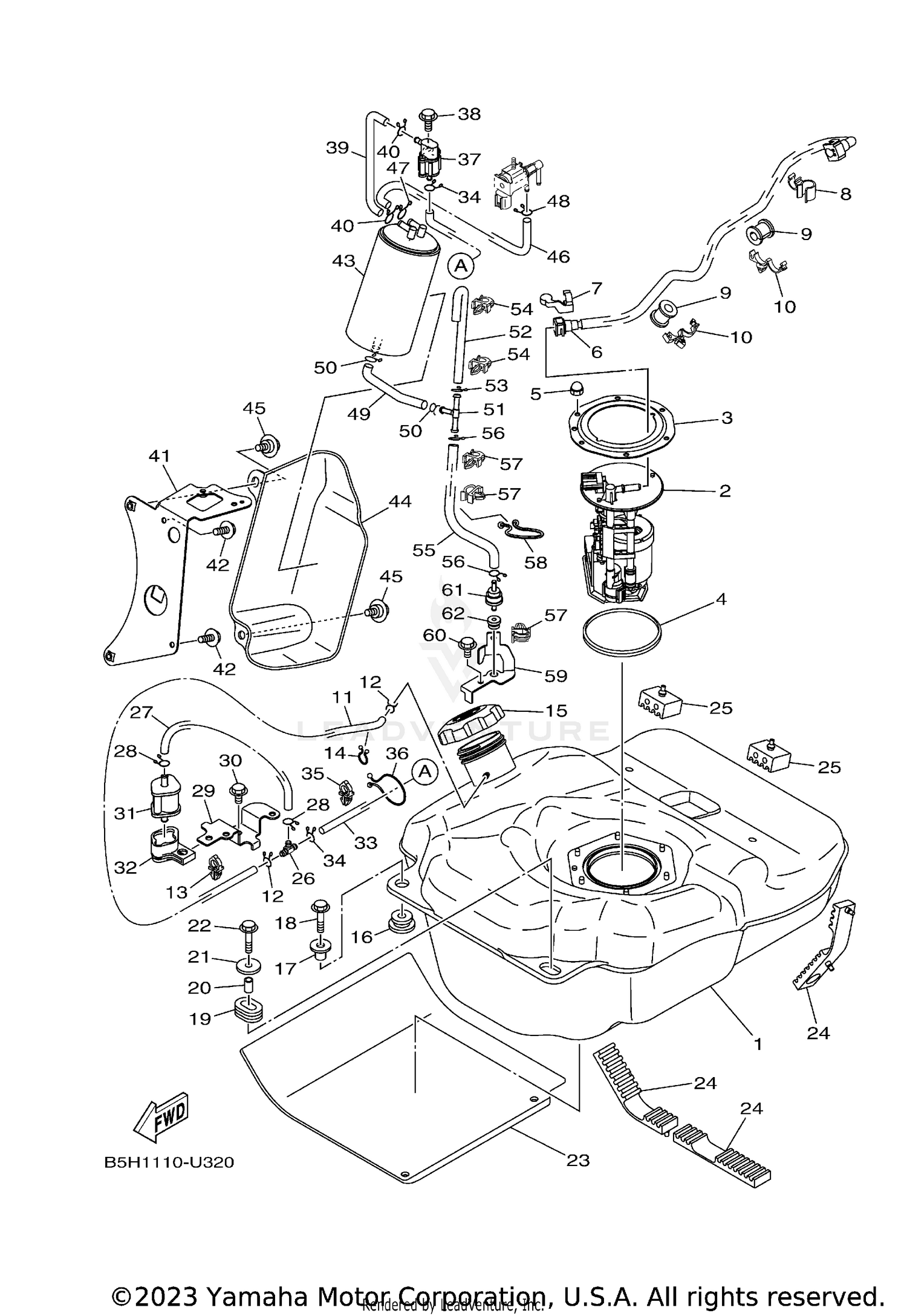

| Ref | Part Number | Description |
|---|
| 1 |
2HC-F4110-00-00 |
FUEL TANK COMP. Price: $228.99 |
| 2 |
B16-13907-03-00 |
FUEL PUMP COMP. This part replaces B16-13907-00-00. Price: $505.99 |
| 3 |
3B4-24491-00-00 |
BRACKET, FUEL PUMP Price: $22.99 |
| 4 |
1S3-24486-00-00 |
O-RING Price: $18.99 |
| 5 |
95380-06800-00 |
NUT, CROWN This part replaces 95302-06800-00. Price: $9.49 |
| 6 |
2HC-13971-02-00 |
PIPE, FUEL 1 This part replaces 2HC-13971-01-00. Price: $104.99 |
| 7 |
90464-14004-00 |
CLAMP Price: $8.49 |
| 8 |
90464-15007-00 |
CLAMP Price: $6.75 |
| 9 |
90480-20543-00 |
GROMMET Price: $9.49 |
| 10 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 11 |
B5H-F41B5-00-00 |
TUBE 2 Price: $29.99 |
| 12 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 13 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 14 |
90464-12M48-00 |
CLAMP Price: $4.60 |
| 15 |
BVG-24610-00-00 |
CAP ASSY This part replaces 2P5-24610-00-00. Price: $32.99 |
| 16 |
90480-18016-00 |
GROMMET Price: $9.49 |
| 17 |
90387-075H4-00 |
COLLAR Price: $9.49 |
| 18 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95802-06030-00. Price: $4.65 |
| 19 |
90480-01400-00 |
GROMMET Price: $14.49 |
| 20 |
90387-061V1-00 |
COLLAR (2UJ) Price: $9.49 |
| 21 |
90201-065G8-00 |
WASHER, PLATE Price: $9.49 |
| 22 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95802-06030-00. Price: $4.65 |
| 23 |
2HC-F414H-00-00 |
DAMPER, PLATE 1 Price: $14.99 |
| 24 |
2HC-F4181-00-00 |
DAMPER, LOCATING 1 Price: $4.50 |
| 25 |
2MB-F4182-00-00 |
DAMPER, LOCATING 2 Price: $3.45 |
| 26 |
90413-06031-00 |
WAY 3 Price: $9.49 |
| 27 |
90445-09029-00 |
HOSE This part replaces 90445-09028-00. Price: $26.99 |
| 28 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 29 |
B5H-F8468-00-00 |
BRKT. 7 Price: $3.40 |
| 30 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 31 |
3B4-24380-11-00 |
PIPE JOINT ASSY Price: $48.99 |
| 32 |
3B4-24398-00-00 |
BAND 1 Price: $9.49 |
| 33 |
90445-09837-00 |
HOSE (L1220) Price: $29.99 |
| 34 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 35 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 36 |
90464-37257-00 |
CLAMP Price: $2.40 |
| 37 |
28P-24380-00-00 |
PIPE JOINT ASSY Price: $43.99 |
| 38 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95802-06014-00. Price: $2.80 |
| 39 |
B5H-F247A-00-00 |
HOSE 1 Price: $4.80 |
| 40 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 41 |
B5H-F4190-02-00 |
CANISTER HOLDER ASSY Price: $18.49 |
| 42 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 43 |
7CC-F4170-11-00 |
CANISTER ASSY This part replaces 7CC-F4170-01-00. Price: $34.99 |
| 44 |
B5H-F419E-00-00 |
COVER, CANISTER Price: $6.99 |
| 45 |
90109-06202-00 |
BOLT Price: $3.10 |
| 46 |
B5H-F247C-00-00 |
HOSE 3 Price: $5.49 |
| 47 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 48 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 49 |
90445-11052-00 |
HOSE (L170) Price: $24.99 |
| 50 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 51 |
90413-08012-00 |
WAY 3 Price: $4.90 |
| 52 |
B5H-F247D-00-00 |
HOSE 4 Price: $10.49 |
| 53 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 54 |
90464-14M55-00 |
CLAMP Price: $2.55 |
| 55 |
90445-11053-00 |
HOSE (L400) Price: $24.99 |
| 56 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 57 |
90464-14M55-00 |
CLAMP Price: $2.55 |
| 58 |
90464-44109-00 |
CLAMP Price: $3.95 |
| 59 |
B5H-F2957-00-00 |
BRACKET, HOSE Price: $5.99 |
| 60 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 61 |
BG4-24362-00-00 |
VALVE, CHECK 1 Price: $45.99 |
