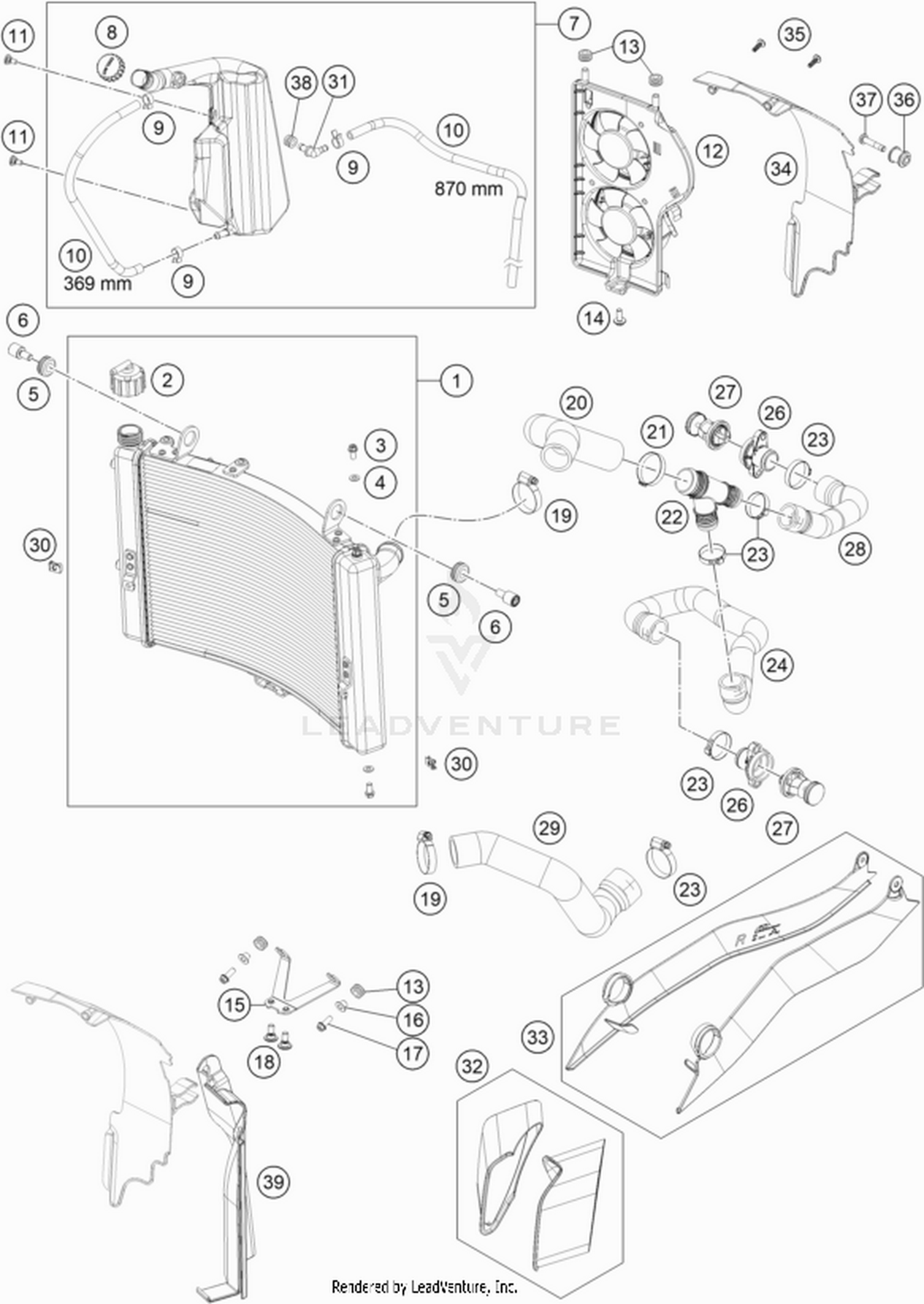

35 COOLING SYSTEM
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60335010200 | Water Cooler Price: Call Us |
| 2 | 62535009000 | RADIATOR CAP 1,4 BAR Price: Call Us |
| 3 | 0025060126 | HH collar screw M6x12 TX30 Price: Call Us |
| 4 | 60035048000 | ALU-GASKET 6X10X1.5 Price: Call Us |
| 5 | 41001052000 | RUBBER SLEEVE D=12MM Price: Call Us |
| 6 | 69035001000 | STUD BOLT M6 11X11 ISA45 Price: Call Us |
| 8 | 60335066044 | Latch, compens. tank cpl. Price: Call Us |
| 9 | 58007117000 | YDNAC-CLAMP 10107 10MM Price: Call Us |
| 10 | 60035067001 | HOSE 6X10 EPDM 03 Price: Call Us |
| 12 | 60335044033 | FAN COVER CPL. Price: Call Us |
| 14 | 0024060156 | HH collar screw M6x15 TX30 Price: Call Us |
| 15 | 60335005000 | MOUNTING PLATE COOLER BOTTOM Price: Call Us |
| 16 | 75014010050 | COLLAR BUSHING 6,1X8,1X14X8 07 Price: Call Us |
| 17 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
| 18 | 0025050106 | HH collar screw M5x10 TX30 Price: Call Us |
| 19 | 54305058000 | HOSE CLAMP 30-45 SGT Price: Call Us |
| 20 | 60335026000 | PREFORMED HOSE Price: Call Us |
| 21 | 00050396706 | VARIABLE ONE-EAR CLAMP 39,6MM Price: Call Us |
| 22 | 60335193000 | Y-piece This part replaces 60335093000. Price: Call Us |
| 23 | 00050331706 | Stufenlose Einohrklemme 33,1mm Price: Call Us |
| 24 | 60335025000 | PREFORMED HOSE Price: Call Us |
| 26 | 61235019100 | WATER CONNECTION CPL. Price: Call Us |
| 27 | 61235017000 | THERMOSTAT 70 DEGREE Price: Call Us |
| 28 | 60335024000 | PREFORMED HOSE Price: Call Us |
| 29 | 60335027000 | PREFORMED HOSE Price: Call Us |
| 30 | 54603048200 | RANGE CHANGE METAL NUT M5 Price: Call Us |
| 32 | 60408052044 | AIR DEFLECTOR KIT TANK Price: Call Us |
| 33 | 60308053144 | AIR DEFLECTOR KIT SEAT Price: Call Us |
| 34 | 60308056000 | AIR DEFLECTOR FAN Price: Call Us |
| 35 | 0081050181 | SCREW FOR PLASTIC K50X18 T20 Price: Call Us |
| 36 | 60308056010 | RETAINING SLEEVE Price: Call Us |
| 37 | 0035100509S | AH collar screw M10x50 ISA45 Price: Call Us |
