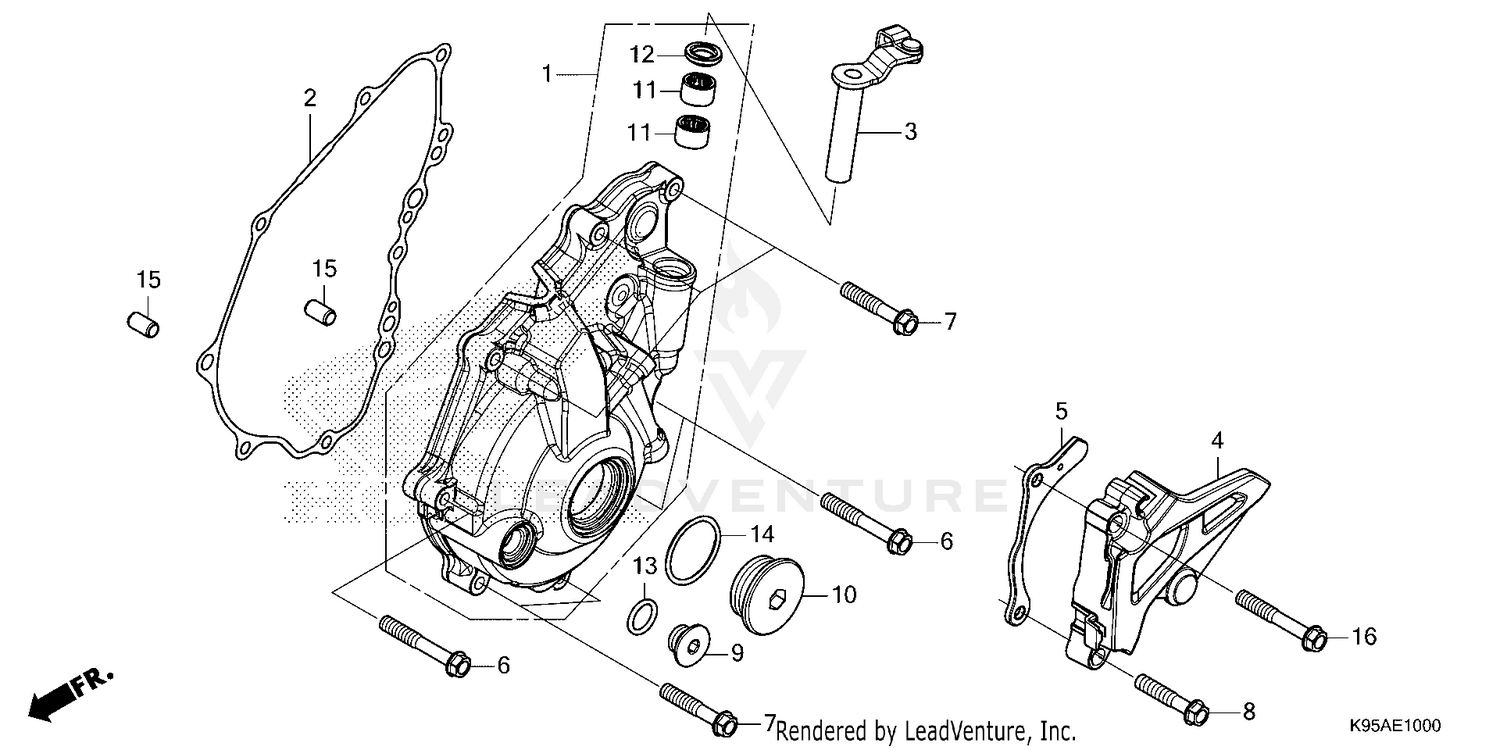

LEFT CRANKCASE COVER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11340-K95-AA0 | COVER, L. CRANKCASE Price: $184.44 |
| 2 | 11395-K95-A21 | GASKET, L. COVER Price: $20.44 |
| 3 | 22810-K95-AA1 | LEVER COMP This part replaces 22810-K95-AA0. Price: $49.11 |
| 4 | 23810-K95-A60 | COVER, DRIVE SPROCKET Price: $27.96 |
| 5 | 23812-K95-AA0 | GUIDE, DRIVE CHAIN Price: $12.89 |
| 6 | 90020-GHB-740 | BOLT, FLANGE (6X40) Price: $3.04 |
| 7 | 90020-GHB-710 | BOLT, FLANGE (6X32) Price: $3.04 |
| 8 | 90021-GHB-700 | BOLT, FLANGE (6X30) Price: $2.65 |
| 9 | 90085-K95-AA0 | CAP (14MM) Price: $11.58 |
| 10 | 90087-K95-AA0 | CAP (32MM) Price: $20.04 |
| 11 | 91101-PZ9-000 | BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005. Price: $10.51 |
| 12 | 91205-MEB-671 | OIL SEAL (12X18X3) (ARAI) Price: $4.33 |
| 13 | 91303-377-000 | O-RING (13.8X2.5) Price: $4.29 |
| 14 | 91305-KRM-840 | O-RING (31.7X2.4) Price: $1.58 |
| 15 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
