| Ref | Part Number | Description |
|---|
| 1 |
12200-K0S-V00 |

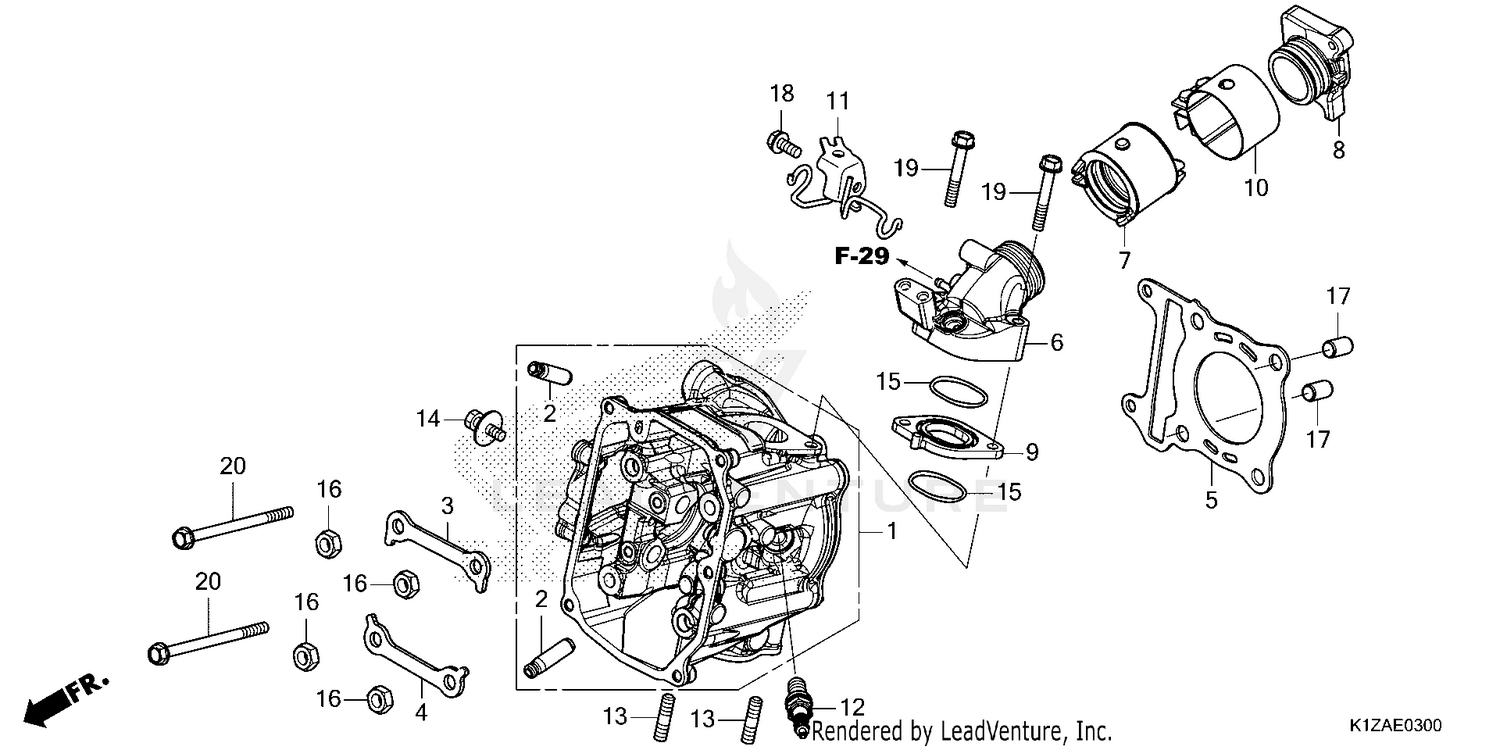

CYLINDER HEAD Price: $99.95 |
| 2 |
12205-KYJ-305 |
GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) Price: $23.31 |
| 3 |
12212-K0R-V00 |
PLATE, CYLINDER HEAD IN. Price: $2.07 |
| 4 |
12213-K0R-V00 |
PLATE, CYLINDER HEAD EX. Price: $1.65 |
| 5 |
12251-K1Z-J11 |
GASKET, CYLINDER HEAD (NIPPON LEAKLESS) Price: $2.76 |
| 6 |
17110-K0S-V00 |
PIPE, INLET Price: $23.53 |
| 7 |
17112-K0R-V00 |
INSULATOR, THROTTLE BODY Price: $2.99 |
| 8 |
17115-K0R-V00 |
PIPE B, INLET Price: $5.10 |
| 9 |
17119-K0R-V10 |
INSULATOR, IN. PIPE Price: $2.31 |
| 10 |
17255-K0R-V00 |
BAND, INSULATOR Price: $4.50 |
| 11 |
17533-K1Z-J50 |
CLAMP, CABLE Price: $2.36 |
| 12 |
31917-K0R-V01 |
SPARK PLUG (LMAR8L-9) (NGK) Price: $15.84 |
| 13 |
90004-KGF-910 |
BOLT, STUD (7X17) Price: $2.42 |
| 14 |
90022-K40-F00 |
BOLT-WASHER (6X12) Price: $0.22 |
| 15 |
91302-K40-F00 |
O-RING, IN. PIPE Price: $0.56 |
| 16 |
94030-08280 |
NUT, HEX. (8MM) Price: $0.92 |
| 17 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 18 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 19 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
