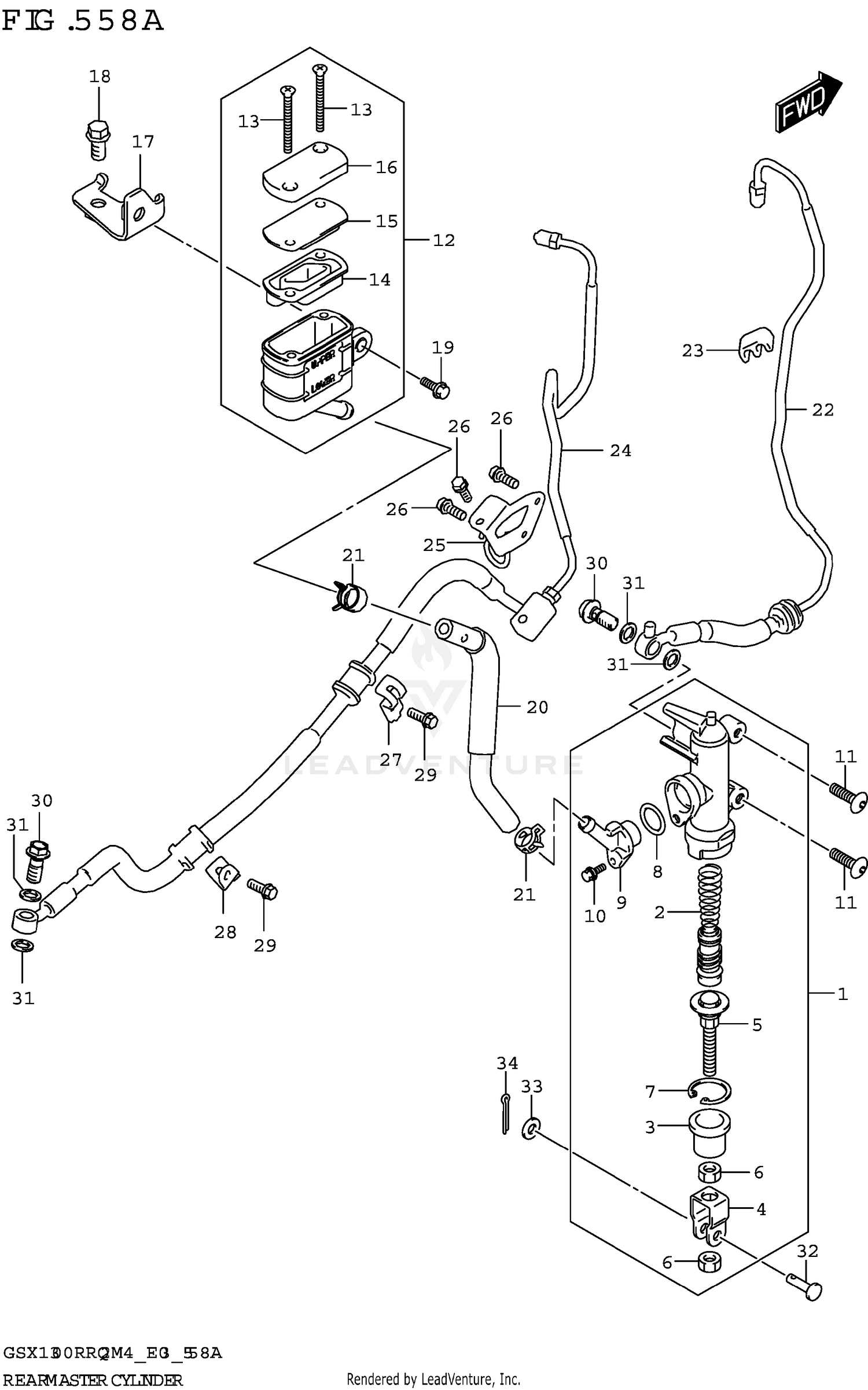

REAR MASTER CYLINDER
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69600-08J10 | CYLINDER ASSY,REAR MASTER Price: $161.59 |
| 11 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 12 | 69740-06L00 | TANK ASSY,RESERVOIR Price: $33.28 |
| 17 | 69750-10L00 | BRACKET,RR RESERVOIR TANK Price: $11.72 |
| 18 | 01547-0612A | BOLT Price: $2.45 |
| 19 | 01550-0616A | BOLT Price: $2.37 |
| 20 | 69730-10L00 | HOSE,RR RESERVOIR TANK Price: $20.08 |
| 21 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 22 | 69200-10L00 | HOSE ASSY,RR BK MASTER TO UNI Price: $72.49 |
| 23 | 09403-06324 | CLAMP Price: $2.48 |
| 24 | 69400-10L00 | HOSE ASSY,UNIT TO RR BK CLPR Price: $97.83 |
| 25 | 69260-15H00 | CLAMP,RR BRAKE HOSE Price: $10.51 |
| 26 | 01547-0616A | BOLT Price: $2.45 |
| 27 | 69275-15H00 | CLAMP,RR BRAKE HOSE NO.1 Price: $5.48 |
| 28 | 69268-15H10 | CLAMP,REAR BRAKE HOSE Price: $8.47 |
| 29 | 01547-0616B | BOLT Price: $2.94 |
| 30 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 31 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 32 | 09200-06068 | PIN (6X18.2) This part replaces 09200-06037. Price: $5.01 |
| 33 | 08322-0106A | WASHER Price: $2.22 |
