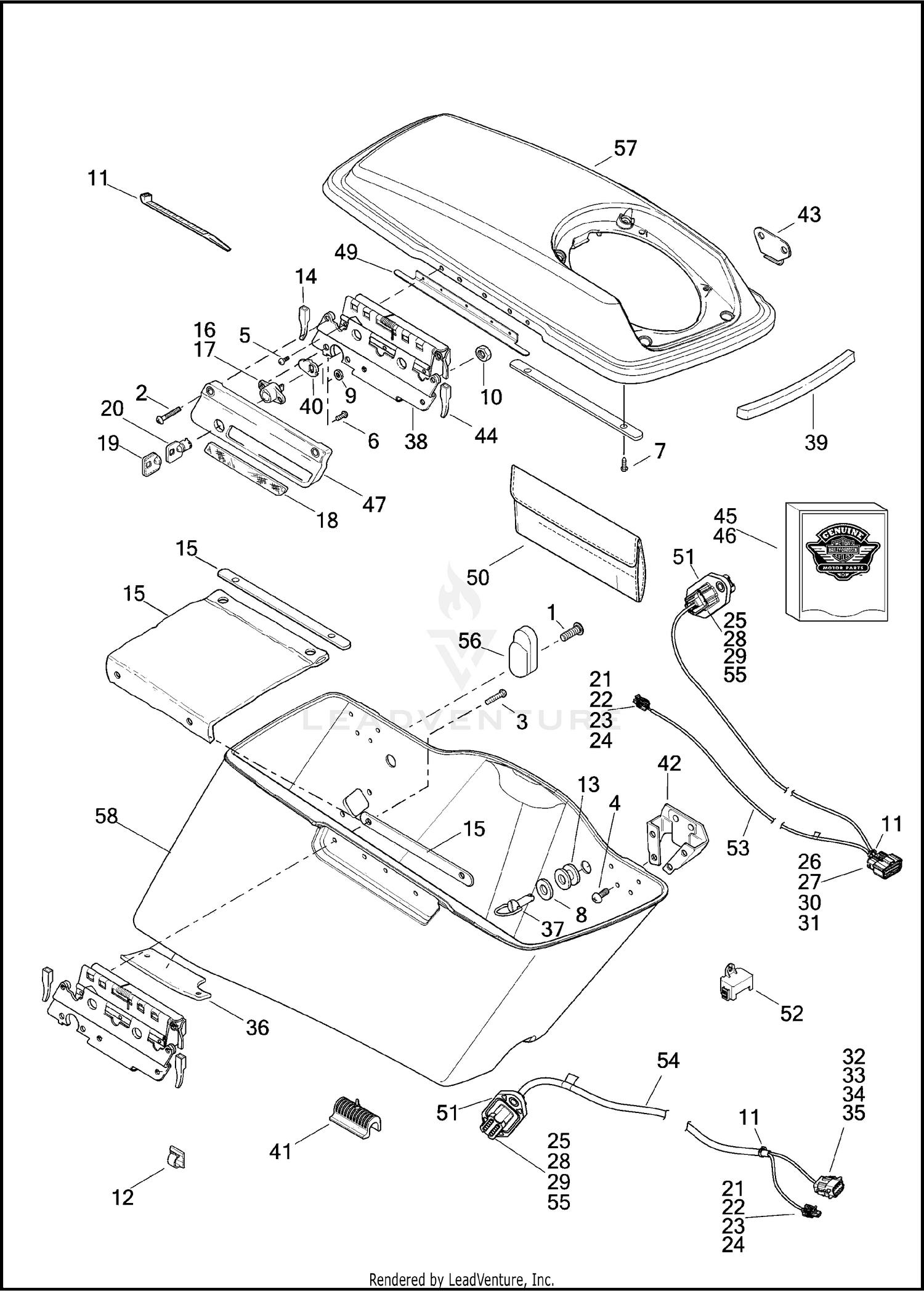

| Ref | Part Number | Description |
|---|
| 1 |
940 |
SCREW 1/4-20 X 3/4 TORX BUTTON HD. Price: $1.22 |
| 2 |
2524B |
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING Price: $0.59 |
| 3 |
3592A |
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS) Price: $0.59 |
| 4 |
3593 |
SCREW NO. 8-32 X 5/16 TORX TRUSS HD. Price: $1.82 |
| 5 |
3595 |
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH Price: $0.59 |
| 6 |
3656 |
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5) Price: $0.59 |
| 7 |
5233 |
SCREW #10-16 X 1/2 HI-LO, TORX HD T-25 Price: $1.49 |
| 8 |
6229W |
WASHER 5/16 X 1-1/16 X 3/64 Price: $0.89 |
| 9 |
7586 |
JAMNUT 9/32-28 X 1/4 Price: $0.92 |
| 10 |
7608 |
NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2) Not Available Price: |
| 11 |
10065 |
CABLE STRAP Price: $1.82 |
| 12 |
10120 |
CLIP RIGHT Not Available Price: |
| 13 |
11468 |
GROMMET Not Available Price: |
| 14 |
53482-93 |
RUB BAR LEFT, REAR (PLASTIC) Not Available Price: |
| 14 |
53483-93 |
RUB BAR RIGHT, REAR (PLASTIC) Not Available Price: |
| 15 |
53567-93 |
CHECK STRAP LEFT Price: $26.18 |
| 15 |
90200002 |
CHECK STRAP RIGHT (NOT SHOWN) Not Available Price: |
| 16 |
53710-93 |
LOCK W/ 7586, 90682-93 & KEYS (SPECIFY KEY CODE) (SET OF 2) Price: $66.03 |
| 17 |
90300072 |
LOCKSET COMPLETE (FOR KEY CODES 3000 - 4102), W/ 71452-91A KEYS, IGNITION KNOB, & SADDLEBAG LOCK (DOMESTIC, AUSTRALIA, JAPAN) Price: $255.21 |
| 17 |
90300073 |
LOCKSET COMPLETE (FOR KEY CODES 5000 & UP), W/ 90300042 KEYS, IGNITION KNOB, & SADDLEBAG LOCK (HDI, ENGLAND) Price: $255.21 |
| 18 |
59287-92 |
REFLECTOR RIGHT (RED) (DOMESTIC, CANADA) Price: $8.50 |
| 18 |
59288-92 |
REFLECTOR LEFT (RED) (DOMESTIC, CANADA) Price: $10.85 |
| 18 |
59289-92 |
REFLECTOR RIGHT (AMBER) (HDI, ENGLAND, JAPAN) Price: $6.54 |
| 18 |
59290-92 |
REFLECTOR LEFT (AMBER) (HDI, ENGLAND, JAPAN) Price: $6.54 |
| 19 |
61081-92 |
COVER KEY Price: $2.53 |
| 20 |
71452-91A |
KEY (SPECIFY KEY CODE) (DOMESTIC, AUSTRALIA, JAPAN) Not Available Price: |
| 20 |
90300043 |
KEY (SPECIFY KEY CODE) (ENGLAND & HDI) Price: Call Us |
| 21 |
72063-06 |
HOUSING 2-WAY Price: $5.01 |
| 22 |
72094-06 |
TERMINAL SOCKET, 18 AWG Price: $0.58 |
| 23 |
72096-06 |
WIRE SEAL 18 AWG (YELLOW) Price: $0.58 |
| 24 |
72111-06 |
SECONDARY LOCK 2-WAY (GRAY) Price: $1.20 |
| 25 |
72149-94 |
PIN LOCK Price: $1.20 |
| 26 |
72166-07BK |
HOUSING SOCKET, 16-WAY (BLACK) Price: $14.41 |
| 27 |
72168-07 |
TERMINAL SOCKET, 18-20 AWG Price: $0.58 |
| 28 |
72190-94 |
TERMINAL PIN, 16-18 AWG Price: $1.20 |
| 29 |
72195-94 |
SEAL PIN 4-WAY RECEPTACLE Price: $0.59 |
| 30 |
72272-07 |
TERMINAL SOCKET, 14-16 AWG Price: $0.58 |
| 31 |
72473-07 |
SEAL PIN Price: $1.20 |
| 32 |
74118-98BK |
HOUSING SOCKET 8-WAY (BLACK) Not Available Price: |
| 33 |
74158-98 |
SECONDARY LOCK 8-WAY, SOCKET Not Available Price: |
| 34 |
74191-98 |
SOCKET TERMINAL Price: $0.96 |
| 35 |
74195-98 |
SEAL PIN Price: $0.58 |
| 36 |
88335-09 |
PROTECTOR LEFT Not Available Price: |
| 36 |
88336-09 |
PROTECTOR RIGHT Not Available Price: |
| 37 |
90400-00A |
BAIL HEAD STUD (BAIL MUST BE REMOVED FOR ALL HDI MODELS EXCEPT JAPAN) Price: $14.64 |
| 38 |
90664-93 |
LATCH ASSEMBLY LEFT, W/ 53482-93 & SPRING, ALSO ORDER 90981-09 Price: $134.98 |
| 38 |
90665-93 |
LATCH ASSEMBLY RIGHT, W/ 53483-93 & SPRING, ALSO ORDER 90980-09 Price: $140.40 |
| 39 |
25700254 |
GASKET COVER Not Available Price: |
| 40 |
90682-93 |
CAM HOOK Price: $4.36 |
| 41 |
90200898 |
CUSHION FRONT Not Available Price: |
| 42 |
90958-93 |
MOUNTING BRACKET Price: $43.66 |
| 43 |
90962-93 |
WEARPLATE COVER Price: $22.01 |
| 44 |
90980-09 |
RUB BAR RIGHT, FRONT (PLASTIC) Not Available Price: |
| 44 |
90981-09 |
RUB BAR LEFT, FRONT (PLASTIC) Not Available Price: |
| 45 |
93100031 |
COVER INDOOR STORAGE Not Available Price: |
| 46 |
91885-97A |
LINER REMOVABLE Price: $79.95 |
| 47 |
53000155DHZ |
LATCH COVER RIGHT (ROMAN GOLD) Not Available Price: |
| 47 |
53000155DLE |
LATCH COVER RIGHT (DIAMOND DUST) Not Available Price: |
| 47 |
53000155DRL |
LATCH COVER RIGHT (ATOMIC ORANGE) Not Available Price: |
| 47 |
53000156DHZ |
LATCH COVER LEFT (ROMAN GOLD) Not Available Price: |
| 47 |
53000156DLE |
LATCH COVER LEFT (DIAMOND DUST) Not Available Price: |
| 47 |
53000156DRL |
LATCH COVER LEFT (ATOMIC ORANGE) Not Available Price: |
| 48 |
12100001 |
GROMMET RIGHT SADDLEBAG Price: $1.82 |
| 49 |
12700035 |
BACKING PLATE Not Available Price: |
| 50 |
14900001 |
TOOL KIT Price: $82.09 |
| 51 |
25700155 |
GASKET PLUG Price: $19.71 |
| 52 |
25700176 |
CAP Not Available Price: |
| 53 |
69200159 |
WIRE HARNESS JUMPER, LEFT Price: $82.68 |
| 54 |
69200160 |
WIRE HARNESS JUMPER, RIGHT Not Available Price: |
| 55 |
69200290 |
RECEPTACLE 12-WAY (GRAY) Not Available Price: |
| 56 |
69200329 |
COVER PLUG Price: $10.58 |
| 57 |
90200609DHZ |
COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (ROMAN GOLD) Not Available Price: |
| 57 |
90200609DLE |
COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (DIAMOND DUST) Not Available Price: |
| 57 |
90200609DRL |
COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (ATOMIC ORANGE) Not Available Price: |
| 57 |
90200610DHZ |
COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (ROMAN GOLD) Not Available Price: |
| 57 |
90200610DLE |
COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (DIAMOND DUST) Price: $888.64 |
| 57 |
90200610DRL |
COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (ATOMIC ORANGE) Not Available Price: |
| 58 |
90200580DRA |
BOTTOM ASSEMBLY LEFT (ATOMIC ORANGE/GALAXY GRAY) Not Available Price: |
| 58 |
90200580DRB |
BOTTOM ASSEMBLY LEFT (ROMAN GOLD/BURNT EMERALD) Not Available Price: |
| 58 |
90200580DRI |
BOTTOM ASSEMBLY LEFT (DIAMOND DUST/OBSIDIAN) Not Available Price: |
| 58 |
90200581DRA |
BOTTOM ASSEMBLY RIGHT (ATOMIC ORANGE/GALAXY GRAY) Not Available Price: |
| 58 |
90200581DRB |
BOTTOM ASSEMBLY RIGHT (ROMAN GOLD/BURNT EMERALD) Not Available Price: |
