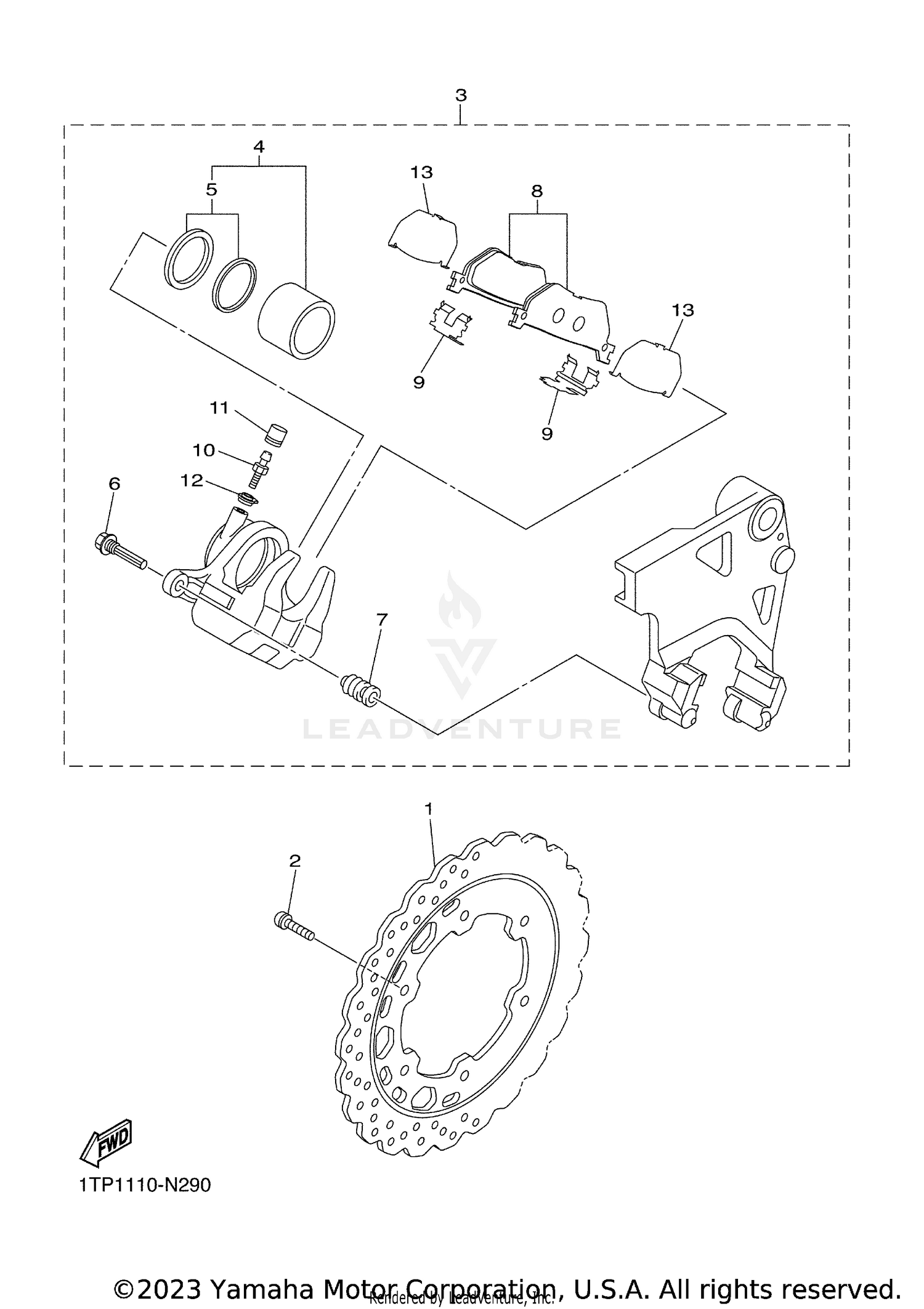

REAR BRAKE CALIPER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1TP-2582W-00-00 | DISC, REAR BRAKE 2 Price: $232.99 |
| 2 | 90111-08057-00 | BOLT This part replaces 90109-083G4-00. Price: $2.50 |
| 3 | 1TP-2580W-00-00 | CALIPER ASSY, REAR 2 Price: $509.99 |
| 4 | 1D7-25802-00-00 | PISTON ASSY, CALIPER This part replaces 1D7-W0057-00-00. Price: $61.99 |
| 5 | 5JW-25803-00-00 | CALIPER SEAL KIT This part replaces 5JW-W0047-00-00. Price: $17.99 |
| 6 | 3P6-25914-00-00 | PIN, SLIDE Price: $17.99 |
| 7 | 4TT-25937-00-00 | BOOT 2 Price: $17.99 |
| 8 | 3D8-25806-00-00 | BRAKE PAD KIT 2 This part replaces 1D7-W0046-00-00. Price: $52.99 |
| 9 | 1D7-25919-00-00 | SUPPORT, PAD Price: $19.99 |
| 10 | 5GM-25824-00-00 | SCREW, BLEED Price: $7.49 |
| 11 | 1D7-25825-00-00 | CAP Price: $8.49 |
| 12 | 5GM-25975-00-00 | RUBBER, BUSHING Price: $4.85 |
