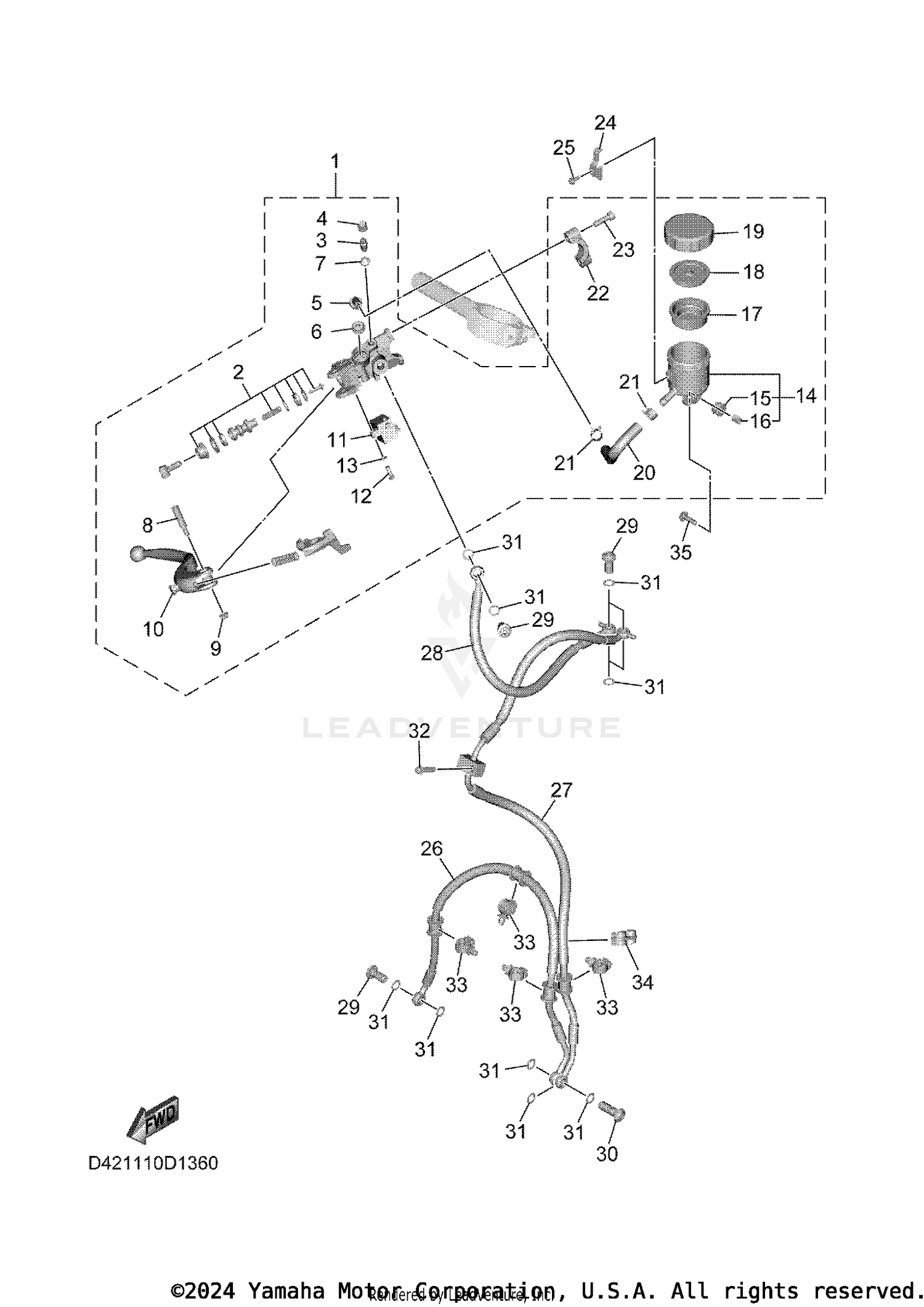

| Ref | Part Number | Description |
|---|
| 1 |
D42-2583T-00-00 |
MASTER CYLINDER ASSY Price: $376.99 |
| 3 |
3YK-25824-00-00 |
SCREW, BLEED Price: $9.49 |
| 4 |
3YK-25825-00-00 |
CAP Price: $12.99 |
| 6 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 7 |
5VY-25975-00-00 |
SEAL 1 Price: $2.50 |
| 9 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 10 |
BEB-W2616-00-00 |
LEVER SET Price: $60.99 |
| 12 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98502-04014-00. Price: $3.30 |
| 13 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 14 |
BAM-25894-00-00 |
TANK, RESERVOIR Price: $69.99 |
| 15 |
5SL-26326-00-00 |
GROMMET Price: $4.65 |
| 16 |
5SL-26277-00-00 |
COLLAR Price: $4.10 |
| 17 |
5VY-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $35.99 |
| 18 |
5VY-25855-00-00 |
BUSH, DIAPHRAGM Price: $5.99 |
| 19 |
5VY-25852-00-00 |
CAP, RESERVOIR Price: $19.99 |
| 21 |
90467-120A3-00 |
CLIP Price: $8.49 |
| 22 |
5VS-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $39.99 |
| 23 |
5VS-26332-00-00 |
BOLT Price: $4.95 |
| 24 |
5VY-2589G-00-00 |
HOLDER Price: $9.49 |
| 25 |
5VY-2589H-00-00 |
SCREW Price: $8.49 |
| 26 |
D42-25872-00-00 |
HOSE, BRAKE 1 Price: $44.99 |
| 27 |
D42-2584A-00-00 |
BRAKE HOSE ASSY Price: $118.99 |
| 28 |
D42-2584B-00-00 |
HOSE, BRAKE Price: $58.99 |
| 29 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 30 |
90401-10042-00 |
BOLT, UNION Price: $18.49 |
| 31 |
90430-10005-00 |
GASKET Price: $9.49 |
| 32 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 33 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 34 |
90464-12224-00 |
CLAMP Price: $3.76 |
