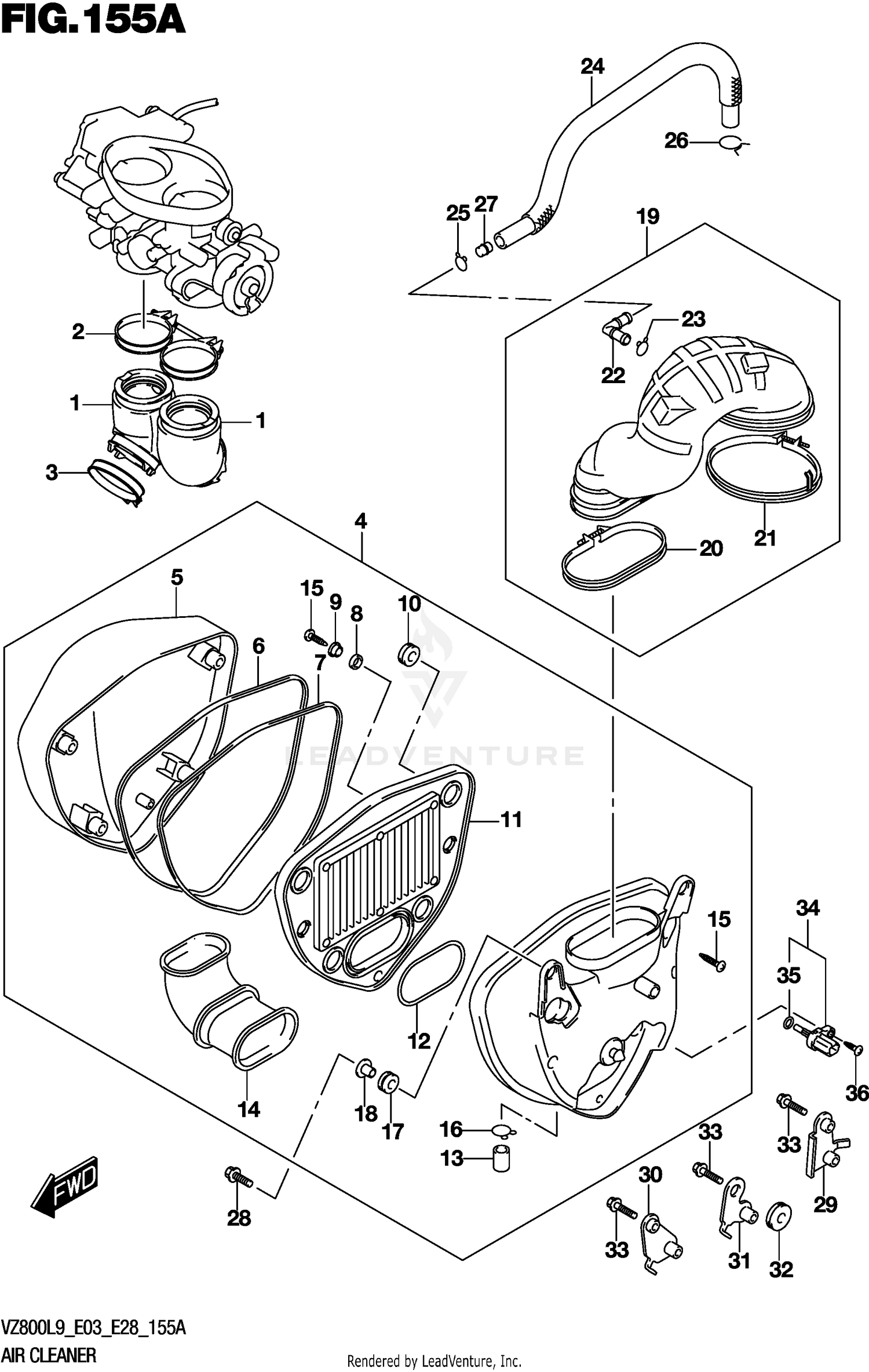

AIR CLEANER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13111-41F12 | PIPE,INTAKE This part replaces 13111-41F11. Price: $37.04 |
| 2 | 13170-39G00 | CLAMP,INTAKE PIPE Price: $32.23 |
| 3 | 13170-15G00 | CLAMP,INTAKE PIPE Price: $6.95 |
| 4 | 13701-39G30 | CASE ASSY Price: $451.40 |
| 17 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 19 | 13880-39G21 | TUBE ASSY,OUTLET Price: $182.64 |
| 24 | 13853-39G20 | TUBE Price: $30.74 |
| 26 | 09401-16301 | CLIP (ID:16) Price: $1.67 |
| 27 | 13859-14D41 | JET,BREATHER This part replaces 13859-14D40. Price: $4.75 |
| 28 | 09139-06056 | SCREW (6X20) Price: $3.99 |
| 29 | 13761-39G20 | BRACKET,AIR CLNR NO.1 Price: $17.17 |
| 30 | 13762-39G20 | BRACKET,AIR CLNR NO.2 Price: $17.17 |
| 31 | 13763-39G20 | BRACKET,AIR CLNR NO.3 Price: $16.38 |
| 32 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
| 33 | 01547-0625A | BOLT Price: $2.45 |
| 34 | 13650-41F10 | SENSOR,AIR TEMP Price: $68.33 |
| 35 | 13655-41F10 | O-RING Price: $7.63 |
