| Ref | Part Number | Description |
|---|
| 1 |
BLW-2583V-00-00 |

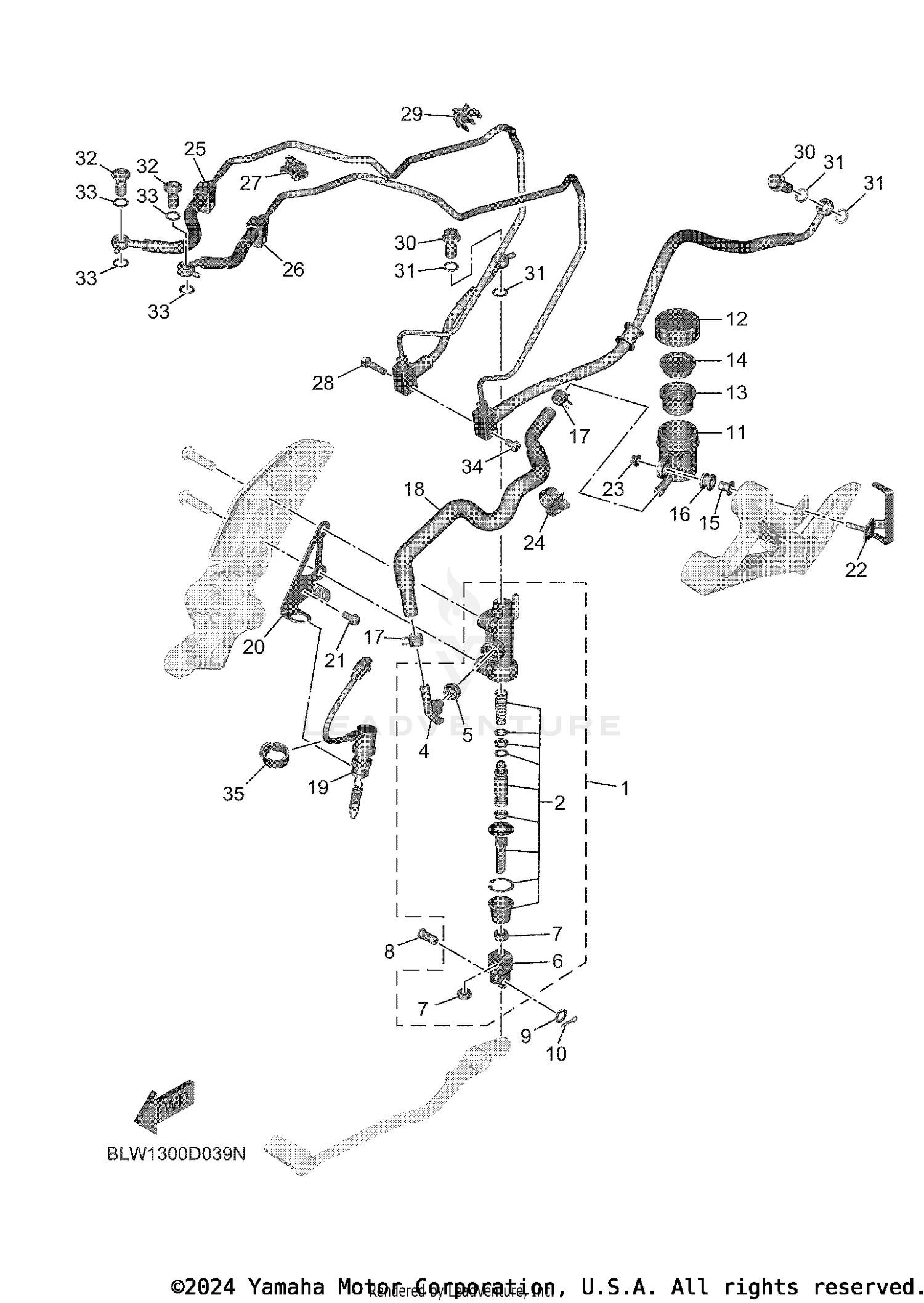

RR. MASTER CYLINDER ASSY. Price: $160.99 |
| 5 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 6 |
4BP-27222-02-00 |
JOINT Price: $32.99 |
| 7 |
90170-08010-00 |
NUT Price: $9.49 |
| 8 |
90240-08005-00 |
PIN, CLEVIS Price: $9.49 |
| 9 |
90201-08070-00 |
WASHER, PLATE Price: $8.49 |
| 10 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 11 |
14B-25894-00-00 |
TANK, RESERVOIR Price: $69.99 |
| 12 |
2C0-25852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 13 |
2VN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $26.99 |
| 14 |
2VN-25855-00-00 |
BUSH, DIAPHRAGM Price: $11.99 |
| 15 |
90387-05028-00 |
COLLAR Price: $6.49 |
| 16 |
2C0-26326-00-00 |
GROMMET Price: $7.49 |
| 17 |
90467-11044-00 |
CLIP Price: $9.49 |
| 18 |
BLW-25895-00-00 |
HOSE, RESERVOIR Price: $28.99 |
| 19 |
BLW-82530-00-00 |
STOP SWITCH ASSY Price: $48.99 |
| 20 |
BLW-2144G-00-00 |
STAY, STOP SWITCH Price: $12.49 |
| 21 |
95027-06012-00 |
BOLT, FLANGE Price: $4.20 |
| 22 |
1WS-2582E-00-00 |
HOLDER, RESERVE TANK Price: $8.49 |
| 23 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 24 |
90464-17008-00 |
CLAMP Price: $2.85 |
| 25 |
BLW-2584D-00-00 |
HOSE, BRAKE Price: $171.99 |
| 26 |
BLW-2584E-00-00 |
BRAKE HOSE ASSY 5 Price: $190.99 |
| 27 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 28 |
90105-06148-00 |
BOLT, FLANGE Price: $9.49 |
| 29 |
90464-07009-00 |
CLAMP Price: $2.10 |
| 30 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 31 |
90430-10005-00 |
GASKET Price: $9.49 |
| 32 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 33 |
90430-10005-00 |
GASKET Price: $9.49 |
| 34 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
