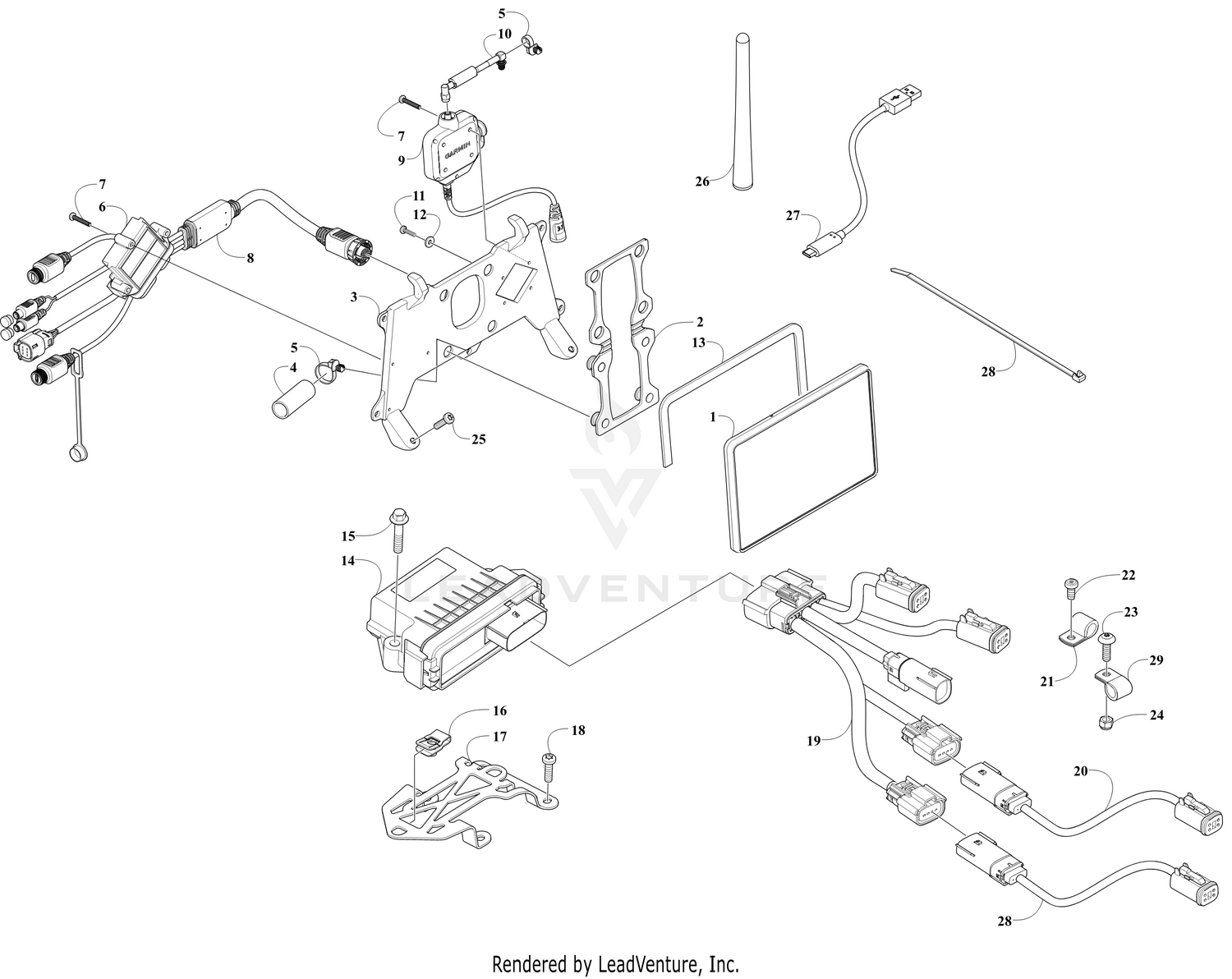

ELECTRICAL COMPONENTS, GARMIN AND ATAC [111279]

ELECTRICAL COMPONENTS, GARMIN AND ATAC [111279]

Parts (25)

RefPart NumberDescription
1 0620-410 G8 Gauge Price: $1,499.95
2 2623-359 Rubber, Spacer Price: $4.09
3 1616-452 Plate, Mounting Price: $8.99
4 630-00007 Retainer, Hook/Loop Price: $3.79
5 0623-677 Tie, Cable - Push Mount Price: $1.18
6 0730-449 Module Price: $239.95
7 2623-365 Screw (M4 x 30 mm) Price: $5.95
8 0630-415 G8 Cable (19-Pin) Price: $184.95
11 2623-364 Screw (M4 x 12 mm) Price: $0.39
12 8050-127 Washer Price: $1.57
13 617-00000 Foam Strip Price: $2.69
14 0730-439 Module, Control - Suspension Price: $457.95
15 8408-630 Screw, Cap Price: $1.08
16 0423-577 Clip, U-Nut Price: $0.46
17 0630-407 Bracket, Mounting - Suspension Module Control Price: $10.95
18 1423-656 Screw, Self-Tapping Price: $0.96
19 686-00005 Harness, Suspension Module Price: $229.95
20 1686-934 Harness, Rear Shock Price: $37.95
21 2623-255 Clamp Price: $1.45
22 0623-914 Screw, Self Tapping Price: $0.35
23 8477-516 Screw, Machine Price: $0.71
24 8422-502 Nut, Lock Price: $0.48
25 1623-933 Screw, Self-Tapping Price: $0.35
27 0630-417 USB Cable Price: $11.59
28 686-00004 Harness, Front Shock Price: $69.95
