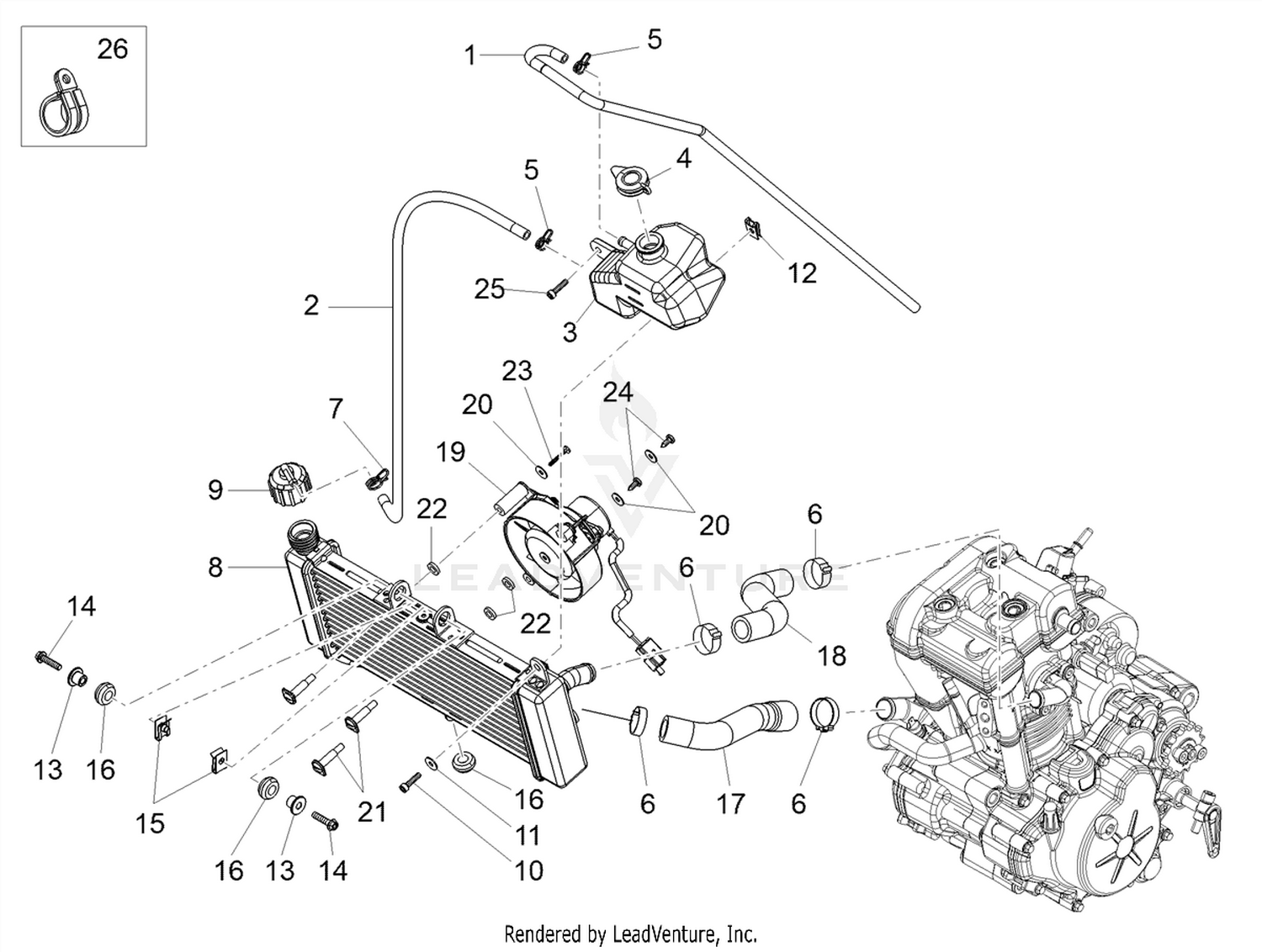

Cooling system
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 864510 | Breather pipe Price: $4.85 |
| 2 | 864572 | Exp.tnk-rad. Hose Price: Call Us |
| 3 | 866136 | Coolant tank Price: Call Us |
| 4 | 863943 | Cover Price: Call Us |
| 5 | 00A00410501 | Hose clamp Price: Call Us |
| 6 | AP8101573 | Hose clamp Price: $2.70 |
| 7 | 898060 | Hose clamp Price: $2.70 |
| 8 | 867334 | Water cooler Price: Call Us |
| 9 | 861299 | Cover Price: Call Us |
| 10 | AP8150044 | Hex socket screw Price: $2.70 |
| 11 | AP8150015 | Washer Price: $0.12 |
| 12 | 254485 | Spring plate Price: $0.25 |
| 13 | AP8121679 | T bush Price: $0.92 |
| 14 | AP8152281 | Screw w/ flange Price: $1.24 |
| 15 | 254485 | Spring plate Price: $0.25 |
| 16 | 00008915020 | Grommet Price: $0.49 |
| 17 | 865655 | Water cooler-pump tube Price: Call Us |
| 18 | 865654 | Water cooler-head tube Price: Call Us |
| 19 | 864049 | Electric fan Price: Call Us |
| 20 | 00H03800722 | Washer Price: Call Us |
| 21 | AP8161118 | Pin Price: $4.18 |
| 22 | 00003515370 | Washer Price: $2.70 |
| 25 | AP8152298 | Screw w/ flange Price: $0.15 |
