Parts Catalog

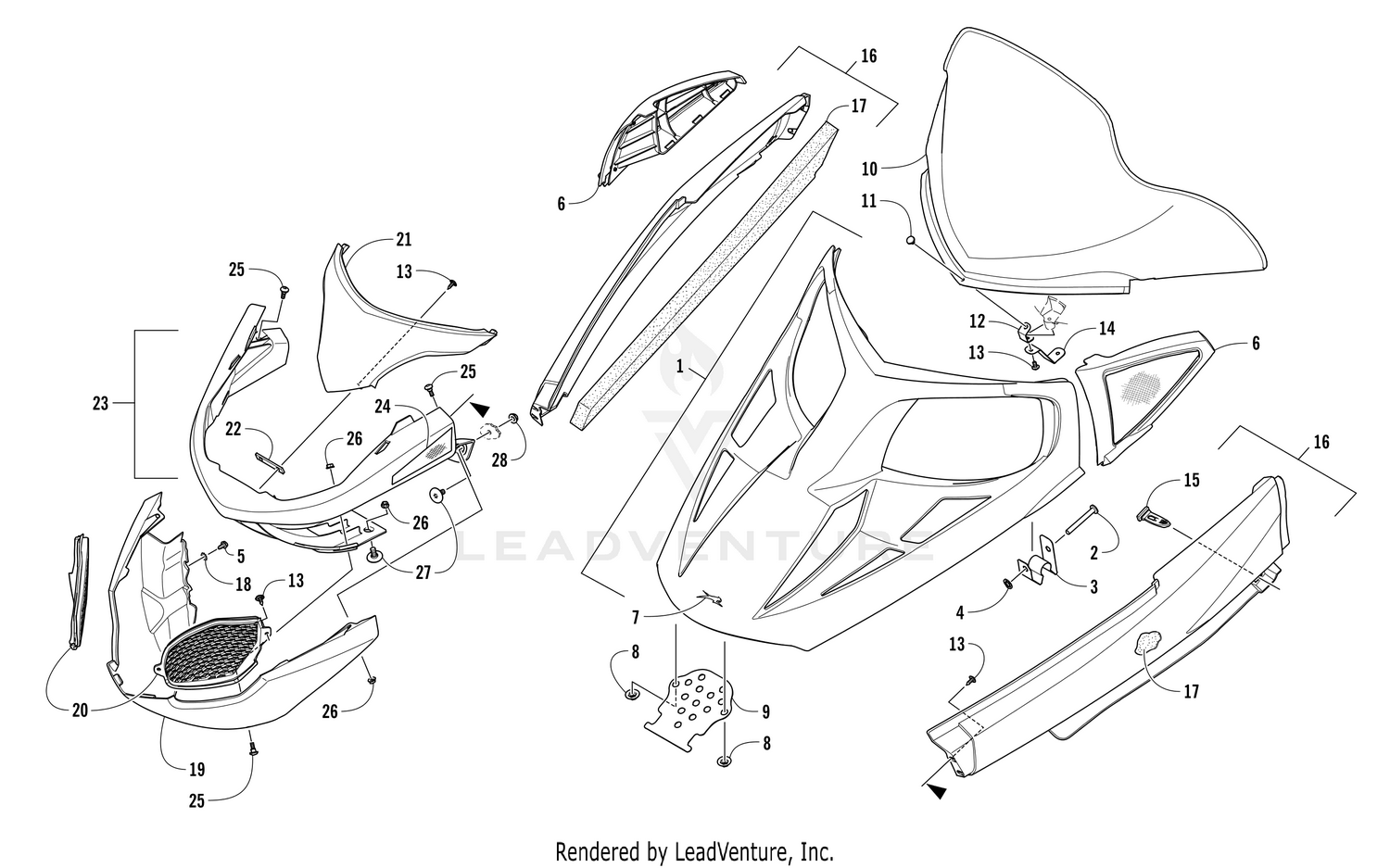

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [105582]

Parts (29)

Ref	Part Number	Description
2	1623-610	Pin, Retaining Price: $26.95
3	5706-084	Clip, Hood Hold-Down - Right Price: $18.13
3	5706-085	Clip, Hood Hold-Down - Left Price: $18.13
4	1623-409	Retainer, Pushnut Price: $0.19
5	0623-966	Screw, Self-Tapping Price: $1.20
6	5606-924	Bezel, Intake - Assembly - Right - Black Price: $65.95
6	5606-925	Bezel, Intake - Assembly - Left - Black Price: $65.95
7	4411-479	Emblem, Aircat Price: $8.83
8	1623-469	Nut, Stamped Price: $1.32
9	5606-042	Bracket, Hinge Price: $36.95
10	5606-962	Windshield, High - Tint Price: $177.95
11	1623-677	Rivet, Plastic Price: $1.45
12	4606-961	Bracket, Windshield - Hold-Down Price: $19.35
13	2623-166	Screw, Self-Tapping Price: $1.66
14	5606-277	Bracket, Windshield Price: $33.95
15	4606-926	Strap, Hold-Down Price: $4.84
17	0617-656	Foam, Front Spar - Right Price: $21.77
17	0617-657	Foam, Front Spar - Left Price: $21.77
18	8053-242	Washer, External Tooth Lock Price: $1.53
19	5606-462	Fascia, Bumper - Lower - Mold - Black Price: $71.95
20	4606-604	Vent, Bumper - Right - Black Price: $25.95
20	4606-605	Vent, Bumper - Left - Mold - Black Price: $25.95
21	4606-518	Fascia, Bumper - Upper - Black Price: $38.95
22	5606-953	Spacer Price: $4.11
24	9611-384	Decal, Reflector - Right - Amber Price: $31.95
24	9611-385	Decal, Reflector - Left - Amber Price: $22.23
25	0423-355	Screw, Shoulder Price: $1.08
26	8427-602	Nut, Hex Price: $0.23
27	1623-775	SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y Price: $1.92
