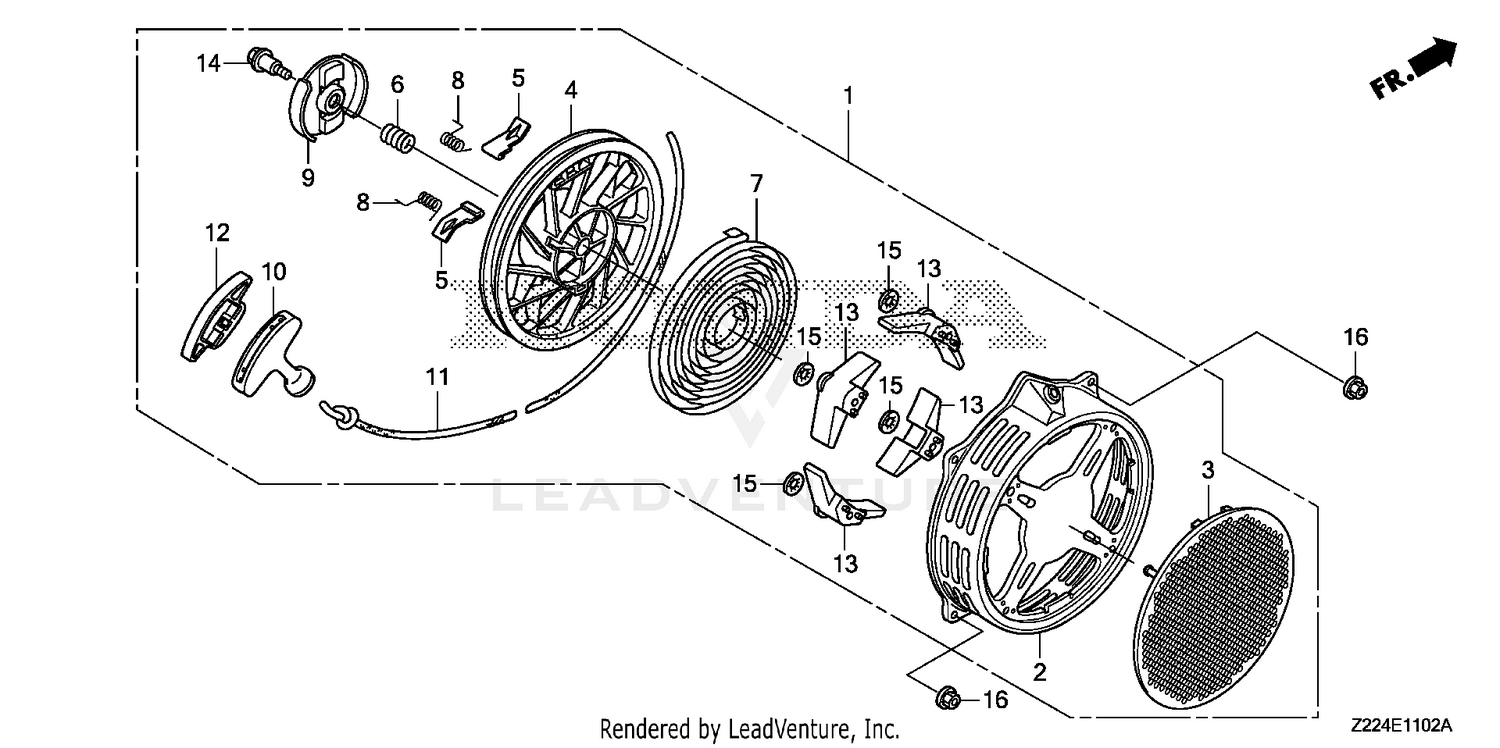

| Ref | Part Number | Description |
|---|
| 1 |
28400-Z1C-306ZA |
STARTER ASSY., RECOIL *NH1* (COO)(FOR U.S.A.) (BLACK) Price: $61.61 |
| 2 |
28410-Z1C-D41ZB |
CASE, RECOIL STARTER *NH1* (BLACK) Price: $39.62 |
| 3 |
28411-Z5T-W01 |
COVER, RECOIL STARTER Price: $25.76 |
| 4 |
28421-Z5T-W01 |
PULLEY, RECOIL STARTER Price: $24.88 |
| 5 |
28422-ZE2-W01 |
RATCHET, STARTER (Honda Code 3678877). Price: $7.54 |
| 6 |
28441-ZE2-W01 |
SPRING, FRICTION (Honda Code 3678885). Price: $6.06 |
| 7 |
28442-ZE2-W01 |
SPRING, STARTER RETURN (Honda Code 3678893). Price: $18.54 |
| 8 |
28443-ZE2-W01 |
SPRING, RATCHET (Honda Code 3678901). Price: $5.28 |
| 9 |
28444-ZE2-W01 |
RETAINER, SPRING (Honda Code 3678919). Price: $14.56 |
| 10 |
28461-Z5T-003 |
SEE PART DETAILS - PRI; GRIP, STARTER Price: $10.52 |
| 11 |
28462-ZE3-W01 |
SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11) (Honda Code 3713344). Price: $14.84 |
| 12 |
28463-Z5T-013 |
SEE PART DETAILS - PRI; GRIP, REINFORCEMENT Price: $3.32 |
| 13 |
28465-Z5T-W01 |
COVER, ROPE Price: $5.44 |
| 14 |
90004-ZE2-W01 |
SCREW, CENTER (Honda Code 3679024). Price: $4.08 |
| 15 |
90201-Z5T-W01 |
NUT, PUSH Price: $8.92 |
