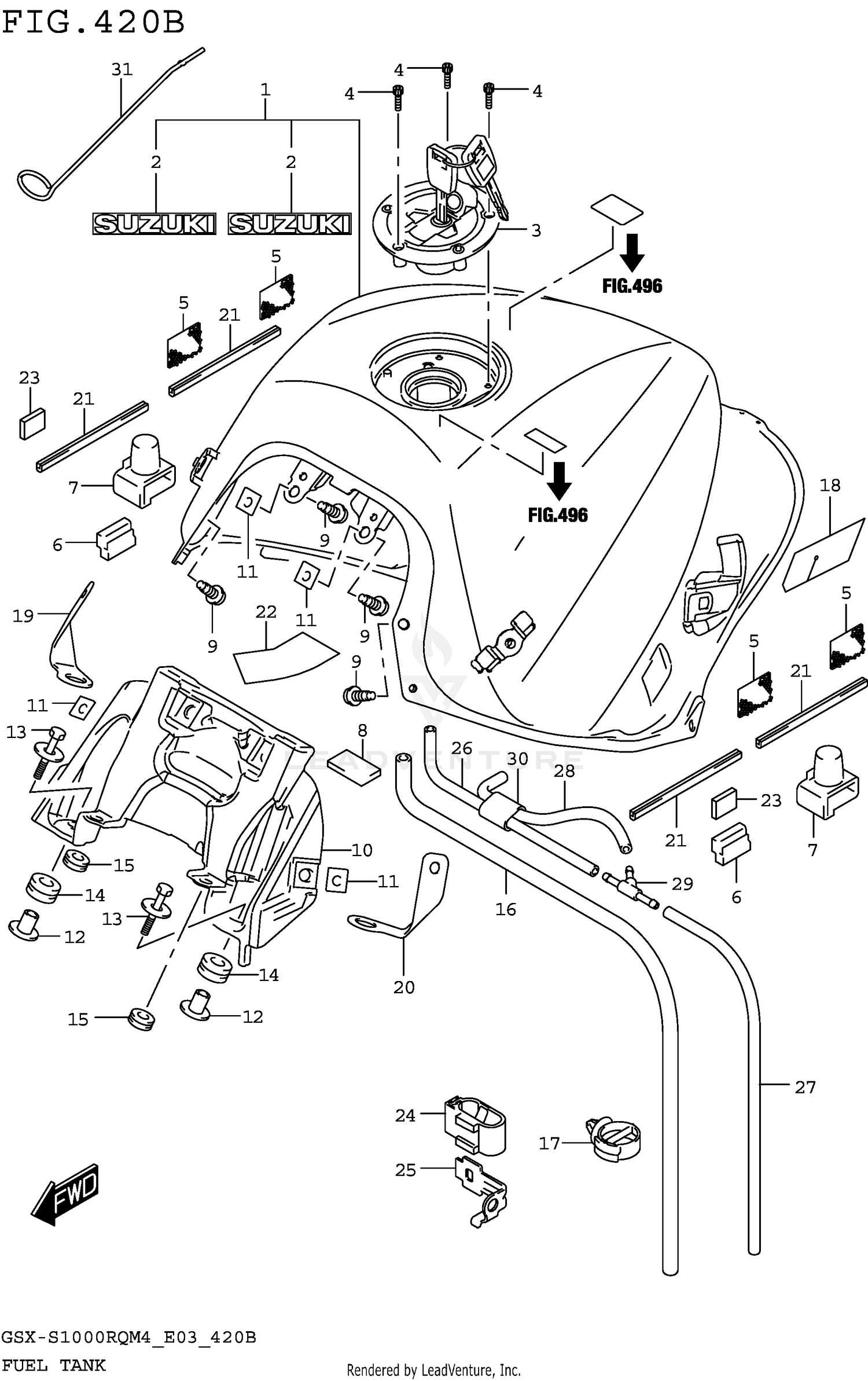

| Ref | Part Number | Description |
|---|
| 3 |
44200-17840 |
CAP SET,FUEL TANK FILLER Price: $178.11 |
| 4 |
44244-11J00 |
BOLT,FUEL TANK FILLER CAP Price: $5.08 |
| 5 |
44572-13G00 |
FASTENER (33X25X2.6) Price: $13.67 |
| 6 |
44541-41G00 |
CUSHION, FUEL TANK SIDE Price: $7.38 |
| 7 |
44542-04K01 |
CUSHION, FUEL TANK REAR Price: $9.58 |
| 8 |
33652-20C00 |
PROTECTOR (50X50X5) This part replaces 33652-21G10. Price: $3.69 |
| 9 |
44543-04K00 |
SCREW, FUEL TANK FRONT BRKT Price: $4.56 |
| 10 |
44521-04K00 |
BRACKET, FUEL TANK FRONT Price: $102.60 |
| 11 |
44523-47H00 |
NUT (M6) Price: $12.73 |
| 12 |
44512-04K00 |
SPACER,FUEL TANK FRONT Price: $7.63 |
| 13 |
09116-06172 |
BOLT (6X30) Price: $3.02 |
| 14 |
09320-10050 |
CUSHION (10X22X13) Price: $4.14 |
| 15 |
09320-06504 |
CUSHION Price: $6.04 |
| 16 |
44423-48K00 |
HOSE, FUEL TANK DRAIN Price: $18.09 |
| 17 |
09403-20307 |
CLAMP Price: $1.58 |
| 18 |
44283-06J00 |
PROTECTOR,FUEL TANK Price: $6.60 |
| 19 |
44561-04K00 |
BRACKET, FUEL TANK FRONT RH Price: $10.23 |
| 20 |
44571-04K00 |
BRACKET, FUEL TANK FRONT LH Price: $10.23 |
| 21 |
44552-24B00 |
MOLDING, FUEL TANK (L:110) Price: $17.90 |
| 22 |
44285-48K00 |
CUSHION, FUEL TANK Price: $12.58 |
| 23 |
44572-44G00 |
FASTENER (20X15X2.6) Price: $12.58 |
| 24 |
44484-07L00 |
CLAMP, DRAIN HOSE Price: $4.09 |
| 25 |
44485-07L00 |
BRACKET, HOSE CLAMP Price: $15.27 |
| 26 |
44424-48K00 |
HOSE, FUEL TANK BRTHR NO.1 Price: $10.69 |
| 27 |
09352-50005-550 |
HOSE (5X8.2X550) Price: $7.87 |
| 28 |
44424-15H11 |
HOSE, FUEL TANK BRTHR NO.3 Price: $14.83 |
| 30 |
09352-13162-010 |
HOSE (13.5X16.5X10) Price: $1.97 |
