Parts Catalog

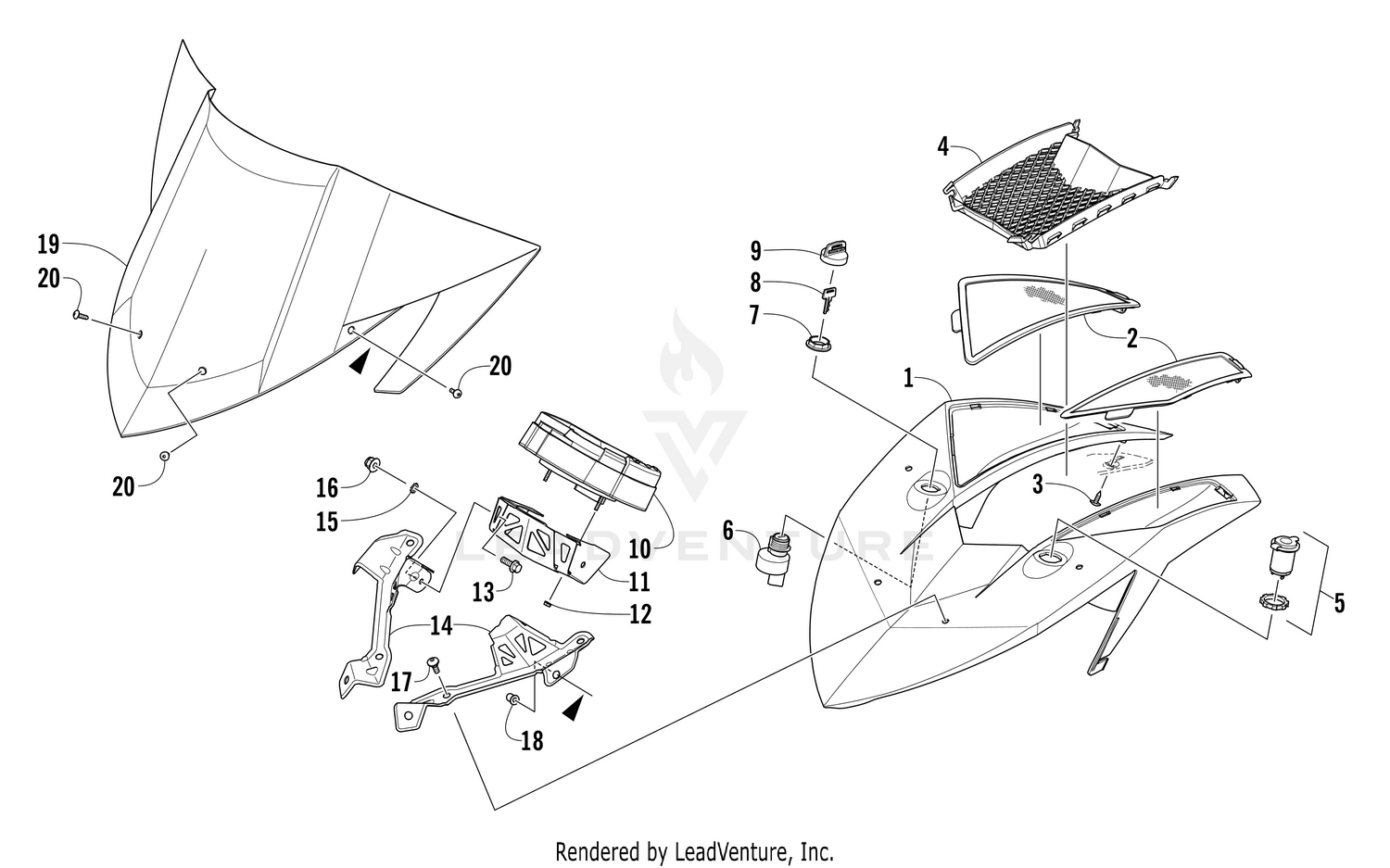

WINDSHIELD AND INSTRUMENTS ASSEMBLIES [103097]

Parts (19)

Ref	Part Number	Description
1	6606-401	Pod, Instrument - White Price: $74.95
2	0608-736	Vent, Intake - Right Price: $21.95
2	0608-737	Vent, Intake - Left Price: $24.95
3	1623-129	Screw, Self-Tapping Price: $0.29
4	6606-556	Vent, Pod Price: $93.95
5	0641-897	Outlet, Accessory - 12V Price: $25.95
7	0430-050	Nut, Retaining Price: $2.05
9	0430-054	Cover, Key Price: $16.92
10	0620-390	Gauge, Speedometer Price: $721.95
11	6606-288	Bracket, Speedometer Gauge - Center Price: $182.95
12	0423-493	NUT,HEX-M4-.7 W/STAR WSR Price: $0.35
13	8410-616	Screw, Cap Price: $1.45
14	6606-130	Bracket, Speedometer Gauge - Right Price: $236.95
14	6606-131	Bracket, Speedometer Gauge - Left Price: $18.95
15	8053-212	Washer, Lock Price: $0.23
16	8427-602	Nut, Hex Price: $0.23
17	0423-355	Screw, Shoulder Price: $1.08
18	1623-764	Nut, Expansion Price: $5.70
19	6606-377	Windshield - Mid - Smoke Price: $133.95
