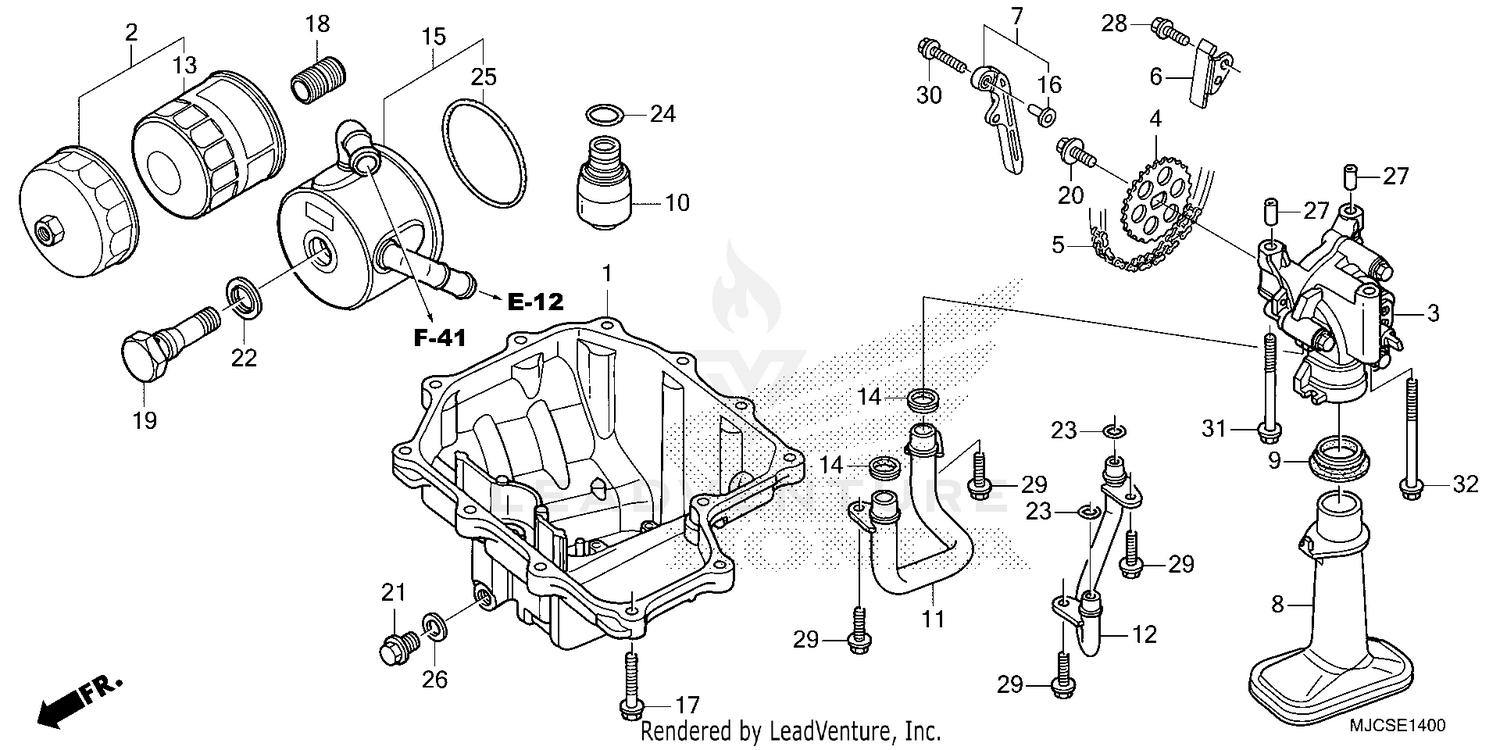

| Ref | Part Number | Description |
|---|
| 1 |
11210-MFJ-D01 |
PAN, OIL Price: $259.89 |
| 3 |
15100-MFJ-D00 |
PUMP ASSY., OIL Price: $271.11 |
| 4 |
15134-MAL-600 |
SPROCKET, OIL PUMP DRIVEN (25T) Price: $28.73 |
| 5 |
15141-MFJ-D01 |
CHAIN, OIL PUMP DRIVE (DID25H-72L) Price: $26.13 |
| 6 |
15145-MFJ-D00 |
GUIDE A, OIL PUMP CHAIN Price: $11.55 |
| 7 |
15146-MFJ-D00 |
GUIDE B, OIL PUMP CHAIN Price: $9.78 |
| 8 |
15150-MFJ-D01 |
STRAINER, OIL Price: $38.84 |
| 9 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 10 |
15220-MBW-000 |
VALVE ASSY., RELIEF Price: $44.20 |
| 11 |
15310-MFJ-D01 |
PIPE A, OIL Price: $89.95 |
| 12 |
15320-MFJ-D00 |
PIPE B, OIL Price: $41.76 |
| 13 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 14 |
15433-MFJ-D01 |
RING, SEAL Price: $2.36 |
| 15 |
15700-MFJ-D01 |
COOLER, OIL Price: $342.67 |
| 16 |
61107-MCR-D00 |
COLLAR, FR. FENDER Price: $2.56 |
| 17 |
90006-GHB-680 |
BOLT, FLANGE (6X28) (NSHF) Price: $2.33 |
| 18 |
90019-MB0-000 |
BOSS, OIL FILTER (Honda Code 1243435) Price: $10.44 |
| 19 |
90019-MGP-D60 |
BOLT, OIL COOLER Price: $75.82 |
| 20 |
90021-MM5-000 |
BOLT-WASHER (6X12) (Honda Code 2551760) Price: $6.42 |
| 21 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 22 |
90402-MFJ-D01 |
WASHER, SEALING (34.5MM) Price: $9.07 |
| 23 |
91309-ML7-003 |
O-RING (9.6X2.6) (ARAI) Price: $2.43 |
| 24 |
91313-MG7-004 |
O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 25 |
91354-MCT-003 |
O-RING, OIL COOLER Price: $9.96 |
| 26 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 27 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 28 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 29 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 30 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
| 31 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
