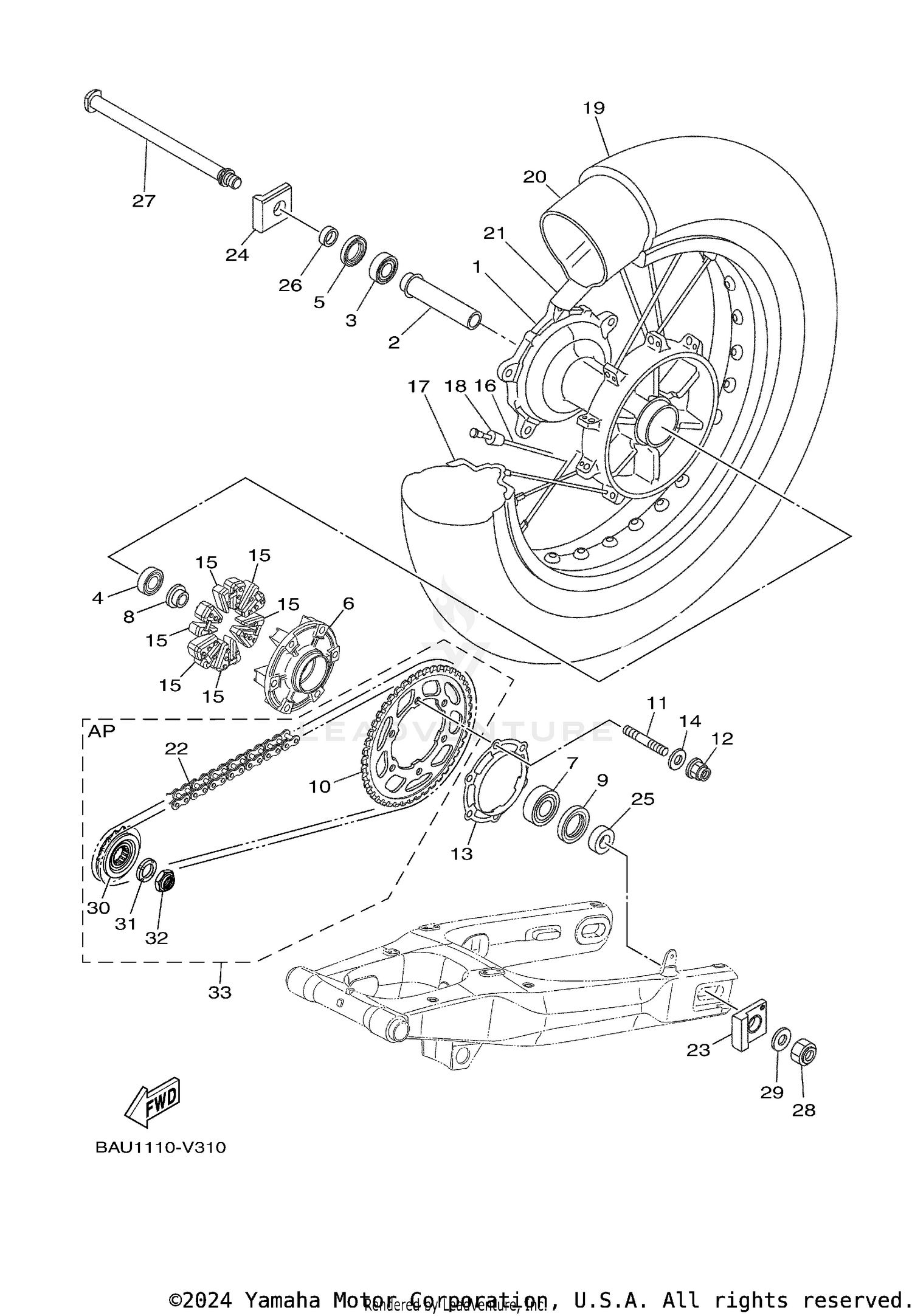

| Ref | Part Number | Description |
|---|
| 1 |
BW3-25311-00-00 |
HUB, REAR Price: $640.99 |
| 2 |
BW3-25317-00-00 |
SPACER, BEARING Price: $20.99 |
| 3 |
93306-20480-00 |
BEARING Price: $48.99 |
| 4 |
93306-00444-00 |
BEARING This part replaces 93306-00416-00. Price: $45.99 |
| 5 |
93102-28022-00 |
OIL SEAL Price: $16.49 |
| 6 |
5JJ-25366-00-00 |
CLUTCH, HUB Price: $503.99 |
| 7 |
93306-205B5-00 |
BEARING Price: $45.99 |
| 8 |
1RC-25383-00-00 |
COLLAR, WHEEL Price: $35.99 |
| 9 |
93106-40013-00 |
OIL SEAL Price: $16.49 |
| 10 |
BW3-F5446-00-00 |
SPROCKET, DRIVEN (46T) Price: $158.99 |
| 11 |
90116-10048-00 |
BOLT, STUD Price: $29.99 |
| 12 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 13 |
1WS-2537W-00-00 |
BRACKET 1 Price: $23.99 |
| 14 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 15 |
5SL-25364-00-00 |
DAMPER Price: $45.99 |
| 16 |
BW3-F5304-00-00 |
SPOKE SET, REAR Price: $235.99 |
| 22 |
94582-49122-00 |
CHAIN Price: $264.99 |
| 23 |
3SP-25388-00-00 |
PULLER, CHAIN 1 Price: $61.99 |
| 24 |
1RC-25389-00-00 |
PULLER, CHAIN 2 Price: $83.99 |
| 25 |
90387-20036-00 |
COLLAR Price: $26.99 |
| 26 |
90387-20035-00 |
COLLAR Price: $17.49 |
| 27 |
4FN-22141-00-00 |
SHAFT, PIVOT Price: $109.99 |
| 28 |
90185-18009-00 |
NUT, SELF-LOCKING Price: $20.99 |
| 29 |
90201-18013-00 |
WASHER, PLATE Price: $8.49 |
| 30 |
BW3-17460-00-00 |
SPROCKET, DRIVE Price: $76.99 |
| 31 |
90208-22002-00 |
WASHER, CONICAL SPRING Price: $22.99 |
| 32 |
90179-22018-00 |
NUT Price: $31.99 |
