Parts Catalog

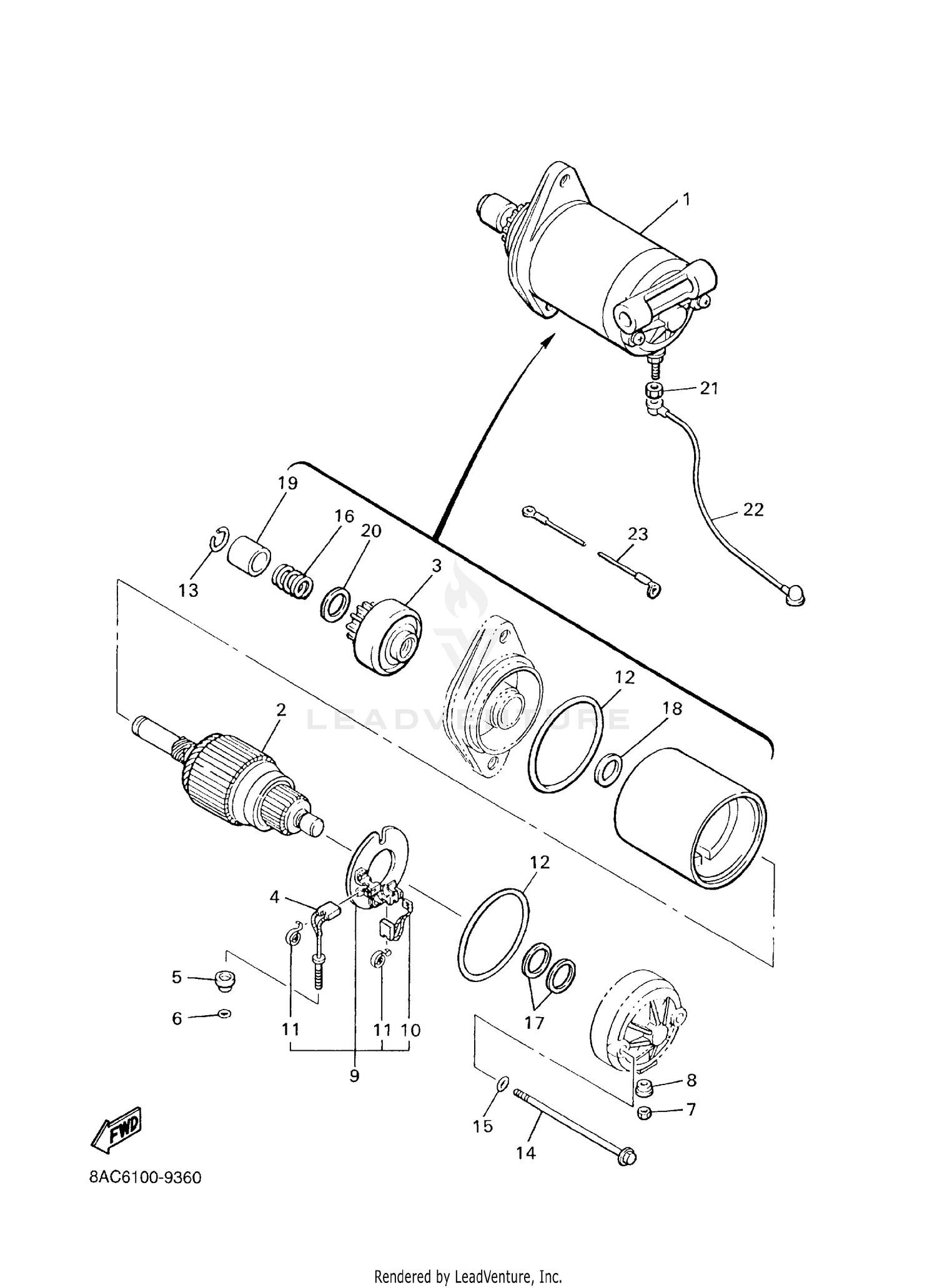

STARTING MOTOR [106362]

Parts (20)

Ref	Part Number	Description
2	3021-259	Armature Assembly Price: $379.03
3	3020-784	Clutch, Over Run Price: $431.95
4	3020-709	Brush 1 Price: $42.95
5	3020-711	Grommet Price: $17.92
6	3020-712	O-Ring Price: $14.55
7	3020-679	Nut, Special Price: $11.18
8	3020-710	Grommet Price: $7.95
10	3020-782	Brush 2 Price: $23.53
11	3021-223	Spring, Brush Price: $12.30
12	3020-678	O-Ring Price: $38.83
13	3021-225	Ring Price: $10.05
14	3020-783	Bolt Price: $19.04
15	3021-228	O-Ring Price: $11.18
16	3020-901	Spring, Lever Price: $7.23
17	3020-677	Washer 1 Price: $3.09
18	3021-226	Washer 2 Price: $5.04
19	3021-224	Ring, Stop Price: $43.15
20	3020-902	Washer, Plate Price: $14.55
21	3020-117	Nut Price: $5.46
22	3020-776	Wire, Lead Price: $56.95
