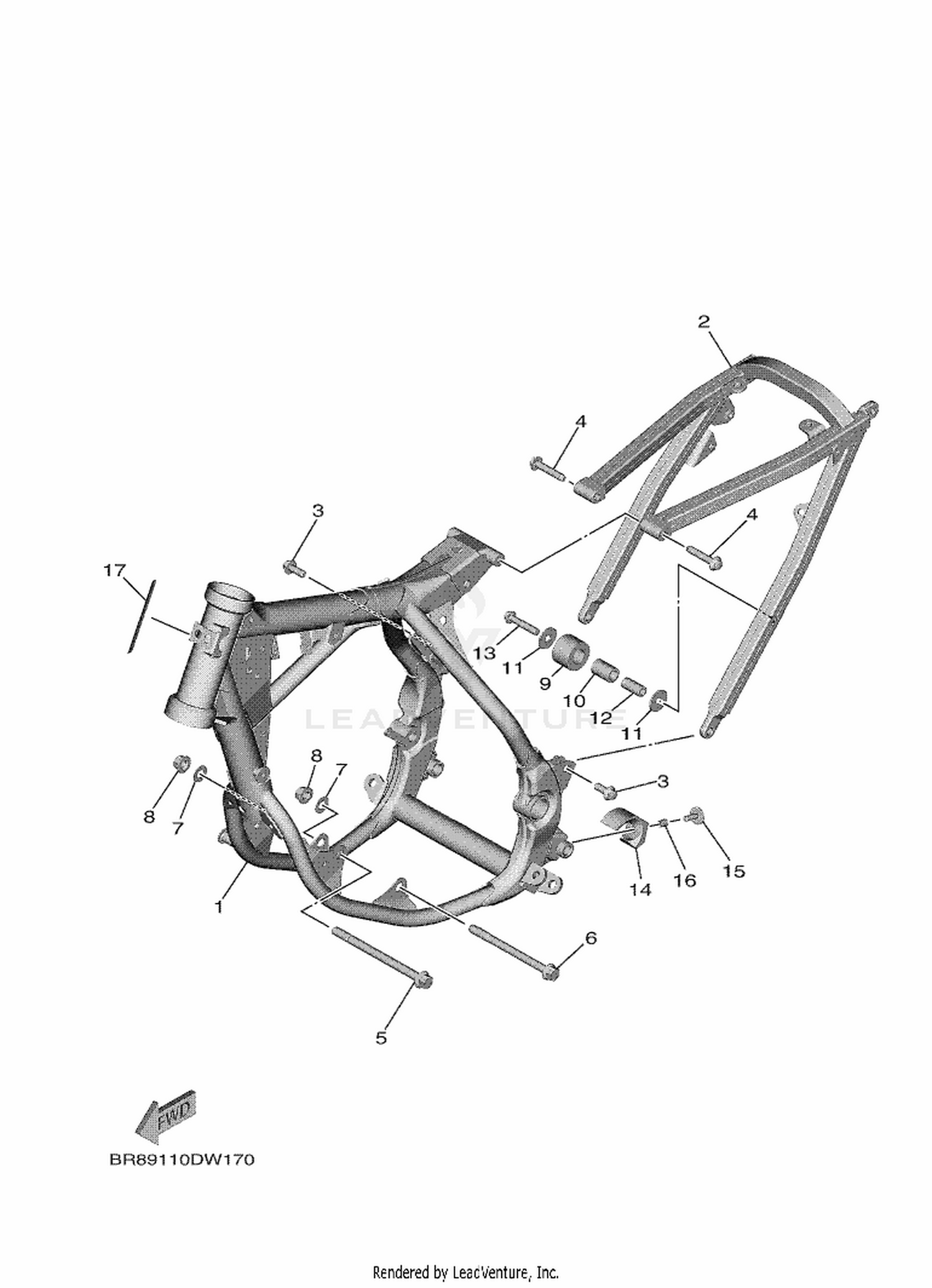

17 FRAME
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR8-21101-01 | FRONT FRAME COMP. Price: Call Us |
| 2 | BR8-21190-00 | REAR FRAME COMP. Price: Call Us |
| 3 | 90105-08307 | BOLT, FLANGE Price: Call Us |
| 4 | 90105-08231 | BOLT, FLANGE Price: Call Us |
| 5 | 90105-10148 | BOLT, FLANGE Price: Call Us |
| 6 | 90105-10174 | BOLT, FLANGE Price: Call Us |
| 7 | 90201-10045 | WASHER, PLATE Price: Call Us |
| 8 | 90179-10024 | NUT Price: Call Us |
| 9 | 30X-22178-00 | TENSIONER Price: Call Us |
| 10 | 4V4-22184-00 | BUSH Price: Call Us |
| 11 | 90201-08045 | WASHER, PLATE Price: Call Us |
| 12 | 90387-08041 | COLLAR Price: Call Us |
| 13 | 95E32-08040 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 14 | 4ES-22178-01 | TENSIONER Price: Call Us |
| 15 | 90119-06200 | BOLT, WITH WASHER Price: Call Us |
| 16 | 90387-064T3 | COLLAR Price: Call Us |
