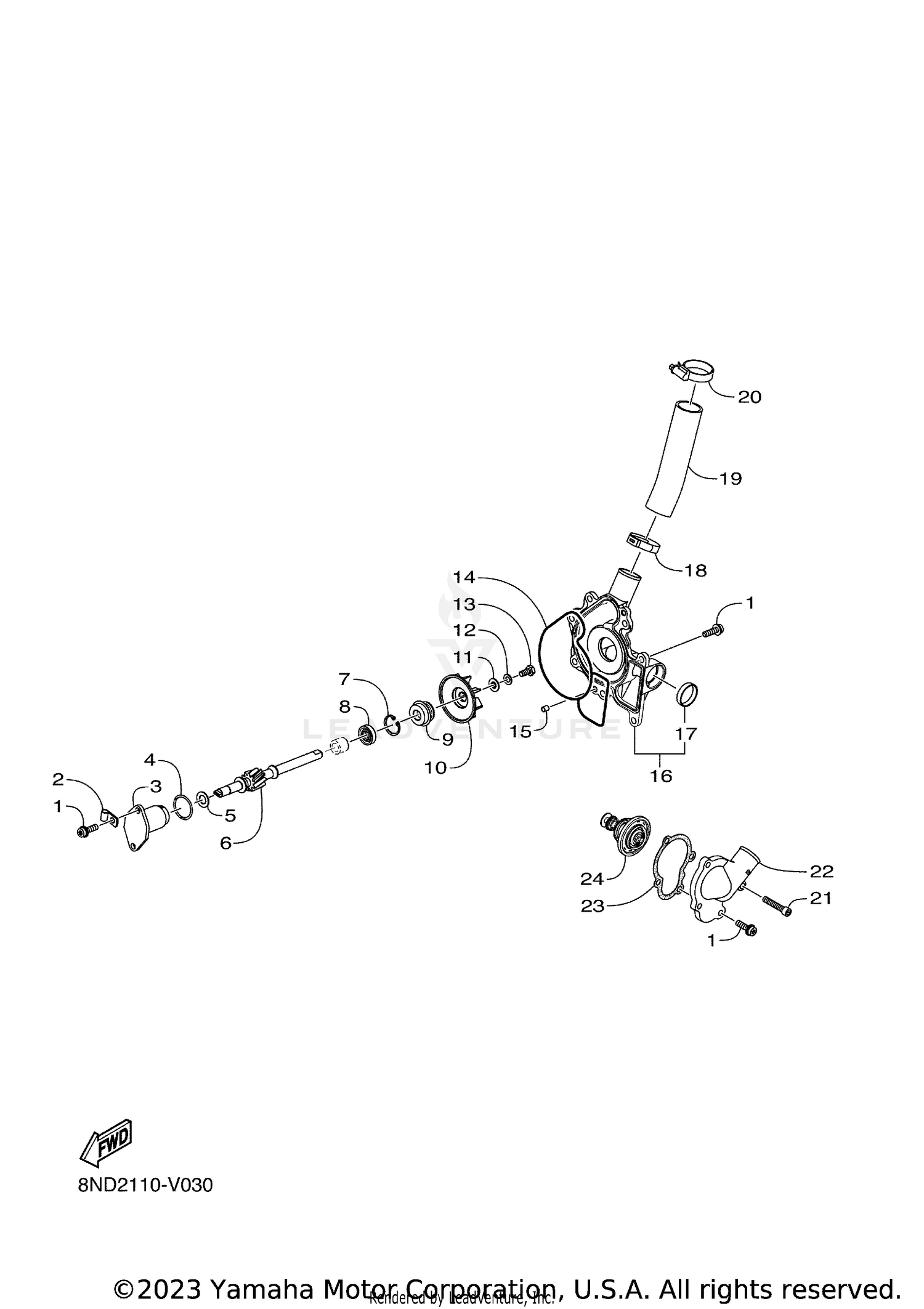

| Ref | Part Number | Description |
|---|
| 1 |
8ND-RA180-00-00 |
BOLT, FLANGE Price: $1.15 |
| 2 |
8ND-RAB11-00-00 |
CLAMP, 9 Price: $3.00 |
| 3 |
8ND-E2406-00-00 |
RETAINER Price: $154.99 |
| 4 |
8ND-RAF06-00-00 |
O-RING, 4 Price: $6.49 |
| 5 |
8ND-E3147-00-00 |
SHIM Price: $39.99 |
| 6 |
8ND-E2458-10-00 |
SHAFT, IMPELLER This part replaces 8ND-E2458-00-00. Price: $83.99 |
| 7 |
8ND-RAH01-00-00 |
CIRCLIP, 2 Price: $3.40 |
| 8 |
8ND-RAY13-00-00 |
SEAL, OIL 2 Price: $13.99 |
| 9 |
8ND-E245G-00-00 |
SEAL, MECHANICAL 2 Price: $63.99 |
| 10 |
8ND-E2457-00-00 |
IMPELLER Price: $32.99 |
| 11 |
8ND-E2456-00-00 |
WASHER Price: $15.49 |
| 12 |
8ND-RA417-00-00 |
WASHER 6 Price: $13.99 |
| 13 |
8ND-RA183-00-00 |
BOLT, FLANGE Price: $5.49 |
| 14 |
8ND-E243M-00-00 |
SEAL, WATER PUMP Price: $7.49 |
| 15 |
8ND-E3517-00-00 |
PIN, DOWEL Price: $2.40 |
| 16 |
8ND-E240H-00-00 |
COVER ASSEMBLY Price: $72.99 |
| 17 |
8ND-E243L-00-00 |
PLUG Price: $15.49 |
| 18 |
8NV-RAB29-00-00 |
CLAMP,26 Price: $7.49 |
| 19 |
8NV-E243F-00-00 |
HOSE,3 Price: $16.99 |
| 20 |
8JP-RAB29-00-00 |
CLAMP, 26 Price: $4.15 |
| 21 |
8ND-RA184-00-00 |
BOLT, FLANGE Price: $7.99 |
| 22 |
8ND-E2413-00-00 |
COVER, THERMOSTAT Price: $112.99 |
| 23 |
8ND-E2414-00-00 |
GASKET, COVER Price: $39.99 |
