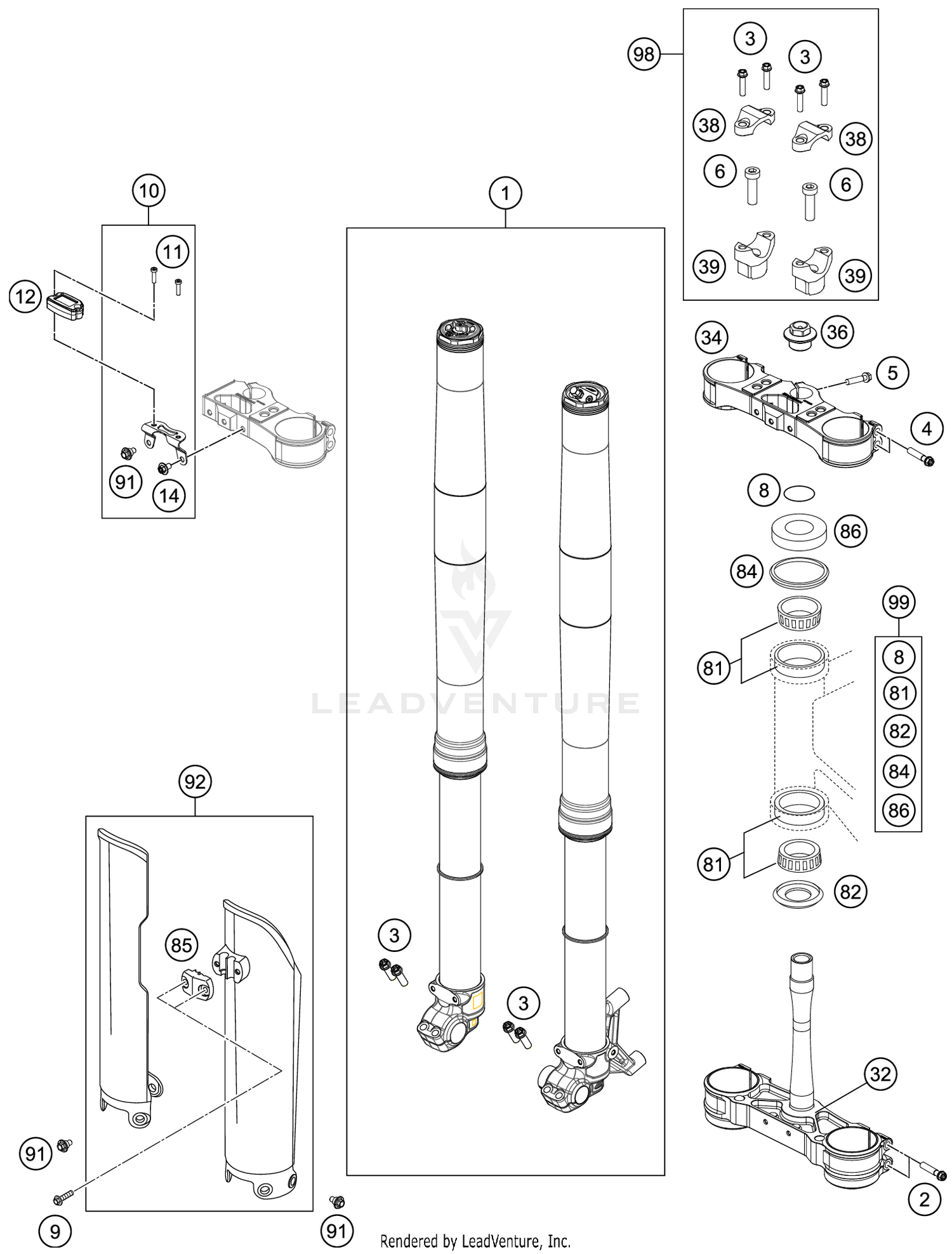

| Ref | Part Number | Description |
|---|
| 1 |
0262C108U406000 |
Fork HQV FS 450 2021 Price: $2,935.75 |
| 2 |
0025080506 |
HH collar screw M8x50 TX40 Price: $3.62 |
| 3 |
0025080256 |
HH collar screw M8x25 Price: $2.41 |
| 4 |
0025080406 |
HH COLLAR SCREW M8X40 TX40 Price: $4.83 |
| 5 |
0025080256S |
HH COLLAR SCREW M8X25 TX40 Price: $3.62 |
| 6 |
0032100356S |
AH-COLLAR SCREW M10X35 ISA45 Price: $4.99 |
| 8 |
0770025035 |
O-RING 25X3,55 NBR70 05 Price: $1.99 |
| 9 |
0017060206 |
SCREW F. PLASTIC K60X20AL SW6 Price: $3.99 |
| 10 |
78112920044 |
HOURMETER BRACKET TTV Price: $10.99 |
| 11 |
0912040163 |
AH SCREW DIN0912-M 4X16 Price: $2.99 |
| 12 |
81312920100 |
Hourmeter This part replaces 81312920050. Price: $65.99 |
| 14 |
0024060106 |
HH COLLAR SCREW M6X10 TX30 Price: $3.99 |
| 32 |
A38001032016C1 |
Bottom triple clamp cmpl. x=16ámm This part replaces 2610103201630. Price: $810.03 |
| 34 |
7890103411630 |
TOP TRIPLE CLAMP SMR X=16MM Price: $325.26 |
| 36 |
70009082000 |
AXLESCREW M20X1.5 SW17 Price: $11.10 |
| 38 |
77201038000 |
HANDLEBAR CLAMP 28MM Price: $29.47 |
| 39 |
59401039037 |
HANDLEB.SUPP. D=28MM H=37MM 05 Price: $40.14 |
| 81 |
54201081100 |
TAPERED ROLLER BEARING CPL. 06 Price: $60.05 |
| 82 |
77701084000 |
O-RING SUPPORT W. SEALING LIP Price: $22.76 |
| 84 |
54601184000 |
STEARING HEAD GASKET TOP Price: $8.35 |
| 85 |
25001085100DB |
Clamp for brakecable Price: $4.99 |
| 86 |
78101086000 |
STEERING HEAD COVER Price: $7.14 |
| 91 |
59001092050 |
SPECIAL SCREW M6X12,5 WS=8 Price: $2.99 |
| 92 |
25001094100DBG |
Fork protection kit TC/FC/TX/FX 21 WITH DECAL Price: $36.40 |
