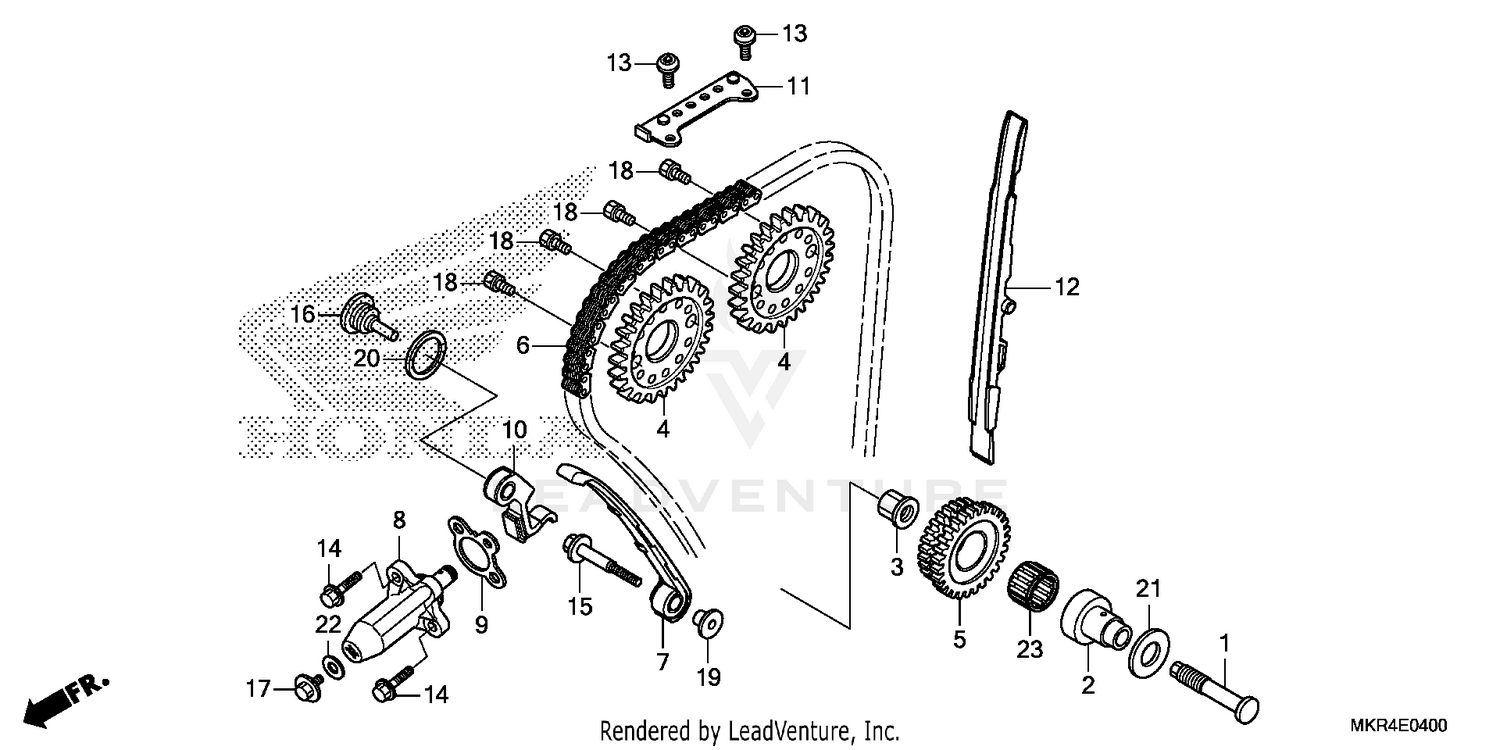

| Ref | Part Number | Description |
|---|
| 1 |
14313-MKR-D10 |
BOLT, CAM CHAIN IDLE GEAR Price: $17.05 |
| 2 |
14315-MKR-D10 |
SHAFT, CAM CHAIN IDLE GEAR Price: $41.58 |
| 3 |
14316-MKR-D10 |
NUT, FLANGE (10MM) Price: $10.62 |
| 4 |
14321-MKR-DH0 |
SPROCKET, CAM (34T) Price: $87.58 |
| 5 |
14331-MKR-D10 |
GEAR, CAM CHAIN IDLE (27T) Price: $138.93 |
| 6 |
14401-MKR-DH1 |
CHAIN, CAM (114L) Price: $139.00 |
| 7 |
14510-MKR-D10 |
TENSIONER ASSY., CAM CHAIN Price: $107.02 |
| 8 |
14520-MKR-DH1 |
LIFTER, TENSIONER Price: $120.58 |
| 9 |
14525-MFA-D01 |
GASKET, TENSIONER HOLE Price: $7.40 |
| 10 |
14530-MKR-D10 |
TENSIONER B, CAM CHAIN Price: $107.05 |
| 11 |
14546-MKR-D10 |
GUIDE B, CAM CHAIN Price: $48.40 |
| 12 |
14620-MKR-D10 |
GUIDE A, CAM CHAIN Price: $80.20 |
| 13 |
90001-K64-N00 |
BOLT, SOCKET (6X14) Price: $3.18 |
| 14 |
90022-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.65 |
| 15 |
90022-MFJ-D00 |
PIVOT, CAM CHAIN TENSIONER Price: $2.56 |
| 16 |
90023-MFL-000 |
SHAFT B, CAM CHAIN TENSIONER Price: $27.40 |
| 17 |
90025-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.45 |
| 18 |
90082-HA0-000 |
BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291) Price: $2.25 |
| 19 |
90401-MKR-D10 |
COLLAR, CAM CHAIN TENSIONER Price: $10.00 |
| 20 |
90403-MFL-000 |
WASHER, SEALING (24MM) Price: $1.64 |
| 21 |
90404-MKR-D10 |
WASHER (16.1X31X3) Price: $4.69 |
| 22 |
90442-397-000 |
WASHER, SEALING (6MM) Price: $2.58 |
