| Ref | Part Number | Description |
|---|
| 1 |
SXS06530006 |

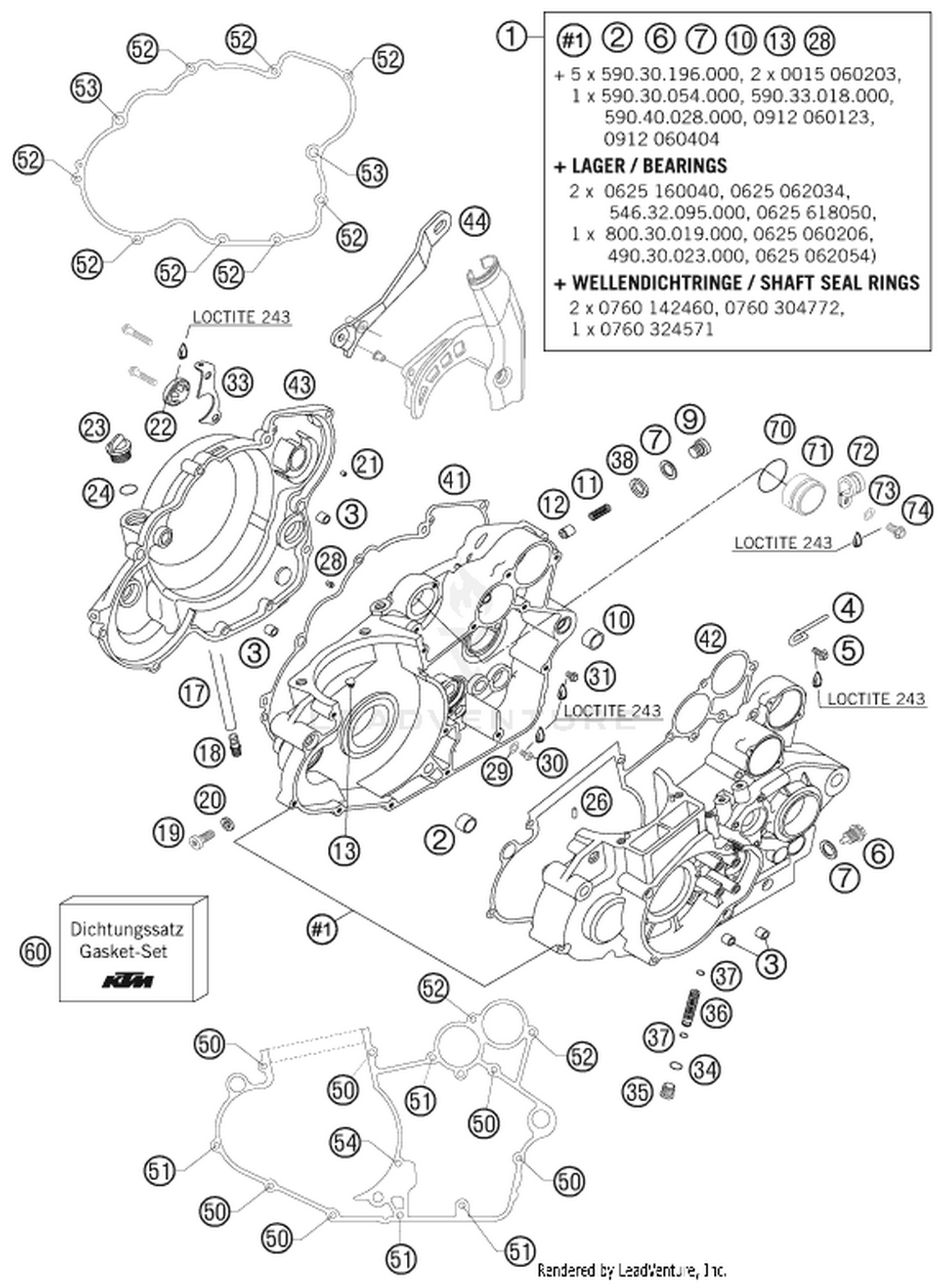

ENGINE CASE CPL. 540 SXS 06 Price: Call Us |
| 2 |
51030026100 |
DOWEL 17 X 13 X 12 Price: Call Us |
| 3 |
49030090100 |
DOWEL 9,8 X7X10 This part replaces 49030090000. Price: Call Us |
| 4 |
59030090000 |
HANGER FOR VENT HOSE Price: Call Us |
| 5 |
0024060156 |
HH collar screw M6x15 TX30 This part replaces 0014060153. Price: Call Us |
| 7 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 10 |
59030024000 |
DOWEL 17 X 19 X 12 Price: Call Us |
| 11 |
58038023300 |
PRESSURE SPRING L=25MM D=1MM Price: Call Us |
| 12 |
58038028000 |
VALVE PISTON D=10MM Price: Call Us |
| 13 |
59030054000 |
JET 60 DELLORTO M6X0,75 Price: Call Us |
| 17 |
59031050100 |
ENGINE BREATHER TUBE 00 Price: Call Us |
| 18 |
59030022100 |
BLEEDER FLANGE M12X1,5 WS=13 Price: Call Us |
| 19 |
59030080000 |
LOCATING SCREW L=24 2003 Price: Call Us |
| 20 |
58030081000 |
CU-SEAL RING 8 X 14 X 3 Price: Call Us |
| 21 |
0402025980 |
NEEDLE ROLLER DIN5402 2,5X9,8 Price: Call Us |
| 22 |
59030019200 |
OIL SIGHT GLASS This part replaces 59030019000. Price: Call Us |
| 23 |
79430020033 |
Oil filler cap cmpl. M24x3 This part replaces 58030020000. Price: Call Us |
| 24 |
0770191015 |
O-RING 19,00X3,00 NBR Price: Call Us |
| 26 |
0402040980 |
Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 28 |
59030058000 |
JET 100 BING(44-031/180) M4 Price: Call Us |
| 29 |
0125050003 |
WASHER DIN0125-A 5,3 Price: Call Us |
| 30 |
0985050083 |
FLAT HEAD SCREW DIN7985-M 5X 8 Price: Call Us |
| 31 |
0025060086 |
HH collar screw M6x8 TX30 This part replaces 0015060083. Price: Call Us |
| 33 |
59030001090 |
RET.BRACKET F.BRAKE LEVER HUB Price: Call Us |
| 34 |
0770120020 |
O-RING 12,00X2,00 NBR 70 Price: Call Us |
| 35 |
77038017000 |
SCREW PLUG This part replaces 59038014000. Price: Call Us |
| 36 |
59038015100 |
OIL SCREEN 11,8x44,5MM This part replaces 59038015000. Price: Call Us |
| 37 |
07700900151 |
O-RING 9x1,5 V80 SH This part replaces 0770090015. Price: Call Us |
| 38 |
0603121830 |
SEAL RING DIN7603 12X18X3 Price: Call Us |
| 41 |
59030025200 |
CLUTCH COVER GASKET This part replaces 59030025100. Price: Call Us |
| 42 |
59030039200 |
ENGINE CASE GASKET Price: Call Us |
| 43 |
59030001100 |
CLUTCH COVER RACING 2006 Price: Call Us |
| 44 |
59030047100 |
CHAIN DAMPING PLATE RAC. 2005 Price: Call Us |
| 50 |
0025060456 |
HH COLLAR SCREW M6X45 TX30 This part replaces 0015060453. Price: Call Us |
| 51 |
0025060606 |
HH collar screw M6x60 TX30 This part replaces 0015060603. Price: Call Us |
| 52 |
0025060306 |
HH collar screw M6x30 TX30 This part replaces 0015060303. Price: Call Us |
| 53 |
0025060356 |
HH collar screw M6x35 TX30 This part replaces 0015060353. Price: Call Us |
| 54 |
0025060756 |
HH COLLAR SCREW M6X75 TX30 This part replaces 0015060753. Price: Call Us |
| 70 |
0770250030 |
O-RING 25,00X3,00 NBR 70 Price: Call Us |
| 71 |
59040034000 |
CAP COVER Price: Call Us |
| 72 |
59007439000 |
CLAMP RSGU 18/15 03 Price: Call Us |
| 73 |
0125060003 |
WASHER DIN0125-A 6,4 Price: Call Us |
