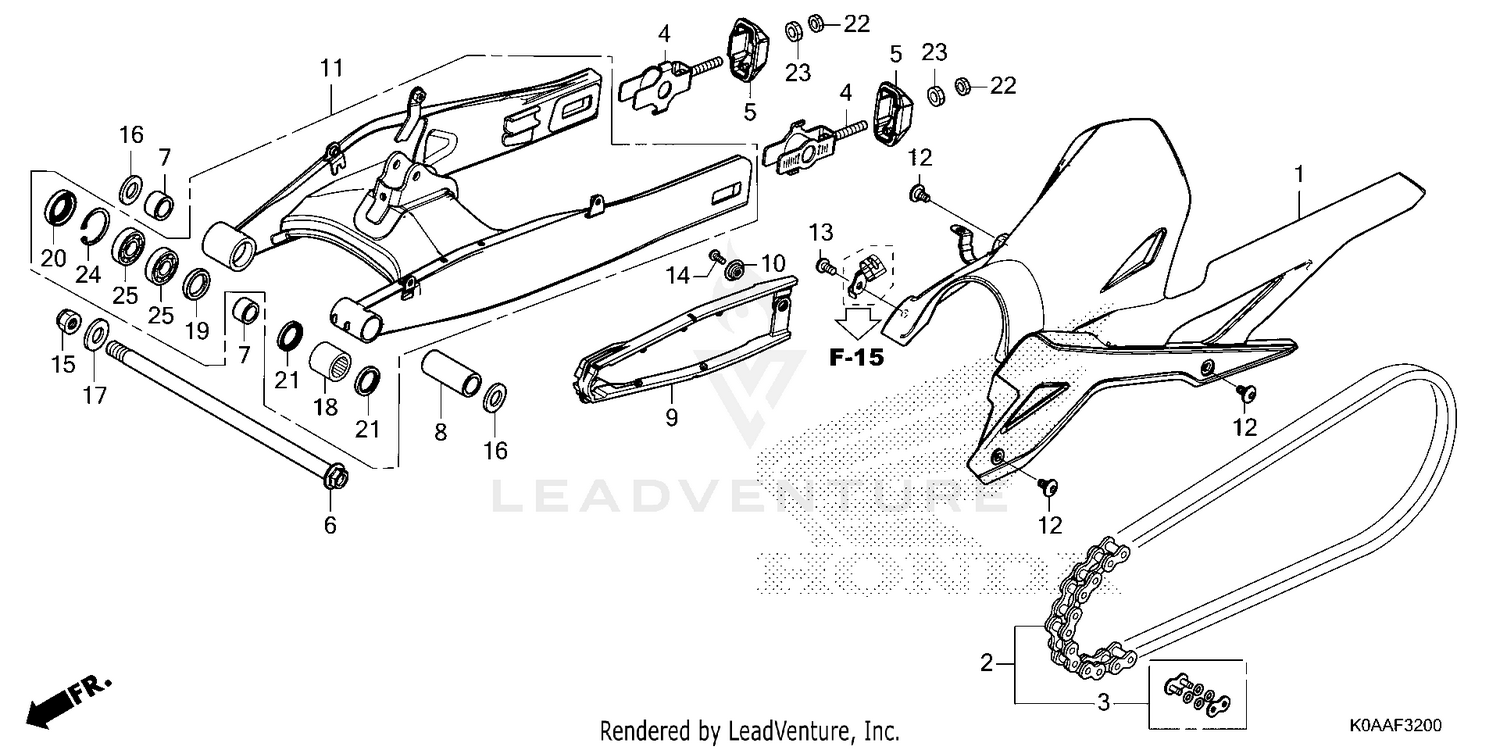

| Ref | Part Number | Description |
|---|
| 1 |
40510-K0A-DB0 |
CASE, DRIVE CHAIN Price: $4.84 |
| 2 |
40540-K0A-EB1 |
CHAIN, DRIVE Price: $127.22 |
| 3 |
40545-KYJ-902 |
MASTER LINK (DAIDO) Price: $17.51 |
| 4 |
40543-K94-T00 |
ADJUSTER, CHAIN Price: $11.98 |
| 5 |
40546-K94-T00 |
CAP, SWINGARM END Price: $10.44 |
| 6 |
52101-K94-T00 |
BOLT, SWINGARM PIVOT Price: $19.65 |
| 7 |
52105-K94-T00 |
COLLAR, R. SWINGARM PIVOT Price: $7.44 |
| 8 |
52106-K94-T00 |
COLLAR, L. SWINGARM PIVOT Price: $18.06 |
| 9 |
52170-K0A-D10 |
SLIDER, CHAIN Price: $25.24 |
| 10 |
52171-MAN-620 |
WASHER, CHAIN SLIDER Price: $3.67 |
| 11 |
52200-K0A-DB0 |
SWINGARM SUB, RR. Price: $458.25 |
| 12 |
90106-K26-900 |
SCREW, PAN (6X12) Price: $0.60 |
| 13 |
90106-MAV-000 |
SCREW, PAN (6X12) Price: $2.49 |
| 14 |
90104-KPP-900 |
SCREW, PAN (5X12) Price: $0.95 |
| 15 |
90305-GGZ-J01 |
NUT, U (14MM) Price: $3.22 |
| 16 |
90501-K94-T00 |
WASHER (15X25X2.3) Price: $1.49 |
| 17 |
90502-K64-N00 |
WASHER (14X28X2.6) Price: $1.31 |
| 18 |
91071-MJ0-004 |
BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003. Price: $44.65 |
| 19 |
91205-965-003 |
OIL SEAL (22X31X5) (ARAI) Price: $7.29 |
| 20 |
91213-MB2-003 |
DUST SEAL (22X35X7) (ARAI) Price: $9.36 |
| 21 |
91283-ML7-003 |
DUST SEAL (22X29X4) (ARAI) Price: $7.44 |
| 22 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 23 |
94031-08000 |
NUT, HEX. (8MM) NUT, FLANGE (10MM) Price: $1.12 |
| 24 |
94520-35000 |
CIRCLIP (INNER) (35MM) Price: $2.03 |
